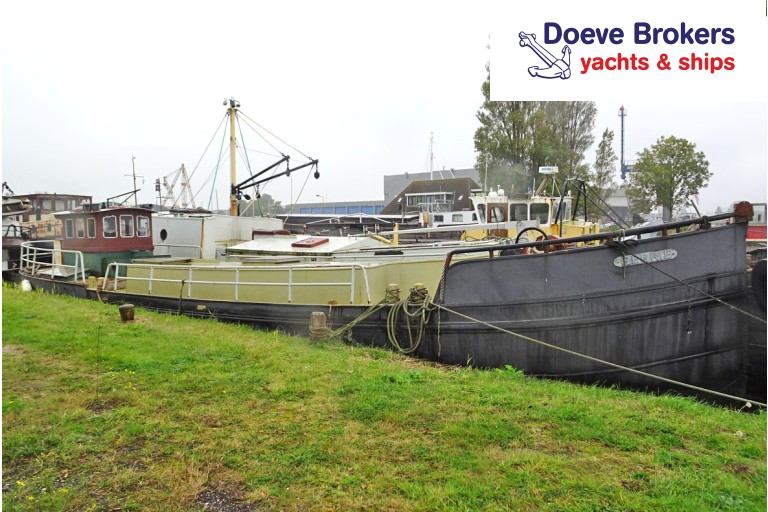

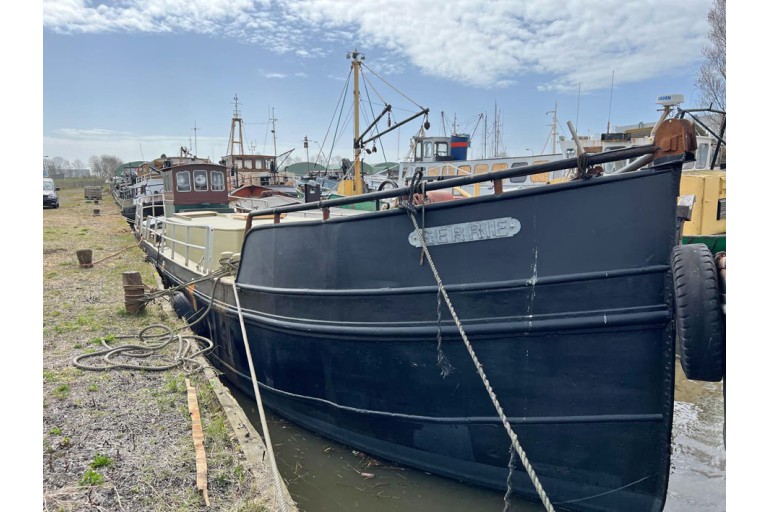

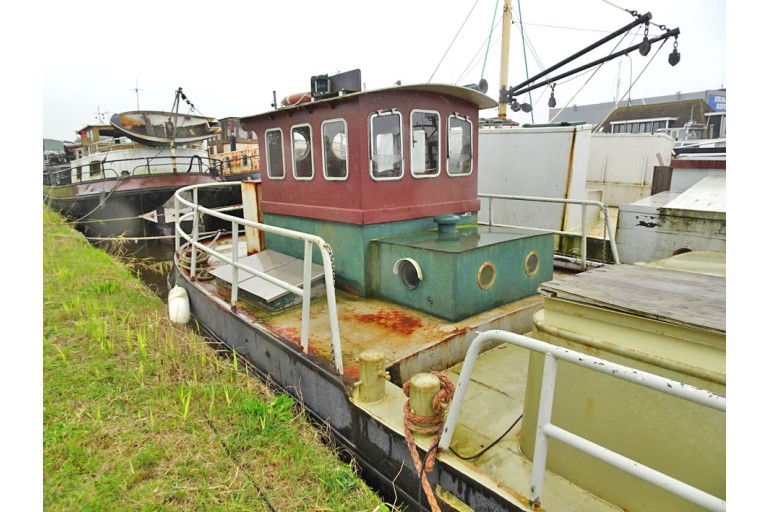

Dutch Barge Katwijker 19.95, Gerrie
Dimensions (m):
19.95 x 4.85 x 0.80
Ref. no.:
241008
Mooring:
Near Harlingen, Netherlands
Construction year:
1904
Material:
steel
Price:
€ 32.500,--
margin scheme
Vision Doeve Brokers

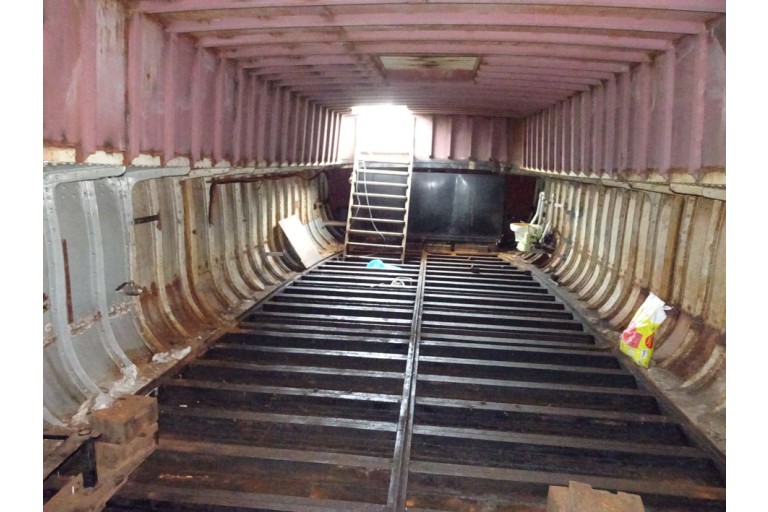

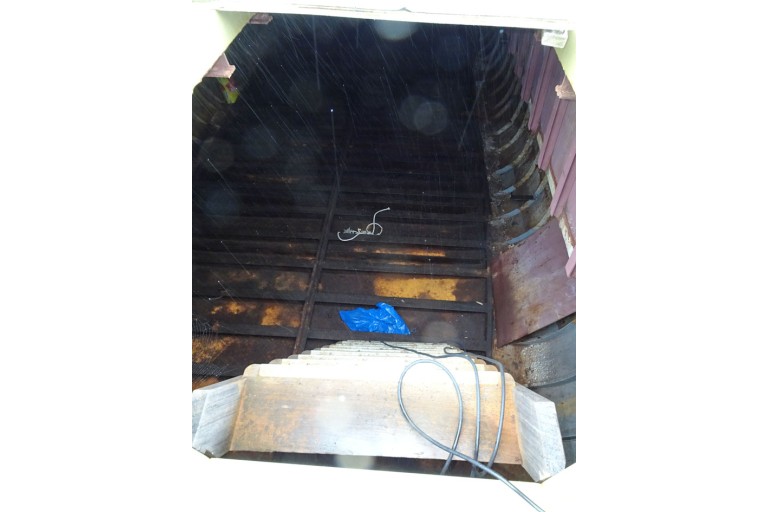

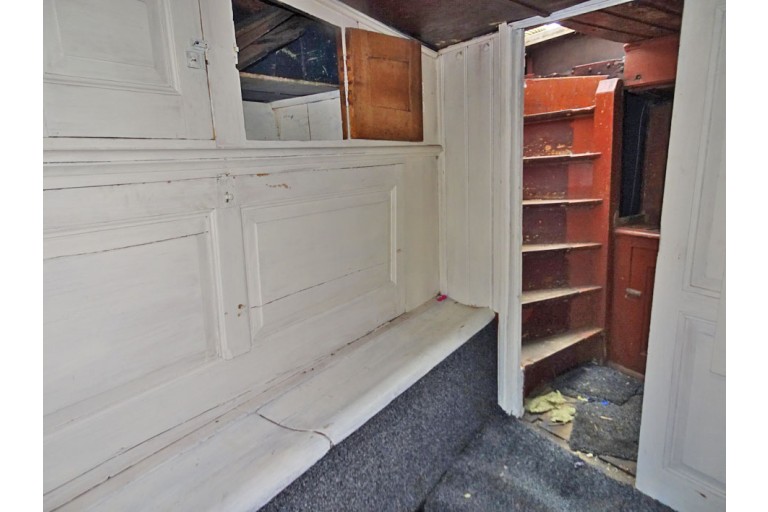

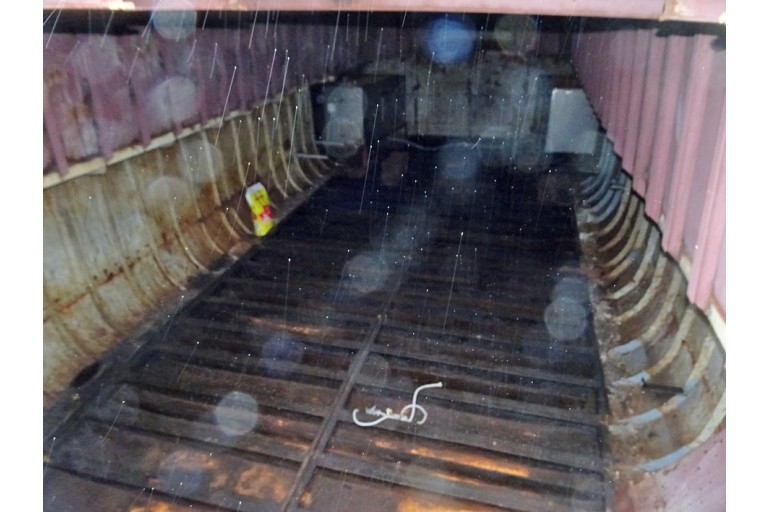

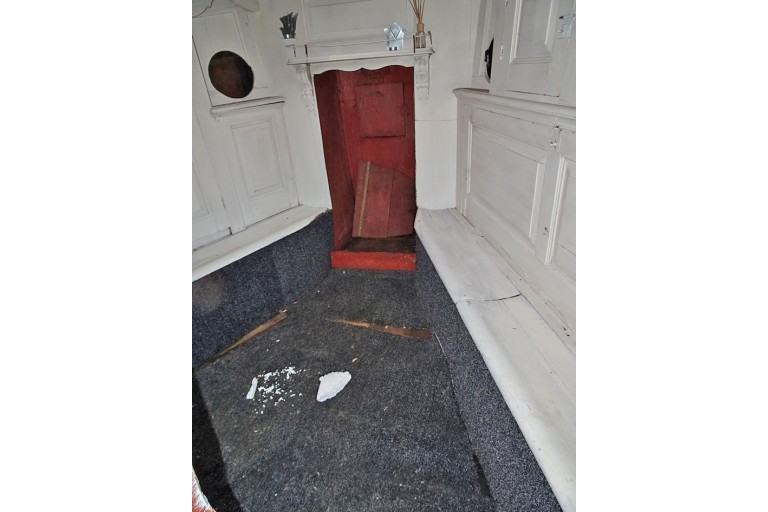

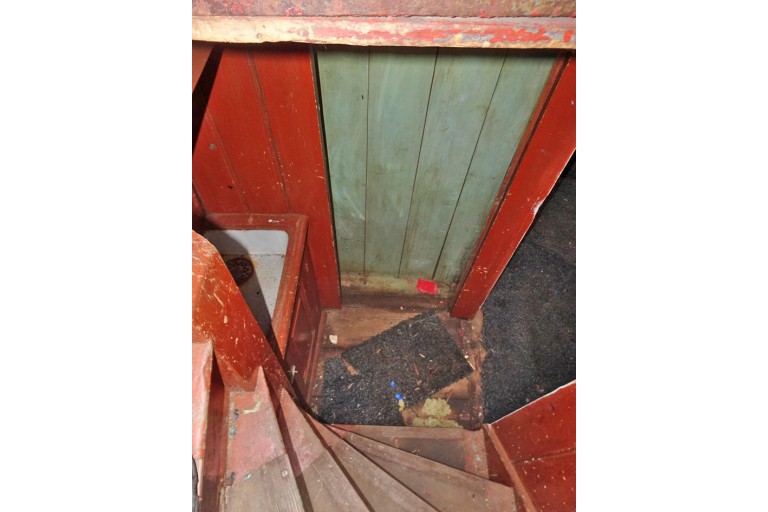

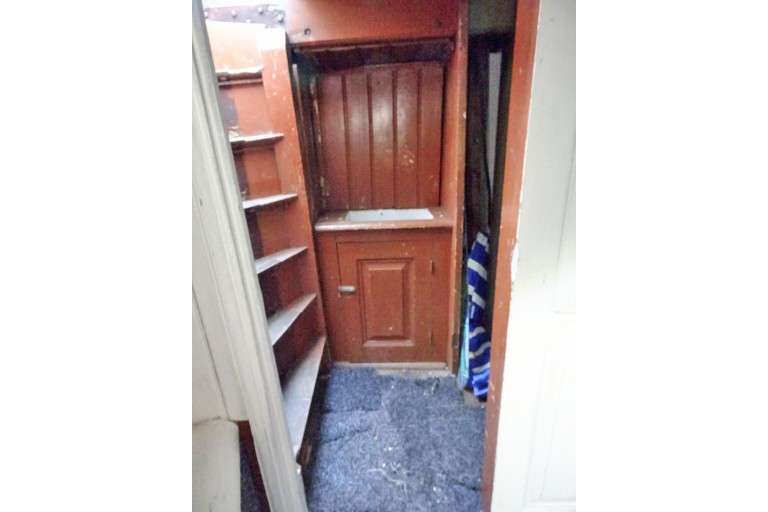

Former inland waterway cargo vessel, which has been active as a line service. Ultimately, this potential Live Aboard Dutch Barge was converted and deployed as a sports fishing vessel. The current owner shortened the Vessel so that she does not have to meet the certification requirements. This also resulted in a nice length/width ratio. The hold is empty and the aft cabin is a technical space, with some of the old paneling still in place. The large forecastle still has the old accommodation. This Dutch Barge is certainly a big job, but the seller can take a lot of work out of your hands at his shipyard.
More information
General information
| Yard: | Shipyard A. Pannevis, NL-Alphen aan de Rijn |
| Hull shape: | flatbottom |
| Hull material: | iron/steel |
| Deck material: | iron/steel |

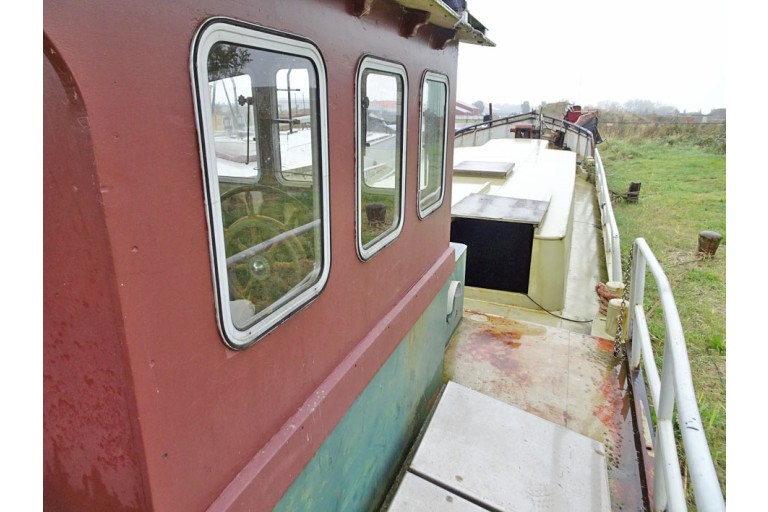

| Superstructure material: | steel (2024) wooden wheelhouse |
| Construction method: | riveted new steel is welded rubbing strake bulwark |

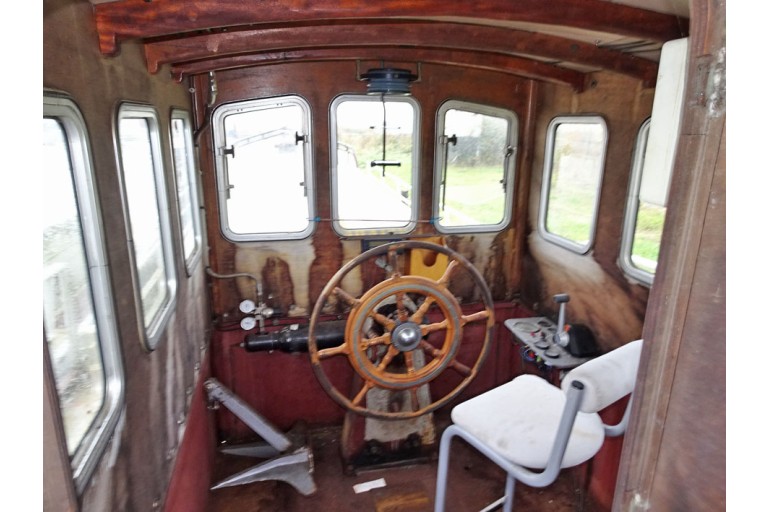

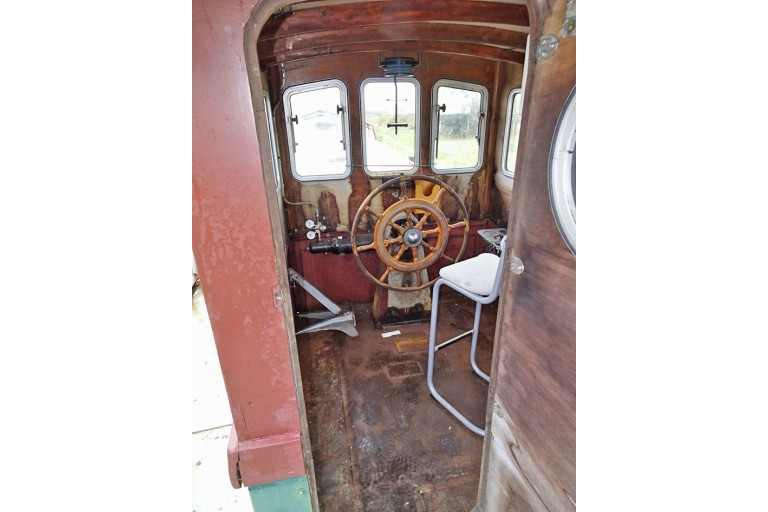

| Steering system: | mechanical wheel |
| Displacement (approx.): | 15 metric tons estimated |
| Airdraft (approx.): | 3,20 m everything down |
| Owner: | Dutch owner |
| Colour / Paint System: | see photographs last underwatership treatment 2023 |
| Certificates: | no certificate requirement |
| Suitable for / as: | inland waterways recreational vessel suitable as a year round live- aboard |
| General information: | Old age clause applicable. offered in the condition that she is in The seller has actually never used the vessel himself. Any transactions must be submitted to the client or owner of the vessel for approval. Until this approval has been granted, all offers made are entirely without obligation. |
Technical information

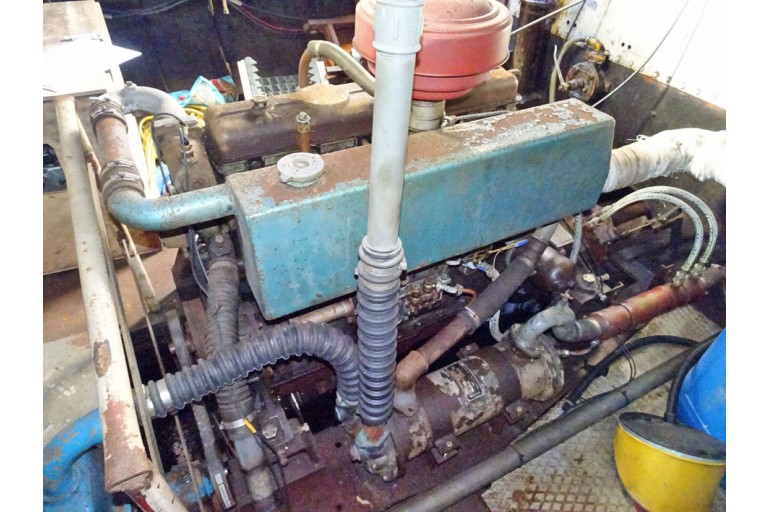

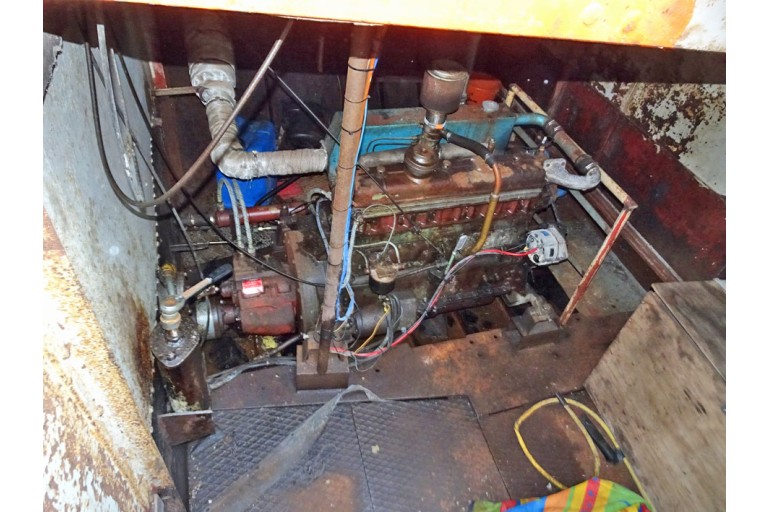

| Enginepower: | 105 Hp 77 kW |
| Engine brand: | DAF |
| Engine model: | 575 |
| Construction year engine: | 1965 |
| Fuel: | diesel |
| Fuel tank (approx.): | 1 steel tank(s) |
| Cooling system: | intercooling dry exhaust |
| Propulsion: | 3 blade propeller greased lubrication of propeller shaft |
| Gearbox: | PRM hydraulic |
| Batteries: | 2x starter batterie(s) |

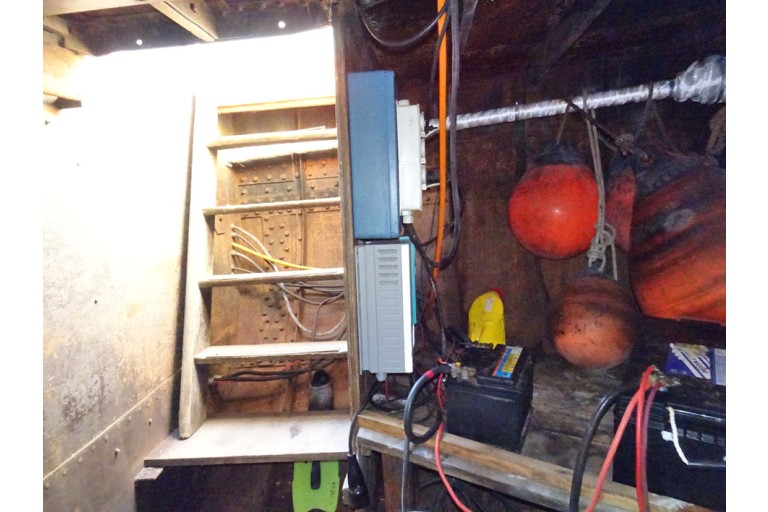

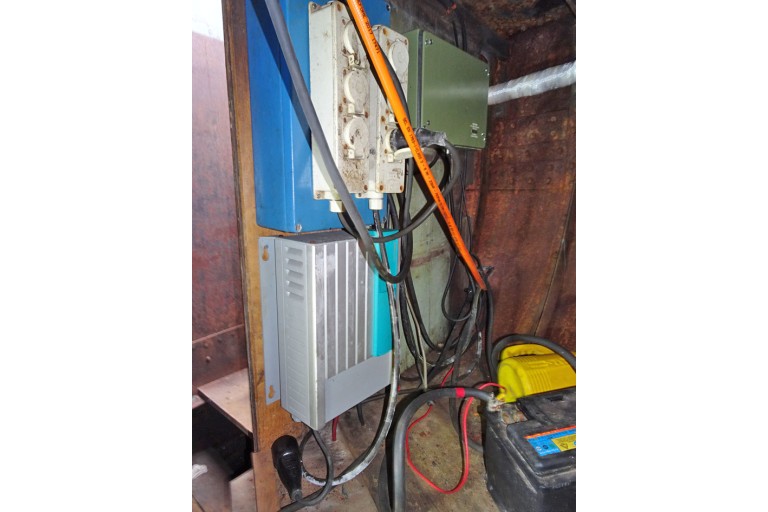

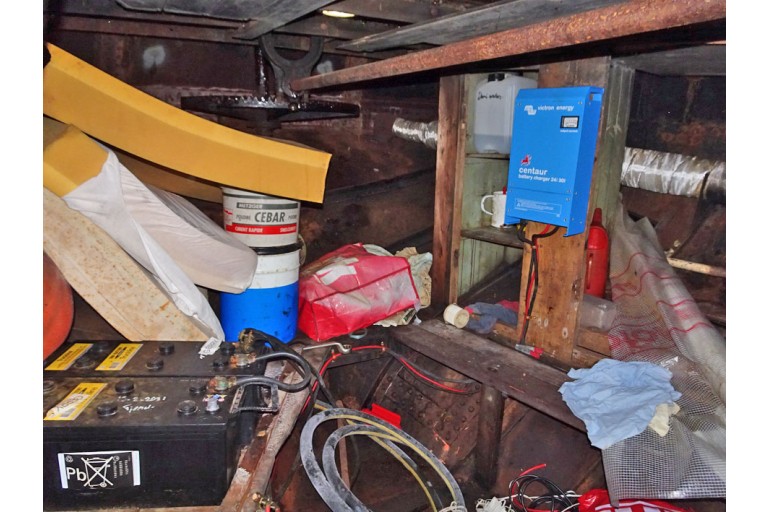

| Battery charger: | Victron Centaur battery charger 24/30 |

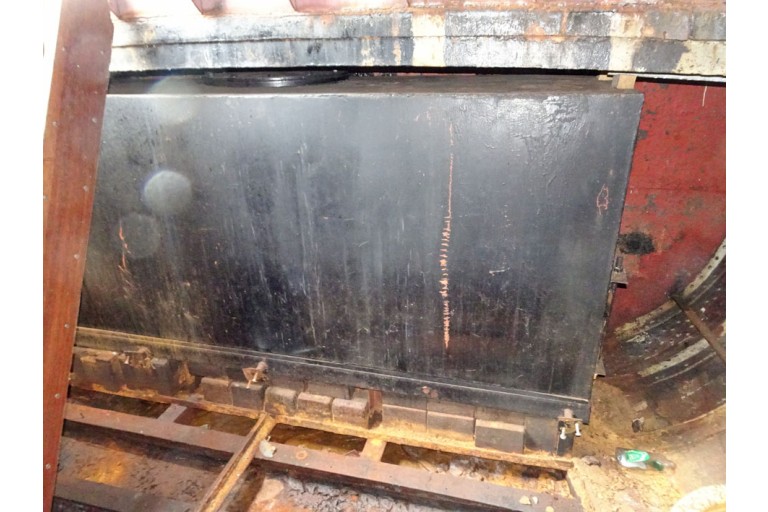

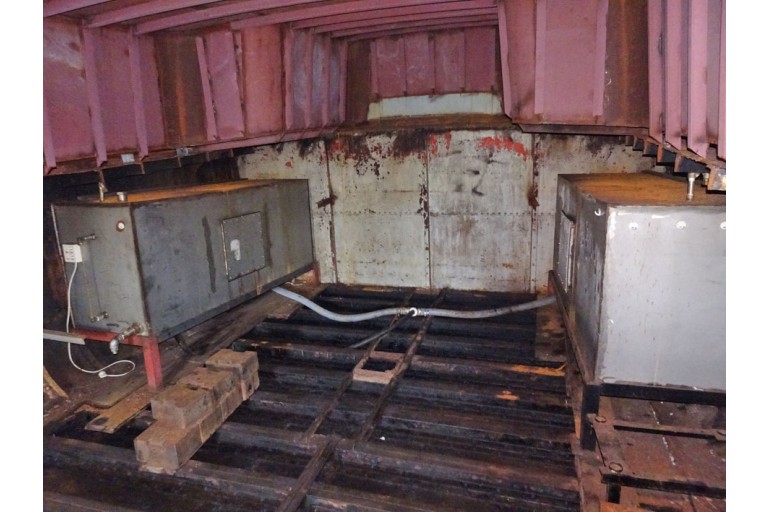

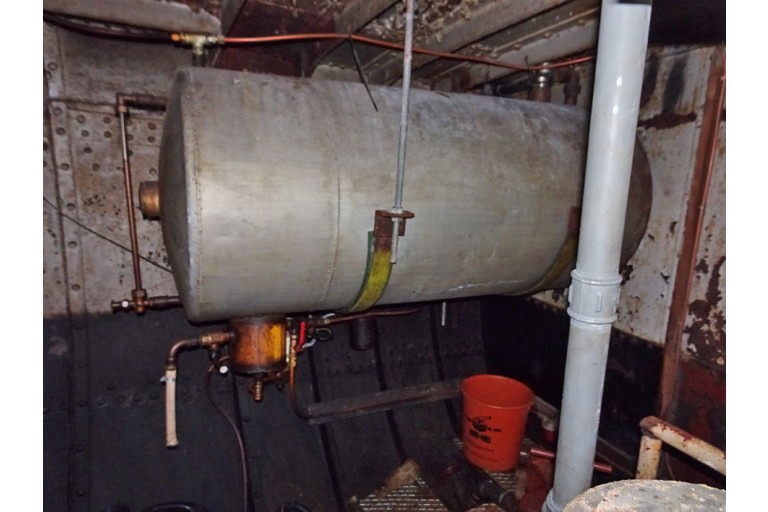

| Fresh water tank (approx.): | 2x 1100 litre stainless steel tank(s) 1x 2000 litre steel tank(s) |
Equipment

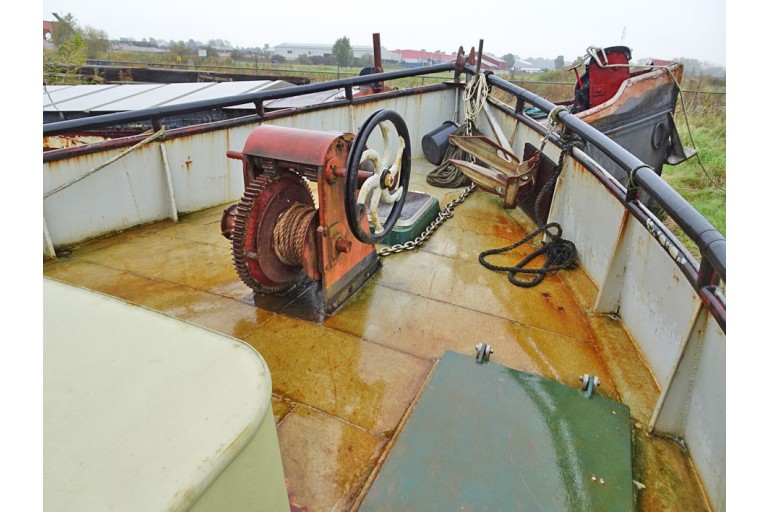

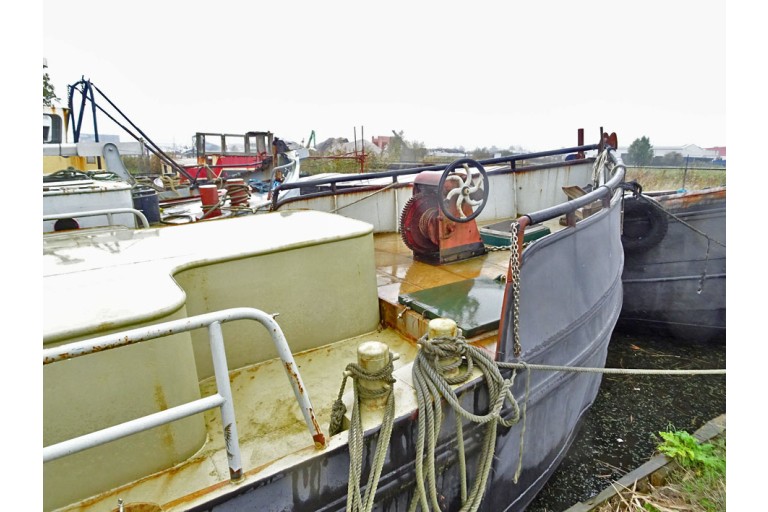

| Anchor equipment: | manual anchor winch chain anchor line anchor |

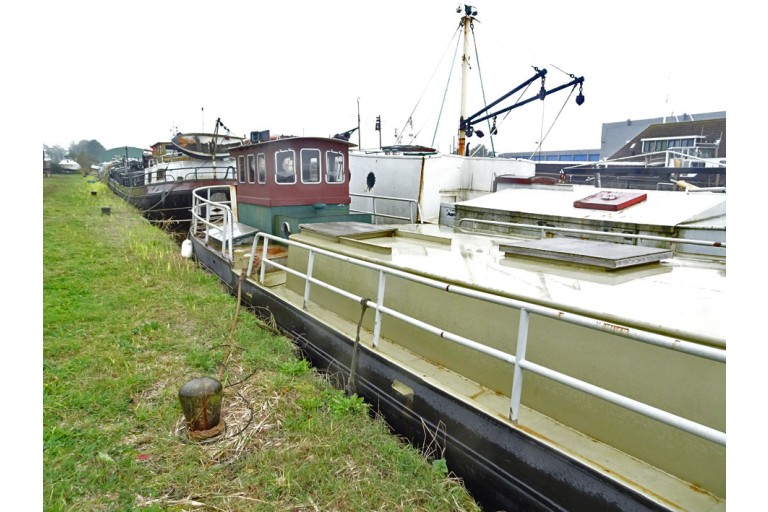

| Searail / Pulpit: | searail on bulwark |

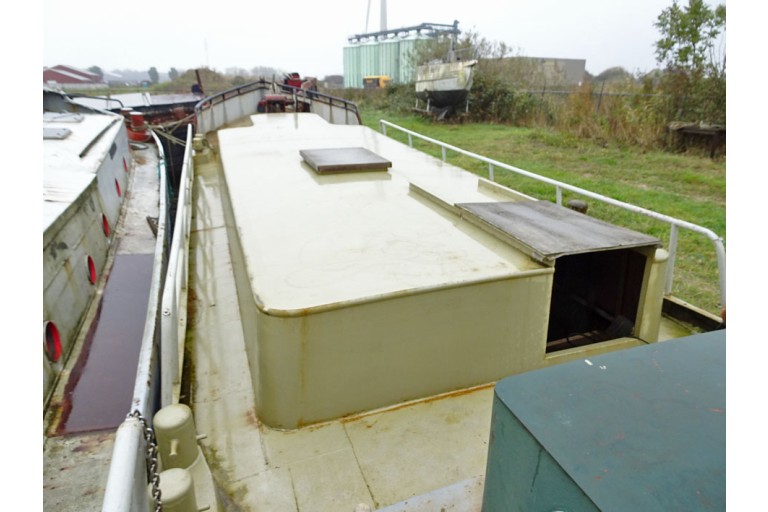

| Additional information: | Interesting project to finish for someone with two right hands or to have it done by a yard. hard wooden skylight |
