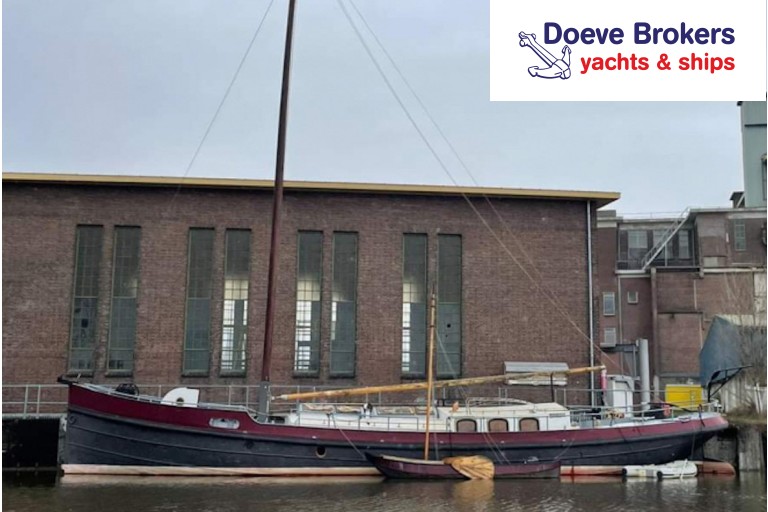

Dutch Barge Katwijker 22.25 with ES-TRIN certificate

Dimensions (m): 22.25 x 4.82 x 1.45
Ref. no.: 250307
Mooring: Near Breda, Netherlands
Construction year: 1906
Material: steel
Price: € 59.000,--
VAT not applicable

Download PDF folder

Contact us

Vision Doeve Brokers

A beautiful cargo ship of the type Katwijker, that was once used for transporting goods. The old interior has been completely removed. A ship like this deserves a new life as a live aboard, a recreational vessel or perhaps as a workshop, but with preservation of her character. The current owner is active in inland shipping and very experienced in ship repairs. He has already carried out a lot of work. Much of the steelwork has been professionally restored and the ship has already been partly insulated with 20 cm of rock wool. This project has so far been approached with care, focusing on comfort and sustainability. Six water tanks are ready to be installed. The double glazing for the six windows is already available. The engine, currently being overhauled, will be delivered in working condition. The seller will not complete the project due to personal circumstances but a solid foundation has been laid. This is a project for an enthusiast who wants to finish the ship with an eye for quality and tradition. A unique opportunity to complete a piece of history with a forward-looking vision, according to one's own design.

More information

General information

Yard: Shipyard NL-Krimpen aan den IJssel
Hull shape: flatbottom
Hull material: iron/steel
Deck material: steel
Superstructure material: steel
Construction method: riveted
new steel is welded
open cockpit
rubbing strake around
bulwark around
bollards
3 watertight bulkhead(s)
1 watertight door(s)
Steering system: tiller
hardwooden rudder
attached rudder
Windows: bronze portholes
steel window frames
Displacement (approx.): displacement 67,844 m³
Ballast (approx.): trim ballast
steel
Owner: Dutch owner
Registration: Dutch registered
B-registered
Costs for the change of ownership and / eventually deletion are for purchasers amount.
Colour / Paint System: black hull
bordeaux red bulwark
white superstructure
last underwatership treatment 05-2022
Certificates: inland waterways certificated (TRIWV / ES-TRIN)
zone 2 Netherlands
zone 3
zone 4
Waal, Lek & NL Rhine
valid until: 12-2025
Suitable for / as: recreational vessel
suitable as a year round live- aboard
General information: offered in the condition that she is in
not finished project
Old age clause applicable.
Additional information: classic sailing yacht
classic lines
beautiful sheer
Much of the equipment listed is present but not yet installed.
Great vessel for cruising on the European canals and rivers.
Great vessel for cruising on the French canals and rivers.

Technical information

Enginepower: 95 Hp
69 kW
Engine brand: GM Detroit
Engine model: 471 N
Number of cylinders: 4
Overhaul engine: reconditioned in uitvoering / in progress / im Gange / en cours
Fuel: diesel
Fuel tank (approx.): 1x 500 litre
steel tank(s) &
1x 500 litre
steel tank(s), not in use
Cooling system: intercooling
dry exhaust
Propulsion: 3 blade propeller
greased lubrication of propeller shaft
Gearbox: Twin Disc MG-506 hydraulic
reduction/ratio 1,20:1
Fresh water tank (approx.): 6x 400 litre
plastic tank(s)
Additional information: spare propeller

Accommodation

Insulation: partly
20 cm Rockwool
Headroom (approx.): forward (approx.) 2,00 m
midships (approx.) 1,77 / 1,89 m &
midships (approx.) 2,37 / 2,52 m

Navigation equipment

Navigation equipment: True Heading Carbon Pro Automatic Identification System (AIS)
Standard Horizon Explorer VHF with DSC
navigation lights
blue board
most of it is not yet re installed

Rigging and sails

Rigging type: not rigged
Mast: wooden mast
Lowerable: yes
spreader
Boom: wooden boom
Gaff: pine
Additional information: galvanized steel standing rigging

Equipment

Anchor equipment: manual anchor winch
2x warping drum
Klipp anchor
in hawse-hole
anchor chain
Boarding ladder: aluminium
Searail / Pulpit: searail on bulwark
grab rail
Dinghy: inflatable dinghy
Davits: steel
manual winch
Safety: fire extinguishers
life buoys
life jackets
according to the certification requirements
