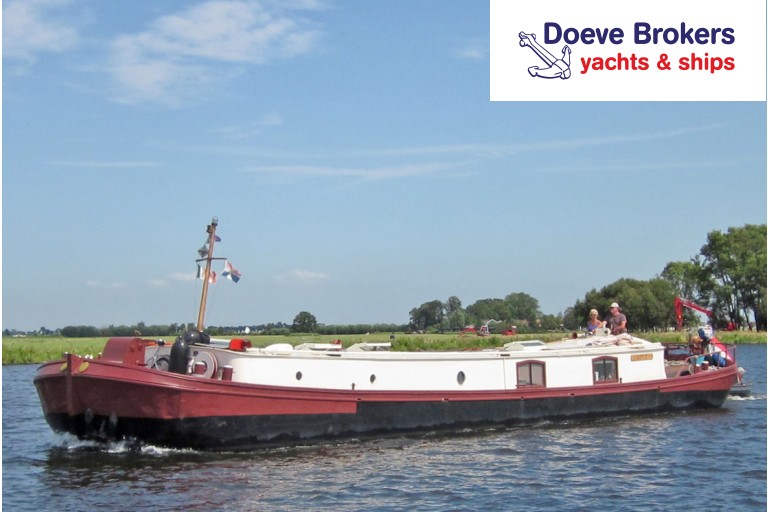

Dutch Barge 19.98
Dimensions (m):
19.98 x 4.14 x 0.80
Ref. no.:
240504
Mooring:
Near Medemblik, Netherlands
Construction year:
1914
Material:
steel
Price:
€ 99.500,--
VAT not applicable
Vision Doeve Brokers
Former inland cargo ship that has been completely redesigned into a sailing live aboard / houseboat. The ship is completely self-supporting and equipped for a long stay on board. There are, among other things, 4 solar panels, a generator, a water purification plant, a central heating system and a pellet stove on board. At the front there is a large bedroom with a double bed. Followed by a bathroom with shower cabin. Then the galley and a spacious salon. Adjustments have been made to the transom and the stern beam, making the ship shorter and therefore no longer requiring a certificate.
More information
General information
Yard:
Shipyard W. Mulder, NL-Stadskanaal
Hull shape:
flatbottom
Hull material:
iron/steel
Deck material:
steel
Superstructure material:
steel
Construction method:
riveted
new steel is welded
bulwark around
rubbing strake
saddleback roof
new steel is welded
bulwark around
rubbing strake
saddleback roof
Steering system:
hydraulic
wheel
steel rudder
attached rudder
wheel
steel rudder
attached rudder
Windows:
steel window frames
Displacement (approx.):
displacement
58,827 metric tons
58,827 metric tons
Airdraft (approx.):
2,15 m everything down
Owner:
Dutch owner
Registration:
Dutch registered
B-registered
Costs for the change of ownership and / eventually deletion are for purchasers amount.
B-registered
Costs for the change of ownership and / eventually deletion are for purchasers amount.
Colour / Paint System:
red / brown hull
red / brown bulwark
white superstructure
last underwatership treatment 03-2021
red / brown bulwark
white superstructure
last underwatership treatment 03-2021
Certificates:
no certificate requirement
Suitable for / as:
inland waterways
suitable as a year round live- aboard &
recreational vessel
suitable as a year round live- aboard &
recreational vessel
General information:
Old age clause applicable.
Additional information:
Hull shape is suitable for drying out.
classic lines
forepeak with chain locker
roomy foredeck
spacious aftdeck
Great vessel for cruising on the European canals and rivers.
Great vessel for cruising on the French canals and rivers.
classic lines
forepeak with chain locker
roomy foredeck
spacious aftdeck
Great vessel for cruising on the European canals and rivers.
Great vessel for cruising on the French canals and rivers.
Technical information
Enginepower:
85 Hp
62 kW
62 kW
Engine brand:
DAF
Revolutions:
2400 RPM
Engine model:
475
Number of cylinders:
6
Running hours (approx.):
2950 on the hour counter
Fuel:
diesel
Fuel tank (approx.):
1x 1000 litre
aluminium tank(s)
1x 200 litre
stainless steel tank(s)
aluminium tank(s)
1x 200 litre
stainless steel tank(s)
Cooling system:
closed
cooling pipes
dry exhaust
cooling pipes
dry exhaust
Propulsion:
3 blade propeller
greased lubrication of propeller shaft
greased lubrication of propeller shaft
Gearbox:
PRM hydraulic
Heating:
ACV central heating
on diesel
not connected
& Haigo pelletstove
on diesel
not connected
& Haigo pelletstove
Bow thruster:
electric bow thruster
10 Hp
10 Hp
Electricity system:
12 / 24 / 230 / 400 Volt
230 Volt shore power connection
& 400 Volt shore power connection
230 Volt shore power connection
& 400 Volt shore power connection
Batteries:
12x 75 Ah domestic batterie(s) (Optima blue top)
4x 90 Ah starter batterie(s) &
bow thruster batterie(s)
4x 90 Ah starter batterie(s) &
bow thruster batterie(s)
Battery charger:
present
Earth-leakage breaker:
present
Genny:
Mitsubishi S4 diesel genny (2012)
15 kVA 230 Volt
1500 RPM
15 kVA 230 Volt
1500 RPM
Inverter:
Victron Phoenix inverter 24/3000
Victron Phoenix inverter 24/800
Victron Phoenix inverter 24/800
Solar panels:
4x solar panel
Steca Solarix PRS 3030 & Phocos charge controller
Steca Solarix PRS 3030 & Phocos charge controller
Fresh water tank (approx.):
1x 80 litre
plastic tank(s)
1x 20 litre
stainless steel tank(s)
plastic tank(s)
1x 20 litre
stainless steel tank(s)
Water pressure system:
hydrophore pump
Fresh water filter system:
Wyckomar UV-250 system to make drinking water out of fresh river or canal water
Hot water system:
Rinnai geyser (gas heater)
Holding tank (approx.):
1x 300 litre
Bilge pump:
2x electric pump
Deck wash pump:
present
Gas system:
yes, bottle(s) in bottle box on deck (LPG)
not according to the present requirements
not according to the present requirements
Additional information:
air compressor
Accommodation
Interior:
Plywood
oak floor(s)
pine finish
oak floor(s)
pine finish
Cabins:
1 cabin
Berth:
owners cabin: 1x 2-pers
Lay-out plan (not to scale):
see attachment
Bathroom:
shower cubicle
thermostat tap
partly tiled
in 1 area together with the toilet
thermostat tap
partly tiled
in 1 area together with the toilet
Toilet / Heads:
electric toilet in bathroom
Galley:
L-shape galley
Cooker:
4-burner hob
on gas (LPG)
stainless steel
on gas (LPG)
stainless steel
Oven:
microwave/oven
Fridge / Refrigerator:
present
24 Volt
combination with freezer
24 Volt
combination with freezer
Freezer:
ice compartment
Worktop:
wooden worktop
Washbasin:
stainless steel sink
Water tap:
mixer tap with hot & cold running water
Entertainment:
flatscreen TV
DAB+ radio
DAB+ radio
Headroom (approx.):
salon (approx.) 1,94 m / 1,88 m
galley (approx.) 1,85 m
bathroom / toilet (approx.) 1,87 m
cabin (approx) 1,89 m
galley (approx.) 1,85 m
bathroom / toilet (approx.) 1,87 m
cabin (approx) 1,89 m
Additional information:
washing machine
tumble dryer
tumble dryer
Rigging and sails
Mast:
wooden mast
lantern mast
lantern mast
Lowerable:
yes
manual
manual
Equipment
Anchor equipment:
manual anchor winch with electric motor
Spek anchor
anchor chain
in hawse-hole
Spek anchor
anchor chain
in hawse-hole
Searail / Pulpit:
guardrail around aftdeck
& grab rail
& grab rail
Safety:
3x fire extinguisher
Additional information:
hydraulic steel crane
aluminium gangway
3x skylight
aluminium gangway
3x skylight
