Motorklipper 24.98 with TRIWV No longer available
Dimensions (m):
24.98 x 4.80 x 1.10
Ref. no.:
190602
Mooring:
Near Reims, France
Construction year:
1898
Material:
steel
Vision Doeve Brokers

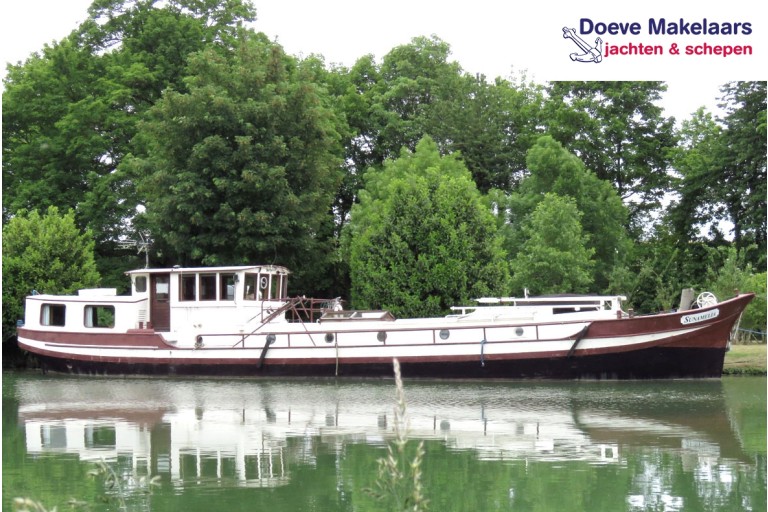

Former inland cargo vessel that has been converted into a Sailing Live Aboard. The ship is spacious and from the wheelhouse there is a great visibility all around. From front to back, the ship has the following layout: cabin without furniture, bathroom with shower, sink and toilet. From the cabin in the front you enter the spacious salon with open galley. The skylight and windows let in a lot of light, making the ship spacious and light. The wheelhouse with side doors follows from the salon. From the wheelhouse you enter the aft cabin with a large French bed and a lot of space. A toilet and sink are also installed there. The ship is very suitable for living on board and for sailing on the European canals.
More information
General information
| Yard: | unknown |
| Rebuilt year: | 1995 |
| Hull shape: | flatbottom |
| Hull material: | iron/steel |
| Deck material: | iron/steel |
| Superstructure material: | steel |
| Construction method: | riveted welded superstructure deckhouse wide side decks (gunnels) closed bollard cabinets 2 watertight bulkhead(s) rubbing strake around |
| Steering system: | hydraulic wheel steel rudder |
| Windows: | aluminium windows frames bronze portholes 2x hardwooden door |
| Displacement (approx.): | 90 m3 |
| Ballast (approx.): | steel |
| Airdraft (approx.): | 3,40 m everything down |
| Owner: | French owner |
| Registration: | Dutch registered B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |
| Colour / Paint System: | black hull brown bulwark white superstructure some overdue maintenance last underwatership treatment 2013 |
| Certificates: | inland waterways certificated (TRIWV / ES-TRIN) zone 2 Netherlands zone 3 zone 4 Waal, Lek & NL Rhine valid until: 10-2020 |
| Suitable for / as: | suitable as a year round live- aboard recreational vessel inland waterways |
| General information: | For sale because of the age of the seller. |
| Additional information: | Hull shape is suitable for drying out. roomy foredeck forepeak with chain locker Great vessel for cruising on the French canals and rivers. Great vessel for cruising on the European canals and rivers. |
Technical information
| Enginepower: | 140 Hp 103 kW |
| Engine brand: | DAF |
| Revolutions: | 2100 RPM |
| Engine model: | 615 |
| Number of cylinders: | 6 |
| Construction year engine: | unknown |
| Running hours (approx.): | 1800 |
| Fuel: | diesel |
| Fuel tank (approx.): | 1100 litre white 1500 litre red 2x steel tank(s) |
| Cooling system: | heat exchanger wet exhaust |
| Propulsion: | 3 blade propeller greased lubrication of propeller shaft |
| Gearbox: | Reintjes mechanical |
| Speed (approx.): | 6-8 km/hour cruising speed at 1000 RPM 14 km/hour top speed |
| Heating: | Gulval central heating on diesel radiators |
| Engine instruments: | present |
| Bow thruster: | hydraulic bow thruster 16 Hp |
| Electricity system: | 12 / 24 / 230 / 400 Volt 230 Volt shore power connection |
| Batteries: | 2x 200 Ah starter batterie(s) 2x 250 Ah domestic batterie(s) 1x 180 Ah starter batterie(s) generator |
| Battery charger: | Mastervolt Mass battery charger 24/75 Miocar WLGN 30/100 battery charger 6/12/24 Volt / 1-20 Ampère |
| Battery isolator: | present |
| Earth-leakage breaker: | present |
| Genny: | Ford diesel 31 kVA 230 / 400 Volt 1500 RPM 80 Hp |
| Inverter: | Mastervolt Mass inverter 24/3500 |
| Fresh water tank (approx.): | 1000 litre 1 plastic tank(s) |
| Water pressure system: | hydrophore pump |
| Fresh water filter system: | system to make drinking water out of fresh river or canal water |
| Hot water system: | Electric flow heater (230 Volt) |
| Holding tank (approx.): | not present, enough space to build-in |
| Diesel waterseparator: | present |
| Bilge pump: | 2x electric pump 24 Volt |
| Deck wash pump: | electric pump 230 Volt |
Accommodation
| Interior: | various materials have been used see photographs |
| Insulation: | aluminum bubble wrap Rockwool |
| Cabins: | 2 cabins |
| Berth: | owners cabin: 1x 2-pers = French bed |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | Forward: shower cubicle thermostat tap washbasin with hot & cold running water in 1 area together with the toilet |
| Toilet / Heads: | Forward: hand pumptoilet Aft: electric toilet washbasin mixer tap with hot & cold running water |
| Galley: | U-shape galley |
| Cooker: | 3-burner hob induction cooker |
| Oven: | electric oven grill |
| Fridge / Refrigerator: | fridge / refrigerator 230 Volt combination with freezer |
| Freezer: | freezer |
| Worktop: | plastic worktop |
| Washbasin: | stainless steel sink vegetable sink |
| Water tap: | mixer tap with hot & cold running water |
| Entertainment: | radio/CD player |
| Headroom (approx.): | forward cabin (approx.) 2,00 m bathroom (approx.) 1,90 m cabin (approx) 1,90 m salon (approx.) 2,05 m wheelhouse (approx.) 1,95 m aftcabin (approx.) 1,75 m |
| Additional information: | washing machine / dryer |
Navigation equipment
| Navigation equipment: | VHF barometer navigation lights Automatic Identification System (AIS) rudder indicator clearviewscreen horn |
Rigging and sails
| Mast: | lantern mast steel |
| Lowerable: | yes manual |
Equipment
| Anchor equipment: | manual anchor winch Klipp anchor in hawse-hole 40 m anchor chain warping drum specified length(s) is/are approximate |
| Boarding ladder: | aluminium |
| Searail / Pulpit: | guardrail around side-walks |
| Dinghy: | present |
| Davits: | with boom |
| Safety: | 4 fire extinguishers 3 life buoys life jackets according to the certification requirements |
| Additional information: | aluminium gangway hard wooden skylight Survey report of the underwatership is available (10-2013) |
