Treffer 40 AC
Dimensions (m):
12.25 x 3.85 x 1.20
Ref. no.:
190202
Mooring:
Near Leiden, Netherlands
Construction year:
2001
Material:
steel
Vision Doeve Brokers

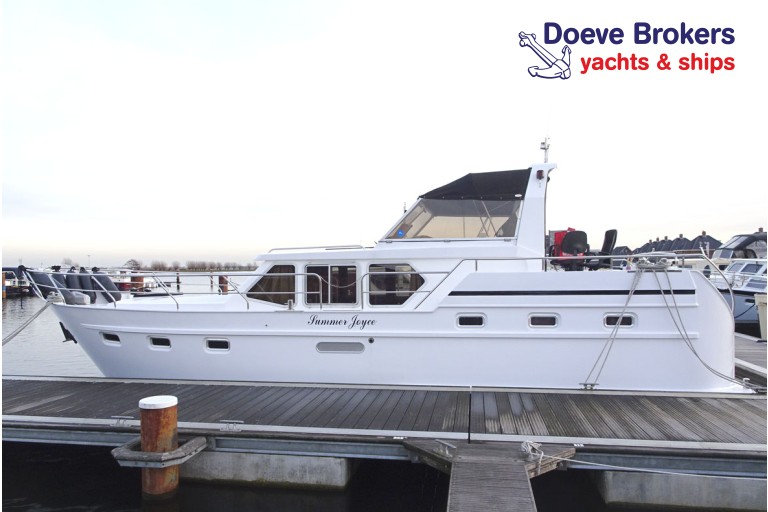

Very well maintained motor yacht with spacious aft cabin. The hull was built by Shipyard Treffer. Subsequently, a professional company in the yacht and ship's carpentry has made the interior according to the wishes of the seller. All this has resulted in a well built and beautifully finished ship. The layout from the front to the aft is as follows: a very large round seat that can also be used as a 2 x 1-persons berth, galley with separate wet and dry area, lounge, separate shower- and toilet cabin, aft cabin with French bed. The ship has been insulated above the waterline and the windows in the salon are double glazed. An honest ship with hardly no traces of use and suitable for a long stay on board.
More information
General information
| Yard: | Yard Treffer, NL-Tilburg fitted out by the owner together with professionals Interior: DKS, NL-Hardinxveld-Giessendam Shipyard Falcon, NL-Alphen aan den Rijn |
| Hull shape: | hard chine |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel |
| Construction method: | aftcabin bulwark wide side decks (gunnels) closed bollard cabinets stainless steel bollards |
| Steering system: | hydraulic wheel |
| Windows: | aluminium windows frames double glazing portholes single glass |
| Displacement (approx.): | 14 ton |
| Airdraft (approx.): | 3,00 m everything down |
| Owner: | Dutch owner |
| Colour / Paint System: | white hull white superstructure very well maintained |
| RCD / CE Certification: | D |
| Suitable for / as: | recreational vessel inland waterways |
| General information: | from first owner |
| Additional information: | motor cruiser AC Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the French canals and rivers. |
Technical information
| Enginepower: | 120 Hp 88 kW |
| Engine brand: | MWM |
| Engine model: | D 229-6 |
| Number of cylinders: | 6 |
| Construction year engine: | 1999 |
| Running hours (approx.): | 1900 on the hour counter |
| Fuel: | diesel |
| Fuel tank (approx.): | 500 ltr steel tank(s) |
| Cooling system: | intercooling wet exhaust |
| Propulsion: | 4 blade propeller water lubricated propeller shaft constant velocity prop shaft with thrust bearing |
| Gearbox: | PRM hydraulic reduction/ratio 2,5:1 |
| Heating: | Webasto hot air heating convectors on diesel |
| Bow thruster: | Side Power electric bow thruster 12 Volt 95 KGF |
| Stern thruster: | Side Power electric stern thruster 12 Volt 95 KGF |
| Electricity system: | 12 / 230 Volt 230 Volt shore power connection Mastervolt mainmaster control |
| Batteries: | 2x 165 Ah domestic batterie(s) 1x 50 Ah starter batterie(s) 1x 50 Ah starter batterie(s) generator 1x 50 Ah bow thruster batterie(s) 1x 50 Ah stern thruster batterie(s) |
| Battery charger: | Mastervolt battery charger Victron battery charger 12/30 |
| Earth-leakage breaker: | present |
| Genny: | Mastervolt Whisper 8000 whisper set (Westerbeke) 8 kVA 1650 on the hour counter (approx.) |
| Alternator: | 12 Volt |
| Solar panels: | 1x 85 Watt |
| Fresh water tank (approx.): | 1x 350 ltr stainless steel tank(s) 1x 150 ltr stainless steel tank(s) |
| Water pressure system: | hydrophore pump |
| Hot water system: | 60 ltr boiler/water calorifier via 230 Volt and engine cooling system |
| Holding tank (approx.): | not yet in use (2019) |
| Diesel waterseparator: | present |
| Engineroom: | well maintained |
| Deck wash pump: | present |
| Additional information: | LED lightning |
Accommodation
| Interior: | mahogany interior teak floor(s) |
| Insulation: | 10 cm Rockwool |
| Cabins: | 1 cabin |
| Berth: | owners cabin: 1x 2-pers Forward: 2x 1-pers |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | shower mixer tap with hot & cold running water washbasin mixer tap with hot & cold running water partly tiled |
| Toilet / Heads: | electric toilet |
| Galley: | L-shape galley |
| Cooker: | 4-burner hob ceramic cooker |
| Microwave: | microwave/oven |
| Fridge / Refrigerator: | fridge / refrigerator Waeco 12/230 Volt |
| Worktop: | formica worktop |
| Washbasin: | stainless steel sink |
| Water tap: | mixer tap with hot & cold running water |
| Entertainment: | Philips flatscreen TV |
| Headroom (approx.): | galley (approx.) 1,92 m salon (approx.) 1,92 m shower (approx.) 1,85 m toilet (approx.) 1,87 m ownerscabin (approx.) 1,88 m |
| Additional information: | well maintained The vessel will be delivered as without the private goods like furniture, clothing, artwork and tools. |
Navigation equipment
| Navigation equipment: | Shipmate RS8300 VHF rudder indicator horn 3x window wiper navigation lights |
Rigging and sails
| Mast: | apparatus wing aluminium |
| Lowerable: | yes manual |
Equipment
| Anchor equipment: | Vetus electric anchor winch warping drum Pool anchor anchor chain in hawse-hole Stainless steel bow plate |
| Outdoor cushions: | present |
| Cabriocap: | present (2017) stainless steel frame |
| Boarding ladder: | stainless steel |
| Swimming platform: | integral |
| Searail / Pulpit: | stainless steel searail on bulwark grab rail |
| Safety: | safe 1x fire extinguishers 3x life jacket |
| Additional information: | bicycle rack mosquito nets for windows |
