Dutch Barge, Skutsje 16.63 Sold
Dimensions (m):
16.63 x 3.53 x 0.65
Ref. no.:
180203
Mooring:
Near Rotterdam, Netherlands
Construction year:
1911
Material:
steel
Vision Doeve Brokers

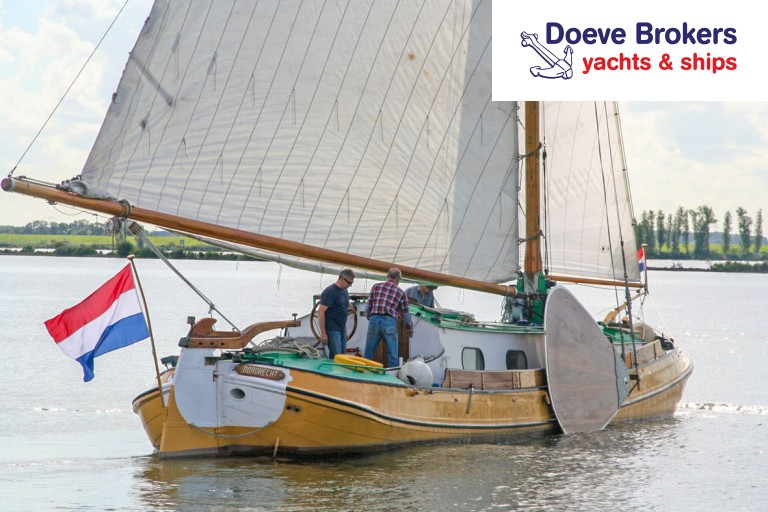

Former inland cargo vessel that has been completely rebuilt into a recreational vessel. Due to lack of time the ship will be offered for sale and the seller will have to say goodbye to the family heirloom with pain in his heart. The vessel is equipped with a gable roof superstructure and a large cockpit. The layout from front to back is as follows: toilet and shower under construction, 2 cabins each with a 2-persons bed and a washbasin, galley, salon, cockpit, aft cabin with 1-persons bed. In the hallway there can be created an extra bed under the side deck. The ship needs a paint job on the outside. The headroom varies from about 1.91 m to 2.10 m. It is less in the toilet and the aft cabin. A very attractive ship that can be enjoyed for a long time. Part exchange of a fast polyester motorboat with shower is negotiable.
More information
General information
| Yard: | Shipyard Van der Werf, NL-Harlingen |
| Hull shape: | flatbottom |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel |
| Construction method: | riveted new steel is welded |
| Steering system: | hydraulic wheel |
| Windows: | single glass rubber window frames bronze portholes |
| Displacement (approx.): | 34 ton |
| Airdraft (approx.): | 17,70 m mast installed 2,50 m everything down |
| Owner: | Dutch owner |
| Registration: | Dutch registered B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |
| Colour / Paint System: | yellow hull white superstructure one component system |
| Certificates: | no certificate requirement |
| Suitable for / as: | inland waterways recreational vessel |
| General information: | offered in the condition that she is in |
| Additional information: | Hull shape is suitable for drying out. Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the coastal waters. |
Technical information
| Enginepower: | 2x 85 Hp 2x 62 kW |
| Engine brand: | 2x DAF |
| Revolutions: | 2x 2200 RPM |
| Engine model: | 2x 475 |
| Overhaul engine: | 1995 |
| Fuel: | diesel |
| Fuel tank (approx.): | 800 litre 4 steel tank(s) |
| Cooling system: | closed cooling pipes |
| Propulsion: | 2x 3 blade propeller 2x constant velocity prop shaft with thrust bearing |
| Gearbox: | 2x Paragon hydraulic |
| Speed (approx.): | 15 km/hour top speed |
| Heating: | on gas |
| Electricity system: | 12 / 24 / 230 Volt 230 Volt shore power connection |
| Batteries: | 1x domestic batterie(s) 1x starter batterie(s) 1 starter batterie(s) generator |
| Battery charger: | Mastervolt combi inverter/charger 24/1200/35 |
| Battery isolator: | present |
| Isolation transformer: | present |
| Genny: | 6,2 kW sound proof box 14 kVA 1500 RPM |
| Alternator: | 1x 24 Volt 1x 12 Volt |
| Inverter: | Mastervolt combi inverter/charger 24/1200/35 |
| Fresh water tank (approx.): | 2x 700 ltr cemented tank(s) 1x 800 ltr cemented tank(s) |
| Water pressure system: | electric water pump |
| Diesel waterseparator: | present |
| Bilge pump: | 1x 12 Volt |
| Gas system: | present |
Accommodation
| Interior: | various materials have been used |
| Insulation: | partly Rockwool |
| Cabins: | 3 cabins |
| Berth: | owners cabin: 1x 2-pers Guest cabin(s): 1x 2-pers Aft: 1x 1-pers |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | hower is ready |
| Toilet / Heads: | electric toilet |
| Galley: | sideways |
| Cooker: | 4-burner hob stainless steel on gas |
| Microwave: | present |
| Fridge / Refrigerator: | on gas |
| Freezer: | 230 Volt |
| Washbasin: | stainless steel sink |
| Dishwasher: | present |
| Headroom (approx.): | ownerscabin (approx.) 1,91 m salon (approx.) 2,10 m galley (approx.) 1,96 m corridor / walkthrough (approx.) 1,91 m guest cabin (approx.) 1,91 m toilet (approx.) 1,81 m aftcabin (approx.) 1,38 m |
Navigation equipment
| Navigation equipment: | Garmin GPSMap 700 chartplotter / GPS Lowrance link 5 VHF with DSC barometer clock |
Rigging and sails
| Rigging type: | gaff rigged |
| Mast: | Oregon Pine |
| Lowerable: | yes electric |
| Boom: | Oregon Pine |
| Gaff: | Oregon Pine |
| Jib boom / Bowsprit: | bowsprit |
| Leeboards: | 2x leeboards 2x leeboards winch |
| Winches: | 3x hydraulic winch |
| Material of the sails: | Dacron |
| Sails: | mainsail jib |
| Additional information: | bobstay |
Equipment
| Anchor equipment: | kedge anchor anchor chain in hawse-hole |
| Awnings: | winter cover(s) |
