Jeanneau Sun Odyssey 45.1 Sold
Dimensions (m):
14.20 x 4.48 x 2.00
Ref. no.:
180202
Mooring:
Near Krk, Croatia
Construction year:
1995
Material:
GRP
Vision Doeve Brokers

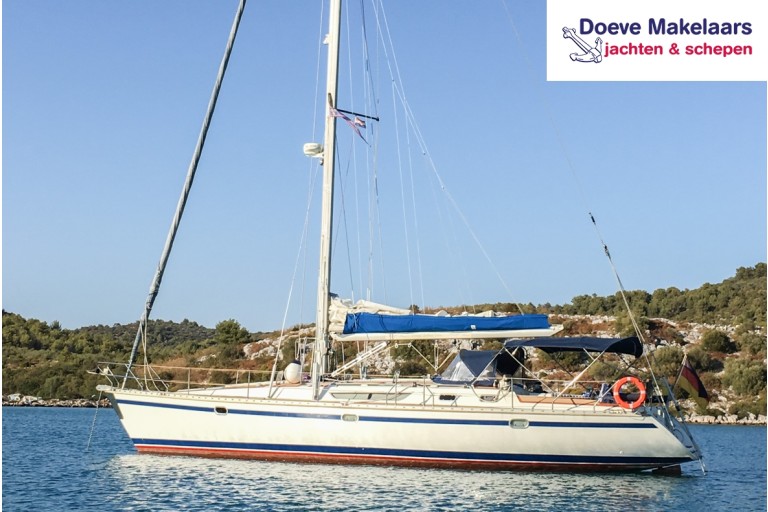

Beautiful lined sailing yacht with 3 cabins and a lot of space inside. She is equipped with a 68 Hp / 50 kW Yanmar diesel engine, boiler, two bathrooms with toilet, bimini, dinghy and several navigation instruments. The owners cabin is located in the front and the two guest cabins are in the aft. The seller has maintained her well. For example, the deck was covered with cork in 2013 and all 7 batteries were replaced in 2016. A comfortable sailing yacht for a lot of sailing pleasure.
More information
General information
| Yard: | Yard Jeanneau, Fr-Les Herbiers |
| Designer / Architect: | Philippe Briand |
| Hull shape: | round bilged |
| Hull material: | GRP |
| Deck material: | GRP cork deck(s) (Marinedeck) (2013) |
| Superstructure material: | GRP |
| Steering system: | mechanical 2x wheel |
| Windows: | aluminium windows frames |
| Owner: | German owner |
| Colour / Paint System: | white hull blue striping white superstructure |
| General information: | not inspected by us |
| Additional information: | cabin sailing yacht with cockpit ocean going |
Technical information
| Enginepower: | 68 Hp 50 kW |
| Engine brand: | Yanmar |
| Revolutions: | 2800 RPM |
| Engine model: | 4JH2-TE |
| Number of cylinders: | 4 |
| Construction year engine: | 1995 |
| Overhaul engine: | 2009 |
| Running hours (approx.): | 7000 on the hour counter |
| Fuel: | diesel |
| Fuel tank (approx.): | 1x 205 ltr stainless steel tank(s) |
| Cooling system: | intercooling wet exhaust waterlock |
| Propulsion: | 3 blade propeller water lubricated propeller shaft |
| Gearbox: | mechanical |
| Speed (approx.): | 8 knots top speed at 2800 RPM |
| Bow thruster: | Vetus electric bow thruster 12 Volt |
| Electricity system: | 12 / 230 Volt 230 Volt shore power connection |
| Batteries: | 5x 100 Ah domestic batterie(s) (2016) 1x 100 Ah starter batterie(s) (2016) 1x 100 Ah bow thruster batterie(s) (2016) |
| Battery charger: | Mastervolt Chargemaster battery charger 12–40 |
| Battery isolator: | present |
| Earth-leakage breaker: | present |
| Inverter: | present 1800 Watt |
| Fresh water tank (approx.): | 2x 300 ltr stainless steel tank(s) (2009) |
| Water pressure system: | electric water pump |
| Hot water system: | 55 ltr boiler/water calorifier via 230 Volt and engine cooling system (2011) |
| Diesel waterseparator: | present |
| Engineroom: | sound insulated engineroom |
| Bilge pump: | electric pump |
| Gas system: | yes, bottle(s) in bottle box ventilated |
Accommodation
| Interior: | oak interior teak wooden floor(s) with ashen |
| Cabins: | 3 cabins |
| Berth: | 6 sleeping places Forward: 1x 2-pers 2x Guest cabin(s): 2x 2-pers |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | 2x hand shower in 1 area together with the toilet washbasin with hot & cold running water |
| Toilet / Heads: | 2x hand pumptoilet 2x washbasin 2x mixer tap with hot & cold running water |
| Galley: | along ships |
| Cooker: | 2-burner hob in combination with the oven on gas stainless steel gimbals |
| Fridge / Refrigerator: | 220 ltr coolbox 12 Volt |
| Freezer: | small ice compartment |
| Worktop: | plastic worktop |
| Washbasin: | stainless steel sink |
| Water tap: | mixer tap with hot & cold running water |
| Entertainment: | radio/CD/MP3 player inside and outside speakers |
| Headroom (approx.): | ownerscabin (approx.) 1,90 m toilet in the front (approx.) 1,90 m salon (approx.) 1,98 m galley (approx.) 1,98 m guest cabin (approx.) 1,90 / 1,50 m |
Navigation equipment
| Navigation equipment: | Raymarine 7002 autopilot (2010) Raymarine radar VDO chartplotter Raymarine GPS 2x Raymarine i50 wind direction meter (2015) 2x Raymarine i60 anemometer (2015) Icom M411 VHF with DSC IPS portable VHF clinometer |
Rigging and sails
| Rigging type: | masthead sloop rigged |
| Mast: | aluminium mast crosstrees mast steps |
| Boom: | aluminium |
| Winches: | 2x sheet winch selftailing 2x electrical winch |
| Material of the sails: | Dacron |
| Sails: | mainsail Roller Furling Genoa 130% gennaker |
| Roller Reefing system: | electric roller furling forestay |
| Additional information: | Lazy Jacks backstay adjuster rodkicker |
Equipment
| Anchor equipment: | Jambo 30 kg anchor electric anchor winch remote control 60 m anchor chain Stainless steel bow roller Stainless steel bow plate specified length(s) is/are approximate |
| Outdoor cushions: | cockpit cushion(s) |
| Sprayhood: | sprayhood |
| Bimini: | bimini top above cockpit |
| Boarding ladder: | stainless steel |
| Swimming platform: | integral |
| Searail / Pulpit: | stainless steel bow pulpit stainless steel stanchions |
| Dinghy: | inflatable dinghy (2015) |
| Safety: | life buoy bilge alarm 2x fire extinguishers inflatable life jackets Plastimo 4-pers liferaft with certificate lifeline(s) with harness flares |
| Additional information: | stainless steel gangway table with storage inside cockpit table deckshower |
