Sailing Tjalk Chartervessel 19.98 No longer available
Dimensions (m):
19.98 x 4.75 x 0.90
Ref. no.:
171201
Mooring:
Near Medemblik, Netherlands
Construction year:
2005
Material:
steel
Vision Doeve Brokers

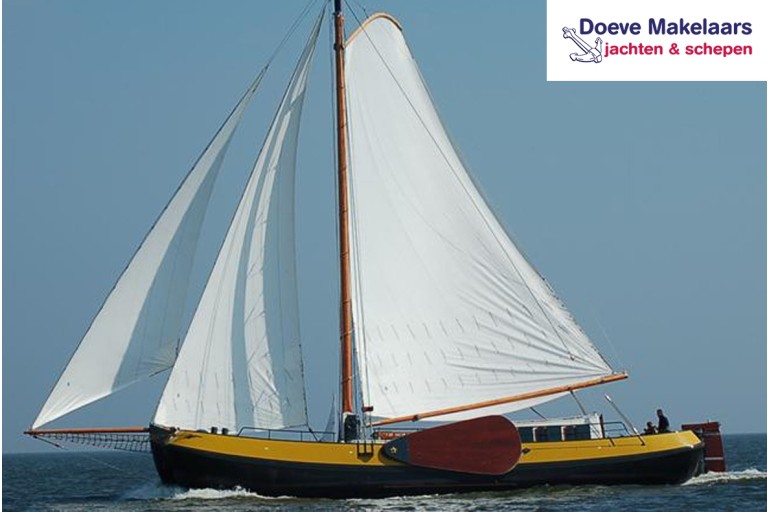

Newly built Sailing Tjalk, designed by the well-known naval architect Gaastmeer and built by the equally well-known Shipyard Talsma. This Dutch Barge was intended and used as a charter ship for up to 12 guests or can even be used as a B&B. The maintenance is well executed. She is equipped with various winches for easy sailing. A spacious cockpit and the bulwark with railing on it makes her also a safe ship. There are 4 cabins, 1x en-suite bathroom with toilet, 1x bathroom, 1x toilet, spacious living room with round seat and a galley with a big table. This barge is ready to welcome the guests directly.
More information
General information
| Yard: | Shipyard Talsma, NL-Osingahuizen |
| Designer / Architect: | Gaastmeer design, NL-Gaastmeer |
| Hull shape: | flatbottom round bilges |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel |
| Construction method: | welded open cockpit self-draining cockpit wide side decks (gunnels) deckhouse bulwark around rubbing strake closed bollard cabinets 2 watertight bulkhead(s) |
| Steering system: | hydraulic on steering pedestal attached rudder Bilinga hardwooden rudder |
| Windows: | hardwood window frames hardwooden door |
| Displacement (approx.): | 35 ton |
| Ballast (approx.): | trim ballast |
| Airdraft (approx.): | 22,00 m everything down 3,00 m |
| Owner: | Dutch owner |
| Registration: | B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |
| Colour / Paint System: | black hull yellow bulwark white superstructure 2016 last underwatership treatment two component basic system one component finish |
| Certificates: | no certificate requirement |
| Suitable for / as: | useful as charter suitable for bigger waterways |
| General information: | from first owner |
| Additional information: | The techniques used on board are commercial shipping quality. classic lines classic sailing yacht beautiful sheer straight hull forepeak with chain locker roomy foredeck Specified beam excludes the leeboards. Hull shape is suitable for drying out. Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the French canals and rivers. |
Technical information
| Enginepower: | 145 Hp 106 kW |
| Engine brand: | Iveco |
| Engine model: | 8061 M14 |
| Number of cylinders: | 6 |
| Construction year engine: | 2005 into operation |
| Running hours (approx.): | presumably 1000 |
| Fuel: | diesel |
| Fuel tank (approx.): | 800 litre 2 steel tank(s) |
| Cooling system: | closed keel cooling dry exhaust |
| Propulsion: | 4 blade propeller greased lubrication of propeller shaft |
| Gearbox: | PRM hydraulic |
| Speed (approx.): | 9 knots top speed at 1400 RPM |
| Heating: | Ferroli central heating on diesel radiators & convectors |
| Engine instruments: | present |
| Electricity system: | 24 / 230 / 400 Volt 230 Volt shore power connection |
| Batteries: | 2x 140 Ah starter batterie(s) (2015) 4x 230 Ah domestic batterie(s) (2015) 1x 55 Ah starter batterie(s) generator (2015) |
| Battery charger: | Victron battery charger |
| Earth-leakage breaker: | present |
| Genny: | BW10/15 TKKS whisper set (Mitsubishi) 10 kVA 230/400 Volt 1500 RPM 550 on the hour counter (approx.) closed cooling system box cooler |
| Inverter: | Victron Phoenix inverter 24/3000 |
| Fresh water tank (approx.): | 3000 litre 3 steel tank(s) cemented tank(s) |
| Water pressure system: | Speck hydrophore pump |
| Fresh water filter system: | fresh water filter system |
| Hot water system: | boiler/water calorifier through the central heating |
| Holding tank (approx.): | 300 litre 1 steel tank(s) |
| Diesel waterseparator: | 3x Separ diesel waterseparator |
| Bilge pump: | electric pump with manifold also deckwash pump |
| Gas system: | yes, bottle(s) in bottle box |
| Additional information: | partly LED lightning |
Accommodation
| Interior: | Marine Plywood mahogany interior mahogany finish pine floor(s) very well maintained see photographs |
| Insulation: | yes |
| Cabins: | 4 cabins |
| Berth: | Forward: 1x 2-pers Portside cabin: 2x 1-pers Starboard cabin: 4x 1-pers Starboard cabin: 4x 1-pers |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | Forward: En Suite shower cubicle hot & cold running water washbasin with hot & cold running water in 1 area together with the toilet Portside: shower hot & cold running water washbasin with hot & cold running water 3 guest cabins with wash basin cold running water |
| Toilet / Heads: | 2x toilet |
| Galley: | sideways |
| Cooker: | 5-burner hob on gas stainless steel |
| Oven: | Siemens microwave/oven |
| Fridge / Refrigerator: | present 230 Volt |
| Freezer: | small ice compartment |
| Worktop: | hardwooden worktop |
| Washbasin: | stainless steel sink |
| Water tap: | mixer tap with hot & cold running water |
| Headroom (approx.): | Forward: 2,13 m bathroom / toilet in the front (approx.) 2,10 m corridor / walkthrough (approx.) 2,11 m bathroom aft (approx.) 2,08 m cabins (approx.) 2,08 / 2,15 m salon (approx.) 2,15 m cabin (approx.) 2,12 m |
| Additional information: | Full charter inventory is present. |
Navigation equipment
| Navigation equipment: | Ritchie compass Geonav 6 chartplotter / GPS Simrad RS81 VHF Raymarine ST40 log / speed Raymarine ST40 depth / echosounder |
Rigging and sails
| Rigging type: | gaff rigged |
| Mast: | wooden mast larch |
| Lowerable: | yes spreader with anchor winch |
| Boom: | larch |
| Gaff: | larch |
| Jib boom / Bowsprit: | larch Jib boom |
| Leeboards: | Opepe / Bilinga wooden leeboards 2x leeboards winch |
| Winches: | 2x Strikwerda sail winch with 2 reels 1x Meissner 51S sheet winch selftailing 2-speed 2x Meisner 71S sheet winch selftailing 2-speed 2x Meisner 71S sheet winch selftailing 2-speed sheet winch selftailing |
| Material of the sails: | Dacron |
| Sails: | mainsail jib yankee by Molenaar |
| Additional information: | stainless steel standing rigging Dyneema running rigging & stainless steel running rigging sail covers |
Equipment
| Anchor equipment: | Pool anchor in hawse-hole Stainless steel Strikwerda manual anchor winch 50 m anchor chain specified length(s) is/are approximate |
| Outdoor cushions: | cockpit cushion(s) |
| Searail / Pulpit: | searail on bulwark |
| Safety: | fire alarm system fire extinguishers life jackets fire blanket |
| Additional information: | 3x teak wooden skylight |
