Sailing Cutter 25.53 charter vessel
Dimensions (m):
39.50/25.53 x 6.24 x 2.85
Ref. no.:
160704
Mooring:
Near Rotterdam, Netherlands
Construction year:
1920
Material:
steel
Vision Doeve Brokers

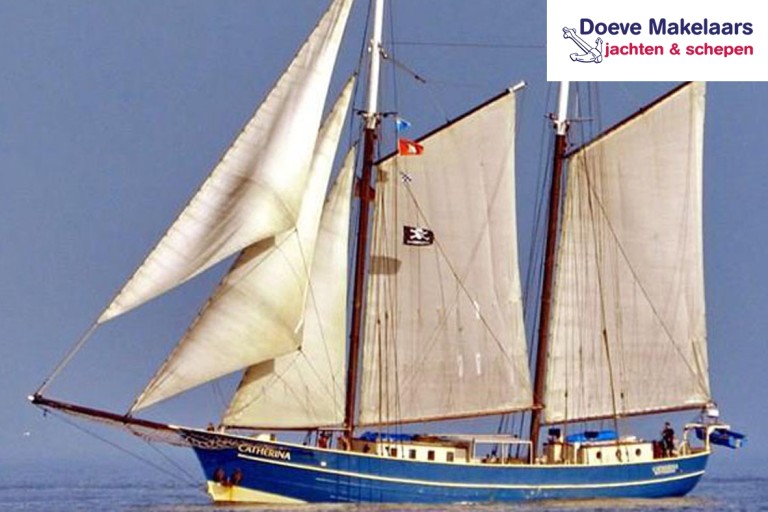

The CATHERINA was built in 1920 as coastguard cutter with auxiliary sails and minesweeper for the German navy. The hull of the ship was originally of wood on steel ribs. In 1955 the ship was extended in Belgium and the wooden skin was replaced by steel. Until 1982 the ship served as a fishing boat, but since 1985 it has been used as a training ship with excellent sailing characteristics. The ship is now used as a charter ship. She have had a major refit in 1996/1997. The current sailing area is the North and Baltic Seas. The ship also has made numerous trips to and around the Canary Islands.
More information
General information
Yard: | unknown |
Yard rebuilt: | Shipyard Bogger, BE |
Rebuilt year: | 1955 |
Hull shape: | round bilged |
Hull material: | steel |
Deck material: | steel |
Superstructure material: | steel |
Construction method: | riveted new steel is welded 4 watertight bulkhead(s) watertight door(s) wide side decks (gunnels) bulwark |
Steering system: | hydraulic wheel on steering pedestal |
Windows: | bronze portholes bronze window frames |
Displacement (approx.): | 97 GT 53 NT |
Airdraft (approx.): | 28,00 m |
Owner: | Dutch owner |
Registration: | B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |
Colour / Paint System: | blue hull white superstructure 2016 last underwatership treatment |
Certificates: | EU 2009/45/EC passengers including crew Register Holland Commercial Sailing Vessel Z1,2,3,4 sailing area III, NSI 17 23 Passengers |
Suitable for / as: | seaworthy A1 useful as charter passengers vessel |
General information: | good sailing characteristics Hand over in consultation, charter contracts must be complied. |
Additional information: | 23 hotel guests 45 day guests classic lines beautiful sheer Great vessel for cruising on the coastal waters. depth 3,76 m |
Technical information
Enginepower: | 344 Hp 253 kW |
Engine brand: | Weichai |
Revolutions: | 1800 RPM |
Engine model: | WD10C313-18 |
Number of cylinders: | 6 |
Construction year engine: | new 2018 |
Fuel: | diesel |
Fuel tank (approx.): | 5300 litre steel tank(s) 700 litre daytank(s) glass gauge to tank(s) |
Cooling system: | closed box cooler |
Propulsion: | 4 blade propeller |
Gearbox: | Weichai WHG300 hydraulic (2018) reduction/ratio 3,53:1 |
Heating: | Maritime Booster central heating combi boiler on diesel |
Electricity system: | 24 / 230 / 400 Volt 400 Volt shore power connection |
Batteries: | 8x 110 Ah domestic batterie(s) 2x 180 Ah starter batterie(s) 2x 100 Ah radio batterie(s) 2x 65 Ah starter batterie(s) generator |
Battery charger: | Victron Skylla battery charger 24/50 Victron Skylla-TG battery charger 24/50 |
Genny: | Mitsubishi 4DQ50 17 kVA whisper set Weichai WP2.5CD22E1 (2018) 20 kVA 400 Volt |
Inverter: | Victron Phoenix inverter 24/3000 |
Fresh water tank (approx.): | 8000 litre steel tank(s) cemented tank(s) |
Water pressure system: | hydrophore pump |
Holding tank (approx.): | 1x 1200 litre (2018) 1x 1200 litre steel tank(s) |
Diesel waterseparator: | present |
Engineroom: | very well maintained clean engineroom |
Bilge pump: | 2x electric pump |
Deck wash pump: | 2x electric pump |
Gas system: | present Gas certificate |
Additional information: | partly LED lightning |
Accommodation
Interior: | meranti interior various materials have been used retardant panelling |
Insulation: | Rockwool |
Cabins: | 11 cabins |
Berth: | Guest cabin(s): 3x 4-pers Guest cabin(s): 2x 3-pers Guest cabin(s): 3x 2 pers Crew cabin(s): 1x 2-pers Crew cabin(s): 2x 1-pers |
Lay-out plan (not to scale): | see attachment |
Bathroom: | 3x shower |
Toilet / Heads: | 4x hand pumptoilet |
Galley: | sideways |
Cooker: | 4-burner hob on gas cookerhood |
Oven: | electric oven |
Fridge / Refrigerator: | 2x fridge / refrigerator |
Freezer: | freezer |
Washbasin: | stainless steel sink |
Water tap: | hot & cold running water |
Entertainment: | radio/CD player |
Headroom (approx.): | 8x guest cabin (approx.) 1,94 / 2,00 m 3x bathroom (approx.) 1,73 / 1,89 m corridor / walkthrough (approx.) 1,95 m salon (approx.) 2,51 m galley (approx.) 2,04 m aftcabin (approx.) 1,90 m 3x crew cabin (approx.) 1,33 / 1,41 m |
Additional information: | 2x washing machine tumble dryer cutlery and crockery beer tap useful as charter see photographs |
Navigation equipment
Navigation equipment: | depth / echosounder JRC NCR-333 Navtex (2015) Furuno FM 8500 VHF Sailor RT144 VHF GMDSS Simrad GN33 GPS compass ships bell charts |
Rigging and sails
Rigging type: | gaff ketch rigged |
Mast: | 2x steel |
Lowerable: | no |
Boom: | Oregon Pine |
Gaff: | aluminium |
Jib boom / Bowsprit: | Oregon Pine bowsprit (2011) |
Sails: | mainsail schooner sail 2x topsail inner yankee outer yankee boom jib |
Additional information: | galvanized steel standing rigging bobstay pin rail sail covers Lazy Jacks |
Equipment
Anchor equipment: | electric anchor winch 100 m anchor chain hawsehole Klipp anchor kedge anchor specified length(s) is/are approximate |
Bimini: | sun awning |
Dinghy: | present (2016) 2x canoe |
Davits: | present (2016) |
Safety: | EPIRB (COSPAS-SARSAT) automatic fire extinguishing system in engine room fire extinguishers 3x 25 pers. liferaft with certificate 50x life jackets 4x life buoy according to the certification requirements |
Additional information: | set deck furniture deck lights aluminium gangway Survey report of the underwatership is available (2014) |
