Dutch Barge, Steilsteven 22.25 No longer available
Dimensions (m):
22.25 x 4.38 x 1.00
Ref. no.:
160502
Mooring:
Near Aalsmeer, Netherlands
Construction year:
1924
Material:
steel
Vision Doeve Brokers

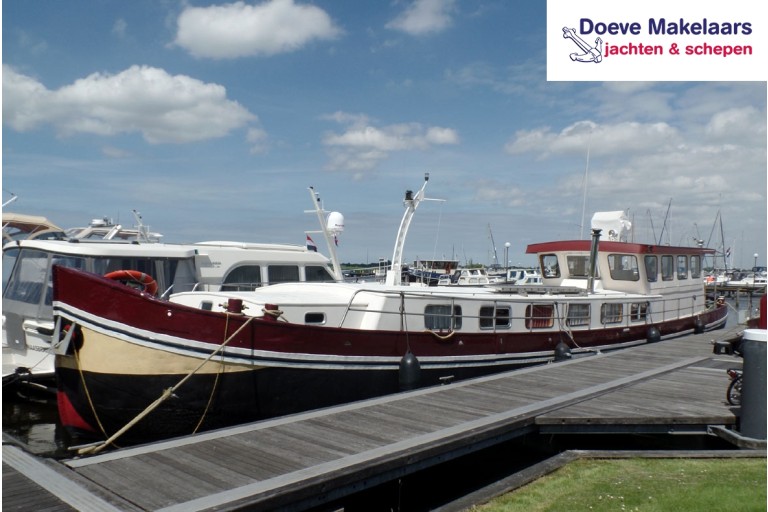

Former inland cargo vessel that has been completely refurbished into a sailing live aboard barge. Equipped with virtually everything that is needed to live aboard and to explore the inland waterways. Equipped with a second steering position on the roof which makes the air draft a bit high at the time, but this can be removed. Furthermore, at different points in the interior finishing is required, but taking everything in consideration this barge is worthwhile.
More information
General information
| Yard: | Shipyard Fikkers, NL-Foxhol |
| Hull shape: | flatbottom |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel |
| Construction method: | riveted new steel is welded rubbing strake around wide side decks (gunnels) 3x bulkhead |
| Steering system: | hydraulic wheel inside and outside steering position 2016 steering cylinders refurbished |
| Windows: | aluminium windows frames rubber window frames single glass & double glazing |
| Displacement (approx.): | 75 ton |
| Airdraft (approx.): | 3,00 m after the outside steering position has been removed 3,70 m |
| Owner: | Dutch owner |
| Registration: | B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |
| Colour / Paint System: | black hull bordeaux red bulwark white superstructure last underwatership treatment 2016 |
| Suitable for / as: | suitable for bigger waterways inland waterways suitable as a year round live- aboard |
| Additional information: | Hull shape is suitable for drying out. forepeak with chain locker straight hull Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the French canals and rivers. |
Technical information
| Enginepower: | 85 Hp 62 kW |
| Engine brand: | DAF |
| Revolutions: | 2400 RPM |
| Engine model: | 475 |
| Number of cylinders: | 6 |
| Construction year engine: | 1960 |
| Overhaul engine: | 2009 reconditioned installed |
| Running hours (approx.): | 950 on the hour counter |
| Fuel: | diesel |
| Fuel tank (approx.): | 2x 450 ltr aluminium tank(s) |
| Cooling system: | closed box cooler (2016) |
| Propulsion: | greased lubrication of propeller shaft constant velocity prop shaft with thrust bearing shaft bearing (2016) |
| Gearbox: | Paragon P23L hydraulic |
| Heating: | stove on wood central heating = prepared |
| Bow thruster: | Nobels electric bow thruster 16 Hp 24 Volt |
| Electricity system: | 24 / 230 Volt 230 Volt shore power connection |
| Batteries: | 2x 230 Ah bow thruster batterie(s) 2x 230 Ah starter batterie(s) |
| Battery charger: | Mastervolt Mass battery charger 24/50 |
| Battery isolator: | Victron Argofet battery isolator |
| Isolation transformer: | Victron isolation transformer 3600 Watt |
| Genny: | Lombardini diesel 7 kVA 230/400 Volt 3000 RPM |
| Inverter: | Victron Orion inverter 24-12 Volt |
| Fresh water tank (approx.): | 600 ltr 1x stainless steel tank(s) |
| Water pressure system: | hydrophore pump |
| Holding tank (approx.): | 400 ltr 1 aluminium tank(s) |
| Gas system: | yes, bottle(s) in bottle box |
Accommodation
| Interior: | various materials have been used okume interior ceiling systems for the greater part renewed, needs finishing see photographs |
| Insulation: | for a large part |
| Cabins: | 3 cabins |
| Berth: | Forward: 1x 2-pers Midships: 1x 2-pers Aft: 1x 2-pers |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | shower cubicle washbasin tiled bathroom in 1 area together with the toilet |
| Toilet / Heads: | electric toilet |
| Galley: | along ships |
| Cooker: | 4-burner hob on gas cookerhood |
| Oven: | microwave/oven |
| Fridge / Refrigerator: | Liebherr fridge / refrigerator 230 Volt |
| Freezer: | freezer |
| Washbasin: | stainless steel sink |
| Entertainment: | Samsung flatscreen TV radio/CD player |
| Headroom (approx.): | ownerscabin (approx.) 2,02/1,87 m corridor / walkthrough (approx.) 1,92/1,87 m bathroom / toilet (approx.) 1,97 m guest cabin (approx.) 1,97 m salon (approx.) 1,92 m guest cabin (approx.) 1,91 m wheelhouse (approx.) 2,06 m |
| Additional information: | The vessel will be delivered as without the private goods like furniture, clothing, artwork and tools. useful as live-aboard washing machine |
Navigation equipment
| Navigation equipment: | Icom VHF rudder indicator navigation lights search light |
Rigging and sails
| Mast: | lantern mast |
| Lowerable: | yes manual |
Equipment
| Anchor equipment: | manual anchor winch 40 m anchor chain Klipp anchor in hawse-hole specified length(s) is/are approximate |
| Searail / Pulpit: | stainless steel searail |
| Safety: | CO2 & gasdetector |
| Additional information: | Interesting project to finish for someone with two right hands or to have it done by a yard. Survey report of the underwatership is available (10-2016) |
