De Plaete 22.00, ES-TRIN Rhine
Dimensions (m):
22.00 x 4.90 x 1.00
Ref. no.:
240205
Mooring:
Near Nijmegen, Netherlands
Construction year:
1990
Material:
steel
Price:
€ 349.000,--
VAT not applicable
Vision Doeve Brokers

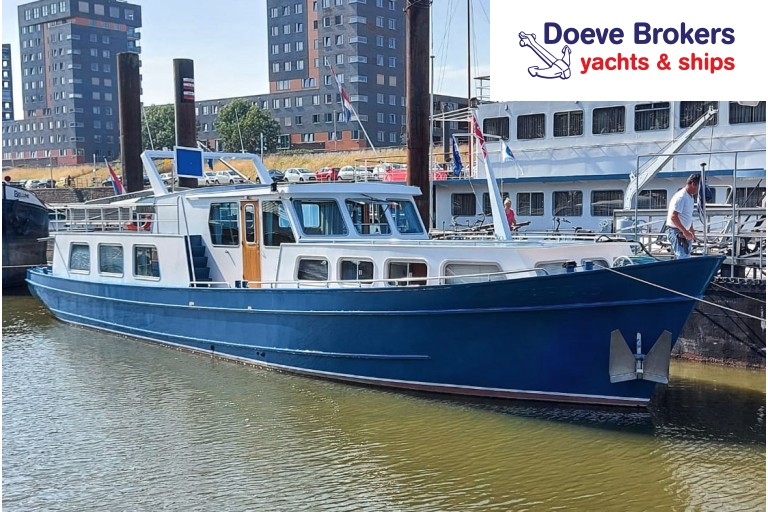

A beautifully thought-out motor yacht that was designed and built to own ideas. The principal was a skipper in inland shipping and used this knowledge in the design. This Sailing Houseboat is completely self-supporting with, among other things, two generators. At the front is the owner's cabin with plenty of storage space and a 2-persons French bed. The spacious bathroom is tiled and equipped with underfloor heating, bath with shower, toilet, sink and washing machine. The large wheelhouse with seating area offers good visibility all around. Then there is a large lounge with partly underfloor heating and an open kitchen. The double-glazed sliding doors provide access to the open cockpit and the upper deck. This ship is truly a sailing Dutch Barge and very suitable for exploring the European waters and with the two side doors it is also very easy to moor in the locks.
More information
General information
| Yard: | Shipyard De Plaete, NL-Oltgensplaat Interior: Bas van 't Geloof, NL-Lage Zwaluwe |
| Hull shape: | round bilged |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel |
| Construction method: | forecabin rubbing strake around bulwark deckhouse flare shape bow transom stern closed bollard cabinets 3 watertight bulkhead(s) flying bridge self-draining cockpit |
| Steering system: | hydraulic inside steering position = wheel outside steering position = joystick 2x balance rudder |
| Windows: | aluminium windows frames teak wooden outside doors single glass aluminum sliding facade double glazing |
| Displacement (approx.): | 50 metric tons |
| Ballast (approx.): | concrete tiles |
| Airdraft (approx.): | 3,60 m everything down By installing more ballast in the vessel an estimated air draft is possible: 3,40 m |
| Owner: | Dutch owner |
| Colour / Paint System: | blue hull (2022) above deck(s) one components finish (2021) white superstructure (2021) last underwatership treatment (2016) very well maintained see photographs |
| Certificates: | inland waterways certificated (TRIWV / ES-TRIN) zone R (Rhine) zone 2 Netherlands zone 3 zone 4 valid until: 01-2025 |
| Suitable for / as: | suitable as a year round live- aboard recreational vessel inland waterways & coastal waters |
| General information: | from first owner good sailing characteristics |
| Additional information: | motor yacht spacious upperdeck various rust sensitive places are made from stainless steel beautiful sheer straight hull forepeak with chain locker Great vessel for cruising on the European canals and rivers. |
Technical information
| Enginepower: | 299 Hp 220 kW |
| Engine brand: | DAF |
| Revolutions: | 2000 RPM |
| Engine model: | DKS 1160 M |
| Number of cylinders: | 6 |
| Construction year engine: | 1986 as declared |
| Running hours (approx.): | 5700 on the hour counter |
| Fuel: | diesel |
| Fuel tank (approx.): | 2x 2000 litre steel tank(s) |
| Cooling system: | closed Blokland box cooler |
| Propulsion: | 3 blade propeller greased lubrication of propeller shaft greasing device thrust bearing |
| Gearbox: | Masson NFA hydraulic reduction/ratio 2,43:1 |
| Heating: | Kabola B25 central heating on diesel & floor heating (deels / partly / teilweise / partiellement) electric |
| Bow thruster: | Kalkman Beta 16 electric bow thruster 24 Volt |
| Electricity system: | 24 / 230 / 400 Volt 230 Volt shore power connection 400 Volt shore power connection |
| Batteries: | 720 Ah traction batterie bank (12x 2 Volt) 1x 100 Ah starter batterie(s) generator 1x 95 Ah starter batterie(s) generator 1x Optima Red Top |
| Battery charger: | present 24/70 |
| Battery isolator: | multi battery isolator |
| Genny: | Deutz diesel genny 7,8 kVA 230/400 Volt, 1500 RPM 9000 running hours (approx.) Fimag diesel genny 15 kVA 230/400 Volt, 1500 RPM |
| Inverter: | Victron Atlas inverter 24/1200 |
| Fresh water tank (approx.): | 2x 2750 litre steel tank(s) coated |
| Water pressure system: | DAB hydrophore pump |
| Hot water system: | Wahlbach Electric flow heater (230 Volt) |
| Holding tank (approx.): | not present, enough space to build-in |
| Diesel waterseparator: | present |
| Engineroom: | very well maintained |
| Bilge pump: | submersible pump |
| Deck wash pump: | present |
| Gas system: | no gas on board |
Accommodation
| Interior: | teak interior Plywood painted white very well maintained see photographs |
| Insulation: | glass wool |
| Cabins: | 1 cabin |
| Berth: | owners cabin: 1x 2-pers Sofa bed: 1x 2-pers Wheelhouse: 1x 1-pers |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | tiled bathroom bath with shower thermostat tap washbasin with mixer tap and hot & cold running water in 1 area together with the toilet |
| Toilet / Heads: | flush toilet |
| Galley: | L-shape galley |
| Cooker: | 4-burner hob ceramic cooker cookerhood |
| Oven: | electric oven |
| Fridge / Refrigerator: | present 230 Volt |
| Freezer: | present combination with the refrigerator |
| Worktop: | plastic worktop |
| Washbasin: | stainless steel sink |
| Water tap: | mixer tap with hot & cold running water |
| Dishwasher: | Bauknecht dishwasher |
| Entertainment: | Pioneer KEX-P66R radio/CD player OceanSat selfsearching satellite antenna |
| Headroom (approx.): | ownerscabin (approx.) 2,06 m bathroom / toilet (approx.) 2,03 m corridor / walkthrough (approx.) 2,05 m wheelhouse (approx.) 1,93 m salon (approx.) 2,16 m |
| Additional information: | useful as live-aboard well maintained lots of storage space Whirlpool washing machine The vessel will be delivered as without the private goods like furniture, clothing, artwork and tools. |
Navigation equipment
| Navigation equipment: | Em-Trak A100 Automatic Identification System (AIS) Lowrance X-4 depth / echosounder Shipmate RS 8300 VHF rudder indicator search light horn blue board with oscillating light horn light barometer navigation lights |
Rigging and sails
| Mast: | lantern mast & apparatus wing aluminium |
| Lowerable: | yes manual |
Equipment
| Anchor equipment: | manual anchor winch warping drum Pool anchor in hawse-hole anchor chain |
| Searail / Pulpit: | searail on bulwark grab rail guardrail around upperdeck |
| Dinghy: | GRP dinghy Mercury outboard engine 4 Hp |
| Safety: | fire extinguishers life buoys life jackets according to the certification requirements |
| Additional information: | aluminium gangway stainless steel crane covers over skylights Survey report of the underwatership is available (01-2018) steering chair deck lights |
