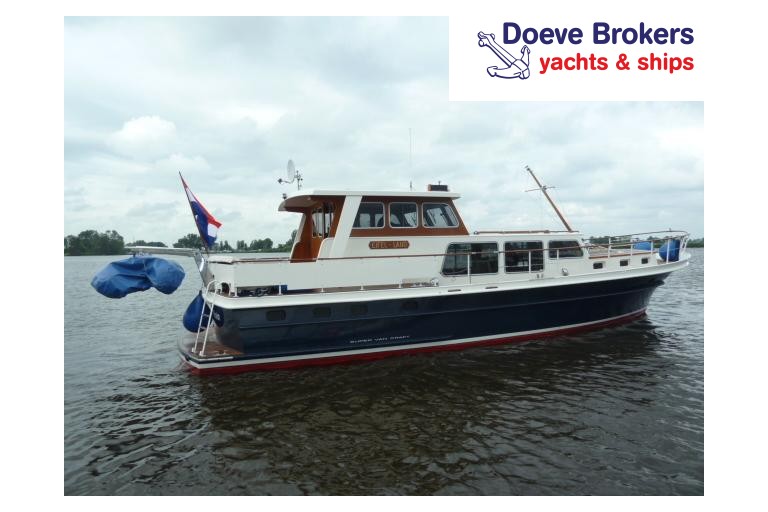

Super van Craft 1500
Dimensions (m):
14.95 x 4.45 x 1.40
Ref. no.:
713.74v35
Mooring:
Near Medemblik, Netherlands
Construction year:
1988
Material:
steel
Vision Doeve Brokers
More information
General information
| Yard: | Yard Klaasen, NL-Voorschoten |
| Designer / Architect: | B. Klaasen |
| Hull shape: | round bilged |
| Hull material: | steel |
| Deck material: | steel & teak deck(s) |
| Superstructure material: | steel & teak |
| Steering system: | mechanical wheel |
| Windows: | stainless steel windows frames aluminium windows frames gedeeltelijk / partly / teilweise / partiellement double glazing |
| Displacement (approx.): | 29 metric tons |
| Airdraft (approx.): | 3,45 m everything down |
| Owner: | Dutch owner |
| Colour / Paint System: | blue hull white superstructure |
| Suitable for / as: | recreational vessel |
| Additional information: | motor cruiser GSAK spacious aftdeck Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the French canals and rivers. |
Technical information
| Enginepower: | 2x 145 Hp 2x 106 kW |
| Engine brand: | 2x Volvo Penta |
| Revolutions: | 2x 2500 RPM |
| Engine model: | 2x MD70C |
| Number of cylinders: | 6 |
| Running hours (approx.): | portside 6478 starboard 6432 |
| Fuel: | diesel |
| Fuel tank (approx.): | 3x 400 litre |
| Cooling system: | intercooling wet exhaust |
| Propulsion: | 2x 3 blade propeller greased lubrication of propeller shaft |
| Gearbox: | Twin Disc hydraulic |
| Heating: | Kabola KM7-20 central heating |
| Bow thruster: | Rheinstrom electric bow thruster |
| Electricity system: | 12 / 230 Volt 230 Volt shore power connection |
| Batteries: | 1x 180 Ah semi traction starter battery 1x 105 Ah 1x 52 Ah starter batterie(s) generator |
| Battery charger: | Mastervolt battery charger |
| Battery isolator: | Victron Energy Blue Power battery isolator |
| Genny: | Onan whisper diesel 6 kW 860 on the hour counter (approx.) |
| Inverter: | Victron Energy Phoenix inverter 24/2000 |
| Fresh water tank (approx.): | 1x 1000 litre steel tank(s) |
| Water pressure system: | electric water pump |
| Hot water system: | geyser (gas heater) |
| Diesel waterseparator: | 4x diesel waterseparator |
| Engineroom: | sound insulated engineroom |
| Bilge pump: | present 12 Volt |
| Deck wash pump: | present |
| Gas system: | bottlebox |
Accommodation
| Interior: | teak interior |
| Insulation: | glass wool |
| Cabins: | 2 cabins |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | partly tiled hot & cold running water |
| Toilet / Heads: | 2x electric toilet 2x washbasin with hot & cold running water |
| Galley: | U-shape galley |
| Cooker: | 4-burner hob on gas Dometic cookerhood |
| Microwave: | Miele microwave/oven |
| Fridge / Refrigerator: | Vitrifrigo fridge / refrigerator 12 Volt & 24 Volt |
| Freezer: | White Knight freezer |
| Worktop: | plastic worktop |
| Washbasin: | stainless steel sink |
| Water tap: | hot & cold running water |
| Dishwasher: | present |
| Entertainment: | LTC radio/CD player Sony DVD-player & Blue-ray flatscreen TV |
| Headroom (approx.): | forecabin (approx.) 1,97 m toilet (approx.) 1,93 m galley (approx.) 1,89 m salon (approx.) 1,97 m toilet (approx.) 1,90 m shower (approx.) 1,83 m ownerscabin (approx.) 1,87 m |
| Additional information: | Bauknecht washing machine / dryer |
Navigation equipment
| Navigation equipment: | JRC JMA-1030 radar Alphatron FF-901 chartplotter Sailor RT2047 VHF search light horn 3x window wiper |
Rigging and sails
| Mast: | lantern mast teak |
| Lowerable: | yes manual |
Equipment
| Anchor equipment: | Vetus electric anchor winch |
| Swimming platform: | integral with teak |
| Searail / Pulpit: | guardrail around with teak on top of guardrail grab rail |
| Davits: | stainless steel manual winch |
