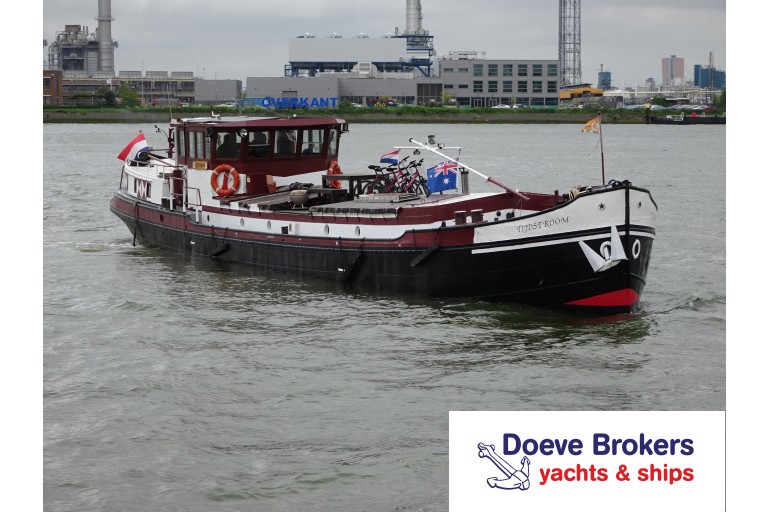

Luxe Motor 25.03 with TRIWV
Dimensions (m):
25.03 x 4.23 x 1.15
Ref. no.:
.24ef.,;lqa./u
Mooring:
Near Rotterdam, Netherlands
Construction year:
1924
Material:
steel
Vision Doeve Brokers
More information
General information
| Yard: | Shipyard W. de Jong Skandinavie, NL-Groningen |
| Hull shape: | flatbottom |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel |
| Construction method: | riveted new steel is welded rubbing strake around bulwark deckhouse closed bollard cabinets watertight bulkhead(s) |
| Steering system: | mechanical wheel |
| Ballast (approx.): | lead & steel & concrete tiles 16 metric tons |
| Airdraft (approx.): | 3,15 m everything down |
| Owner: | Australian owner |
| Registration: | Dutch registered B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |
| Colour / Paint System: | black hull bordeaux red bulwark white superstructure bordeaux red superstructure see photographs very well maintained last underwatership treatment 05-2023 |
Technical information
| Engine brand: | Gardner |
| Revolutions: | 1100 RPM |
| Engine model: | LW6 |
| Number of cylinders: | 6 |
| Construction year engine: | 1945 |
| Running hours (approx.): | unknown |
| Fuel: | diesel |
| Cooling system: | closed cooling pipes dry exhaust |
| Propulsion: | 3 propeller variable-pitch propeller |
| Gearbox: | Twin Disc MG61 hydraulic reduction/ratio 3:1 |
| Heating: | Kabola central heating on diesel |
| Bow thruster: | Vetus electric bow thruster 220 KGF 24 Volt |
| Electricity system: | 24 / 230 Volt 230 Volt shore power connection largely replaced |
| Batteries: | 2x 200 Ah starter batterie(s) (2022) 820 Ah traction batterie bank 12x 2-Volt (05-2023) 1x 320 Ah starter batterie(s) generator |
| Battery charger: | Victron MultiPlus-2 combi inverter/charger 24/5000/120 battery charger 24/30 battery charger 12/16 |
| Isolation transformer: | Victron isolation transformer 7000 Watt |
| Earth-leakage breaker: | earth leakage circuit breaker |
| Alternator: | 2x 100 ampère |
| Inverter: | Victron MultiPlus-2 combi inverter/charger 24/5000/120 |
| Solar panels: | 4x 420 Watt |
| Fresh water tank (approx.): | 2000 litre 2 plastic tank(s) |
| Water pressure system: | hydrophore pump & seawater hydrophore pump |
| Fresh water filter system: | fresh water filter system |
| Hot water system: | boiler/water calorifier via 230 Volt and engine cooling system |
| Holding tank (approx.): | 1x 750 litre gray water tank(s) 1x 750 litre black water tank(s) |
| Bilge pump: | 3x submersible pump |
| Deck wash pump: | present 230 Volt |
| Gas system: | yes, bottle(s) in bottle box on deck Gas certificate |
Accommodation
| Insulation: | yes |
