Patrol vessel 9.75 Sold
Dimensions (m):
10.25 x 3.45 x 0.95
Ref. no.:
230403
Mooring:
Near The Hague, Netherlands
Construction year:
2008
Material:
steel
Vision Doeve Brokers

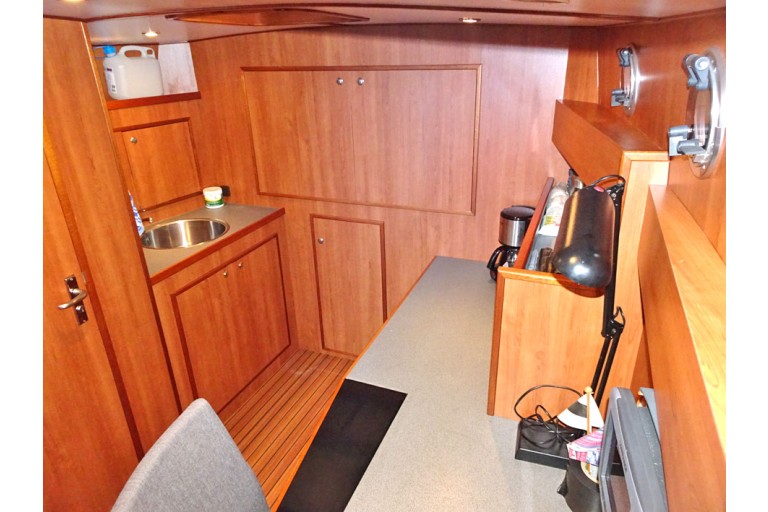

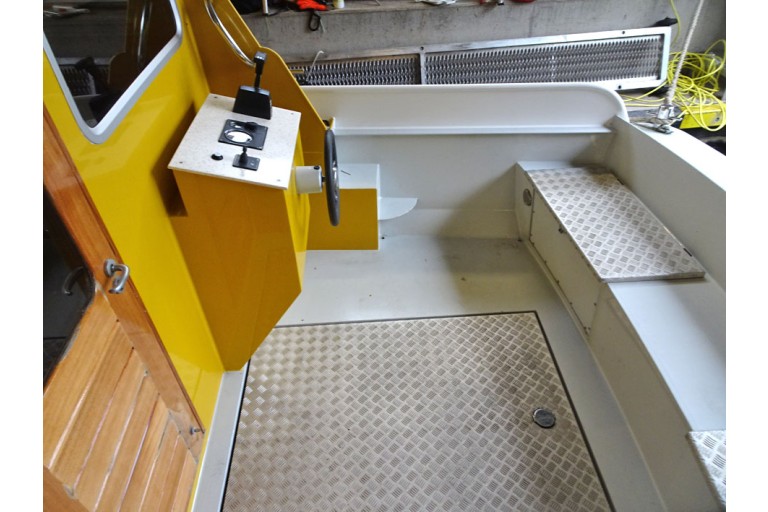

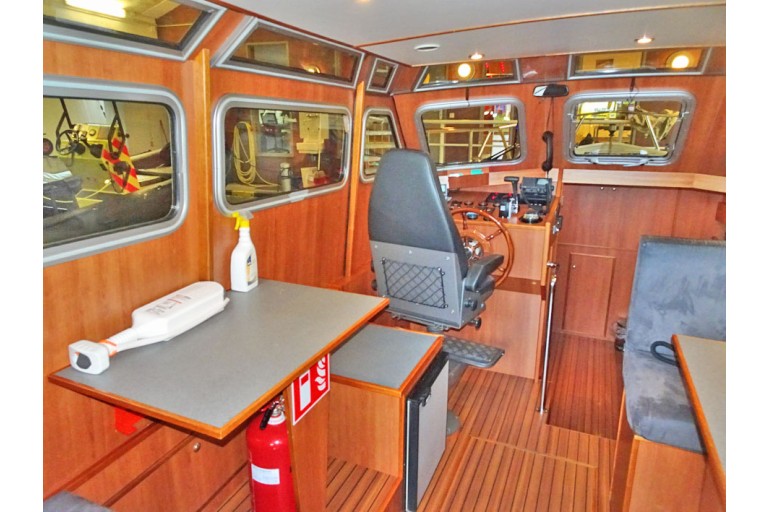

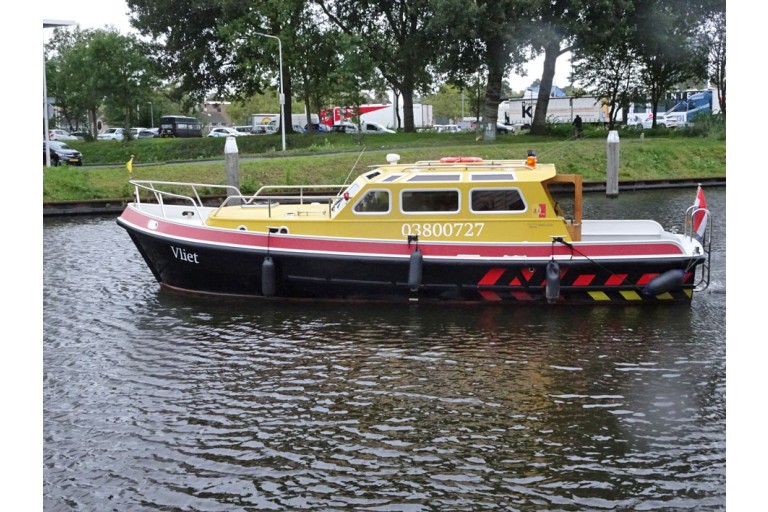

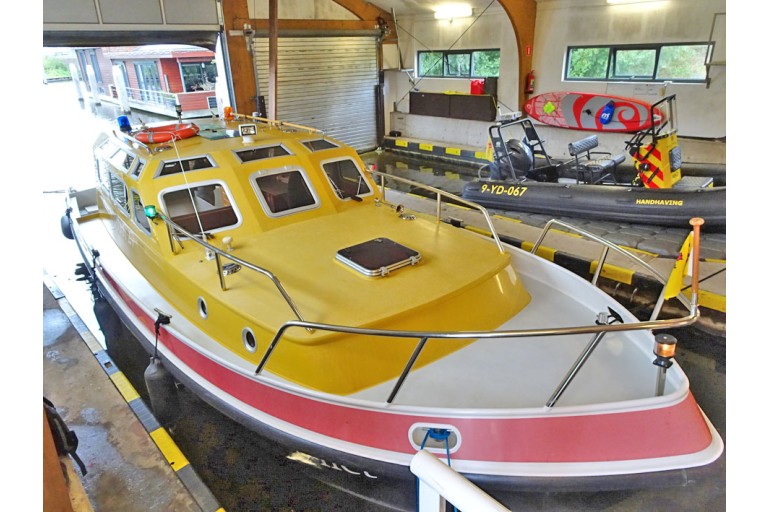

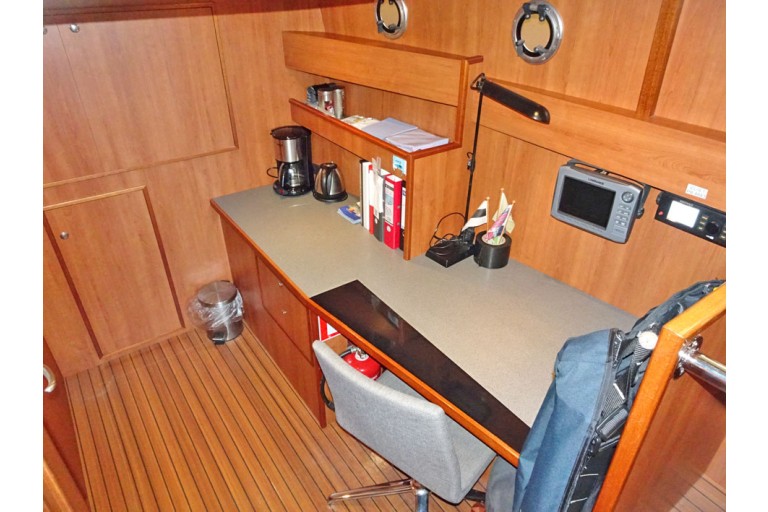

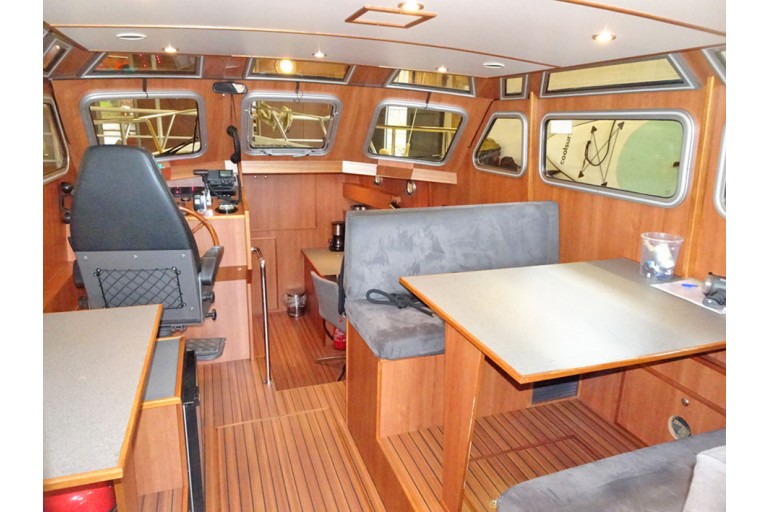

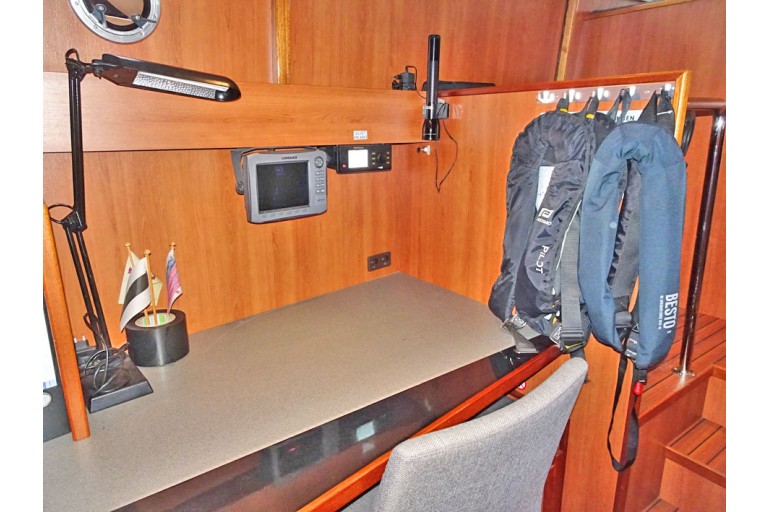

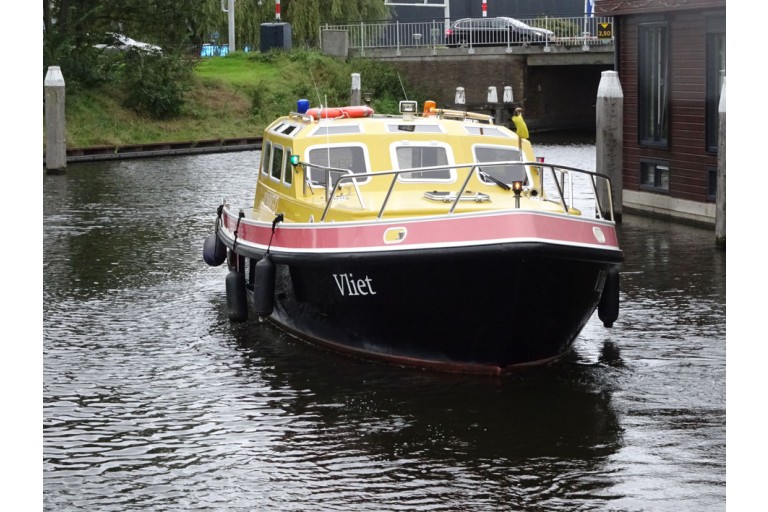

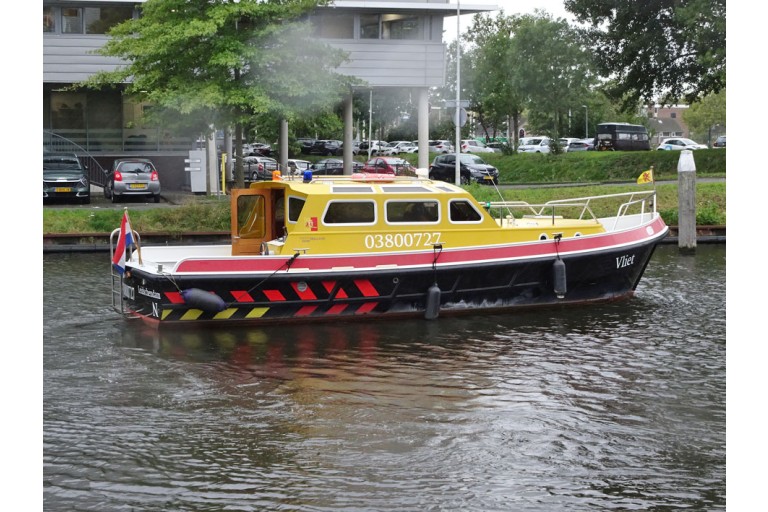

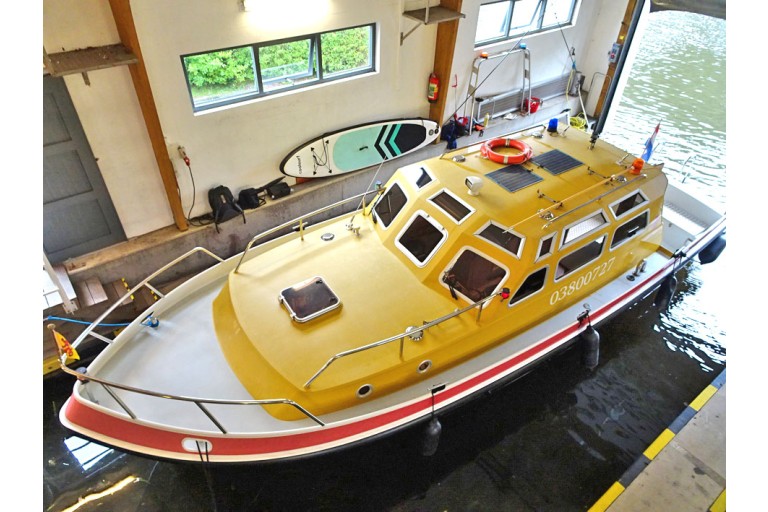

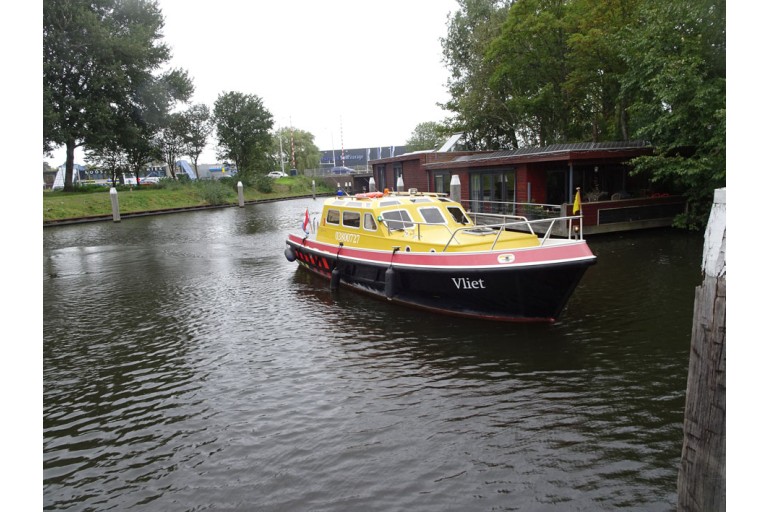

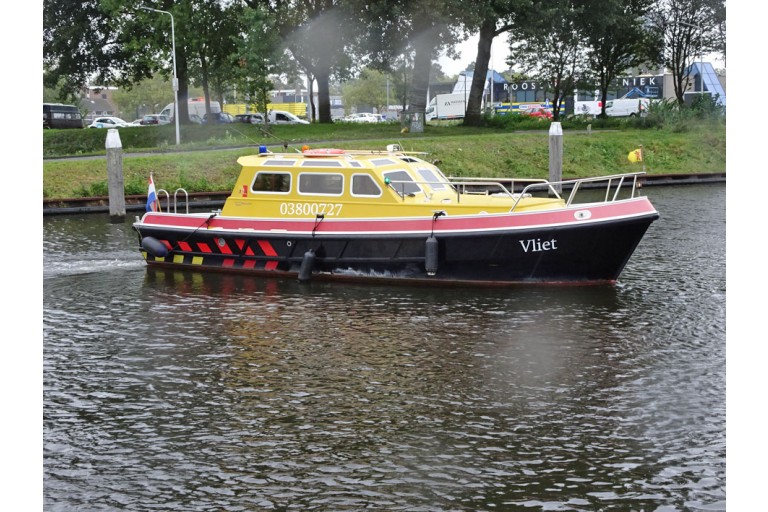

An inspection / patrol vessel specially built for the Dutch province of South Holland, and deployed by them, that is for sale after many years. The vessel has always been professionally maintained and therefore she can also directly be used by another government agency or, for example, a wet contractor. The vessel is certified for Zone 2 Netherlands and for the NL-Rijn Waal and Lek as well as for the EU Zone 3 and 4 waterways. There is an outside and inside steering position, a self-draining cockpit with benches in which the generator is placed, a wheelhouse with table and benches, in the front there is the toilet, a galley and a spacious desk. In our view, an excellent opportunity to acquire a young certified professional ship.
More information
General information
Yard:
Shipyard Vroegh en Alblas, NL-Aalst
Hull shape:
hard chine
Hull material:
steel
Deck material:
steel
Superstructure material:
steel
Construction method:

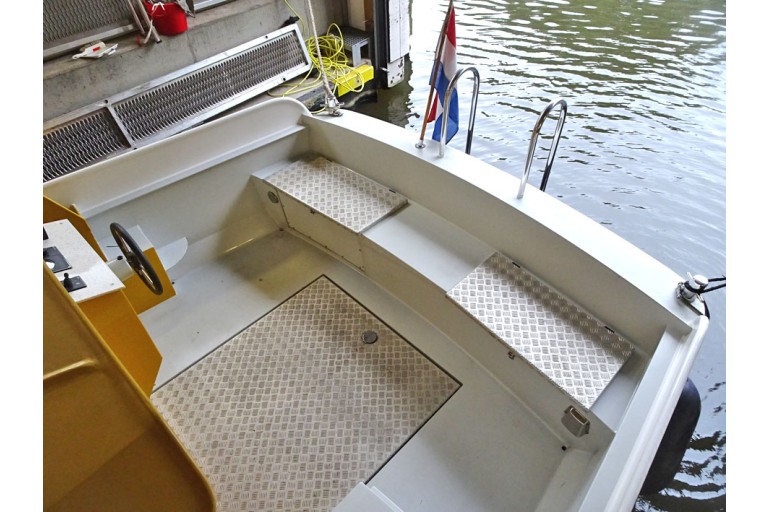

self-draining cockpit
3 watertight bulkhead(s)
stainless steel bollards
bulwark
rubber rubbing strake
3 watertight bulkhead(s)
stainless steel bollards
bulwark
rubber rubbing strake
Steering system:
hydraulic
wheel

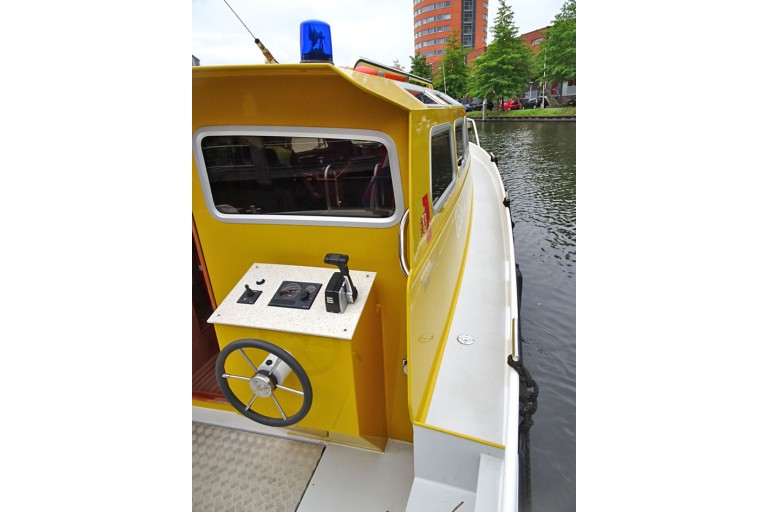

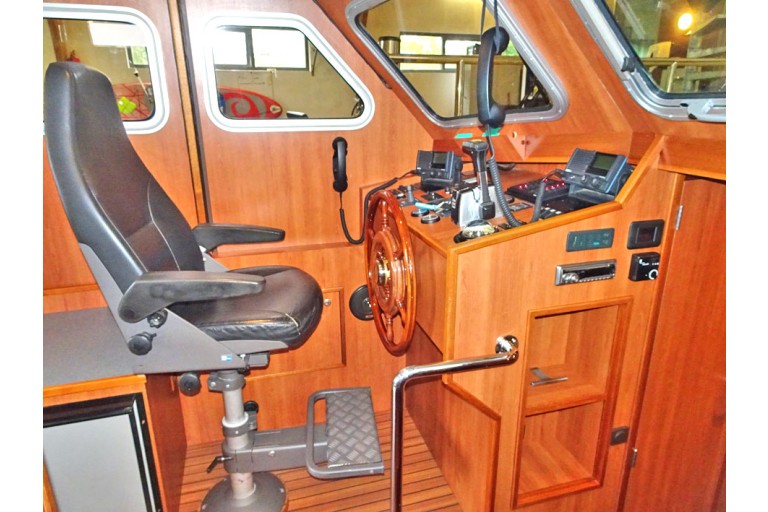

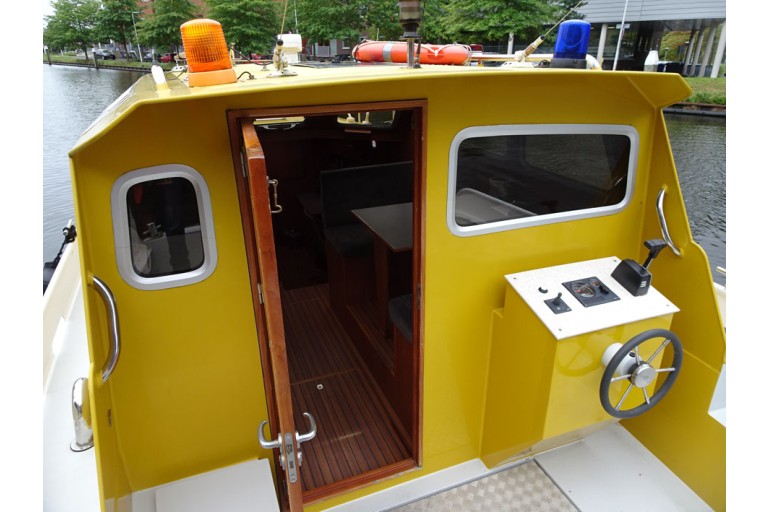

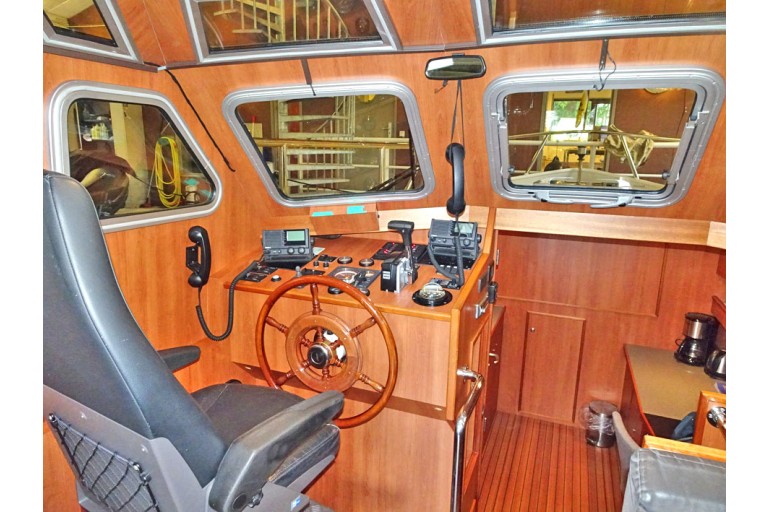

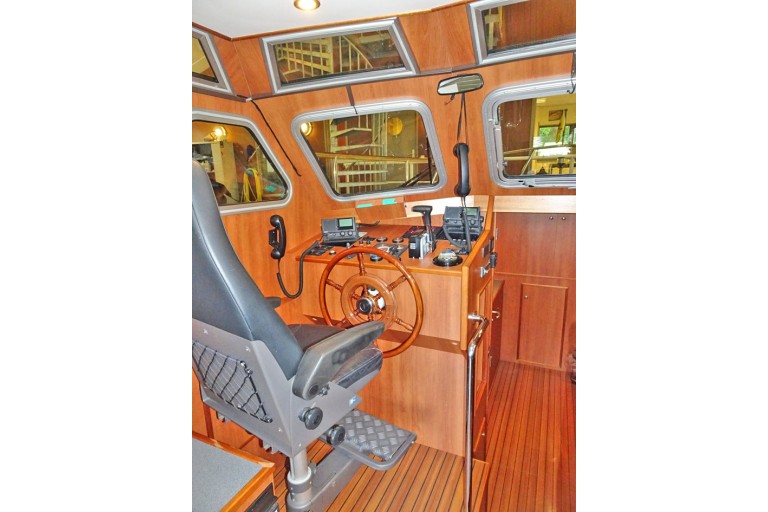

inside and outside steering position
wheel
inside and outside steering position

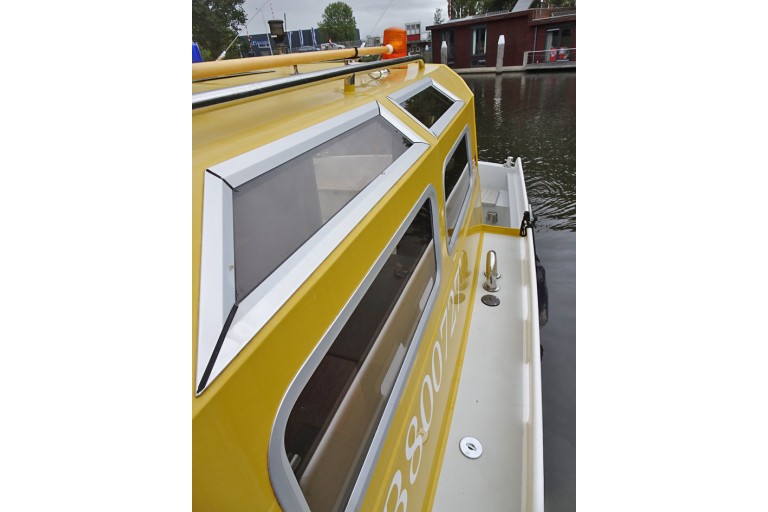

Windows:
aluminium windows frames
double glazing
toned glass
hardwooden door
double glazing
toned glass
hardwooden door
Displacement (approx.):
9,5 metric tons
Ballast (approx.):
trim ballast
Airdraft (approx.):
2,40 m everything down
Owner:
Dutch owner
Colour / Paint System:
two component system
blue hull
red striping
yellow superstructure
see photographs
blue hull
red striping
yellow superstructure
see photographs
Certificates:
inland waterways certificated (TRIWV / ES-TRIN)
zone 2 Netherlands
zone 3
zone 4
Waal, Lek & NL Rhine
valid until: 12-2024
zone 2 Netherlands
zone 3
zone 4
Waal, Lek & NL Rhine
valid until: 12-2024
Suitable for / as:
inspection vessel
patrol vessel
commercial shipping
survey vessel
patrol vessel
commercial shipping
survey vessel
General information:
good sailing characteristics
from first owner
from first owner
Additional information:
The relevant VAT will be due on the asking price if the vessel is purchased by a consumer or by a Dutch company (provided it concerns a Dutch seller). Sale at 0% VAT to a is eventually possible if the buyer meets the applicable VAT guidelines.
Great vessel for cruising on the European canals and rivers.
Great vessel for cruising on the French canals and rivers.
Given construction year is the year that the ship was ready and she was launched.
Great vessel for cruising on the European canals and rivers.
Great vessel for cruising on the French canals and rivers.
Given construction year is the year that the ship was ready and she was launched.
Technical information

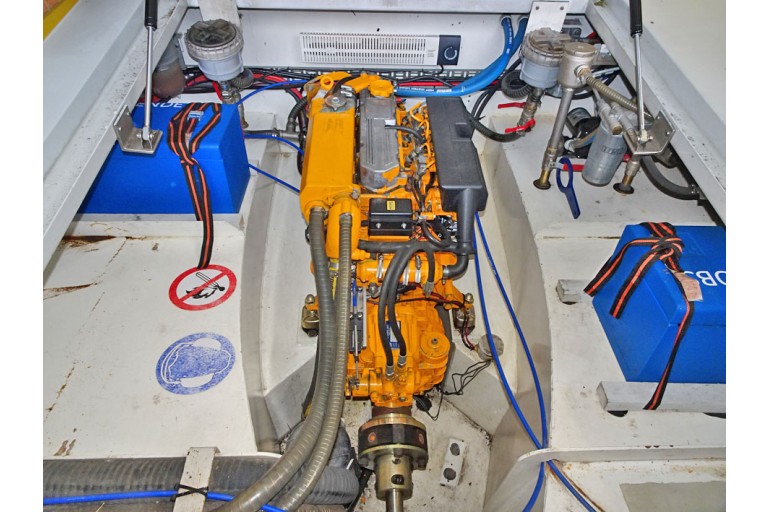

Enginepower:
42 Hp
30 kW
30 kW
Engine brand:
Vetus Mitsubishi
Revolutions:
3000 RPM
Engine model:
M417AH58A
Number of cylinders:
4
Construction year engine:
2008
Running hours (approx.):
7700 on the hour counter
Fuel:
diesel
Fuel tank (approx.):
200 litre
1 steel tank(s)
BOBS overflowing fuel safety system
1 steel tank(s)
BOBS overflowing fuel safety system
Cooling system:
intercooling
wet exhaust
wet exhaust
Propulsion:
4 blade propeller
water lubricated propeller shaft
water lubricated propeller shaft
Gearbox:
ZF 25-28
reduction/ratio 2,8:1
reduction/ratio 2,8:1
Heating:

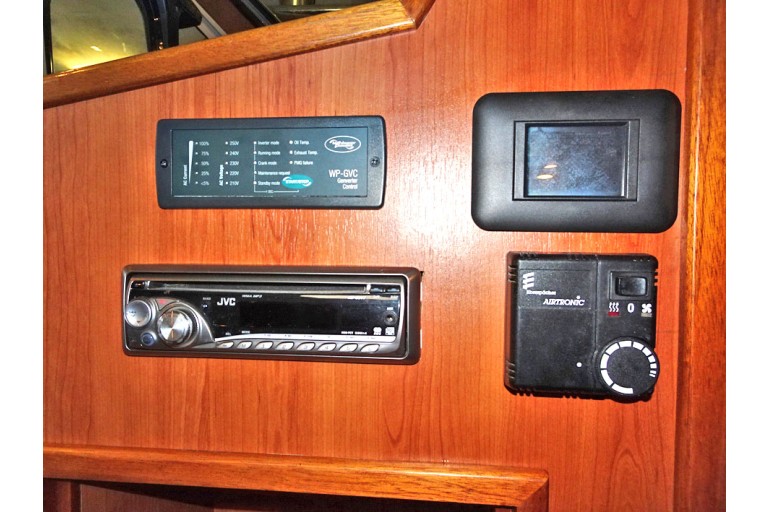

Eberspächer Airtronic D4 hot air heating
on diesel
on diesel
Bow thruster:
Vetus electric bow thruster
55 KGF
55 KGF
Electricity system:
12 / 230 Volt
230 Volt shore power connection
230 Volt shore power connection
Batteries:
1x 100 Ah bow thruster batterie(s)
1x 225 Ah domestic batterie(s)
1x 120 Ah starter batterie(s)
BMV-501 battery monitor
1x 225 Ah domestic batterie(s)
1x 120 Ah starter batterie(s)
BMV-501 battery monitor
Battery charger:

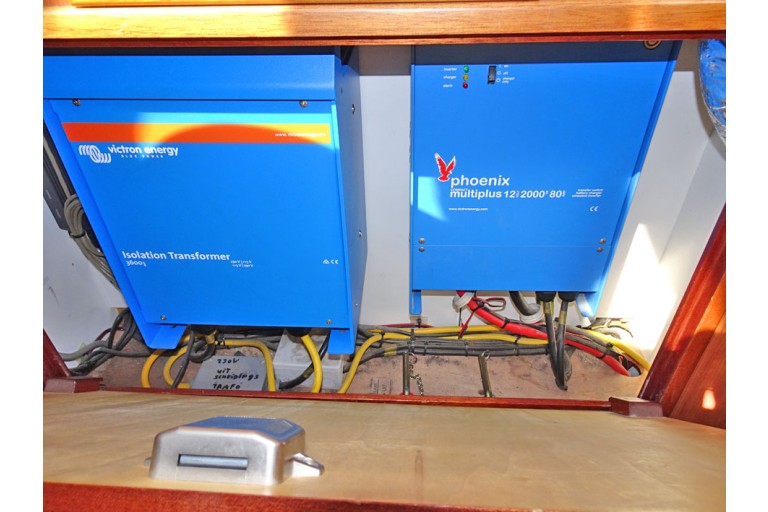

Victron Phoenix Compact Multiplus combi inverter/charger 12/2000/80
Isolation transformer:
Victron isolation transformer 3600 Watt
Earth-leakage breaker:
present
Genny:

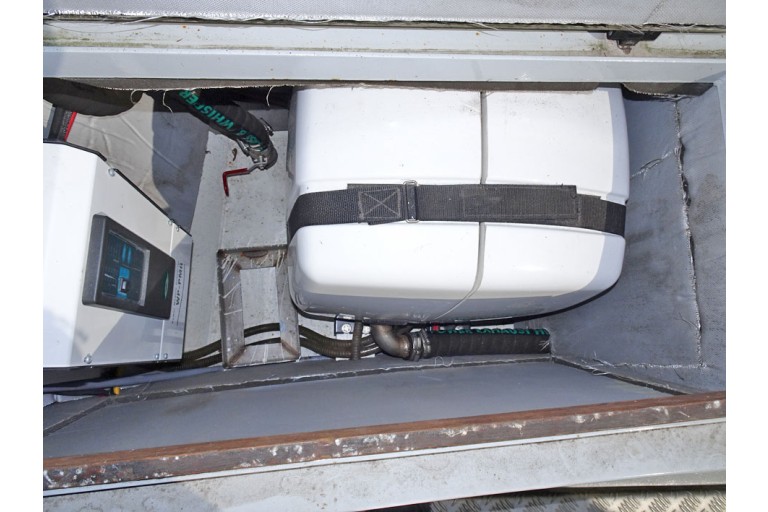

Whisper Power Picolo M-GV5 whisper set
4,4 kVA
230 Volt
wet exhaust with water separator
200 running hours (approx.)
4,4 kVA
230 Volt
wet exhaust with water separator
200 running hours (approx.)
Inverter:
Victron Phoenix Compact Multiplus combi inverter/charger 12/2000/80

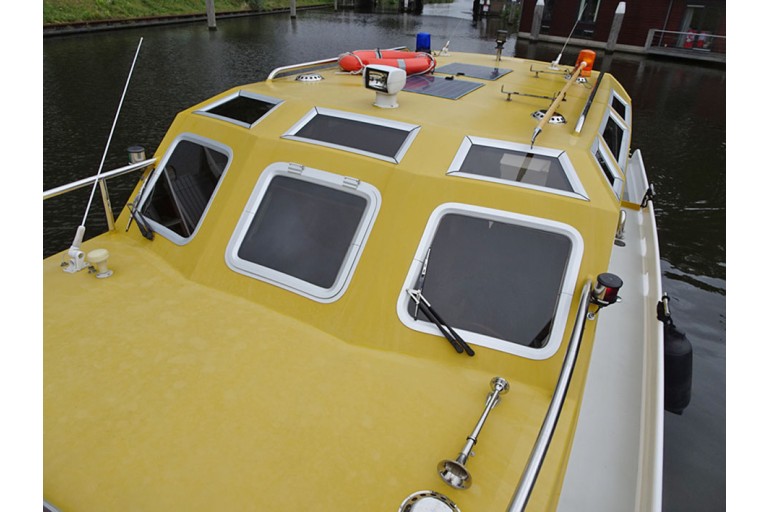

Solar panels:

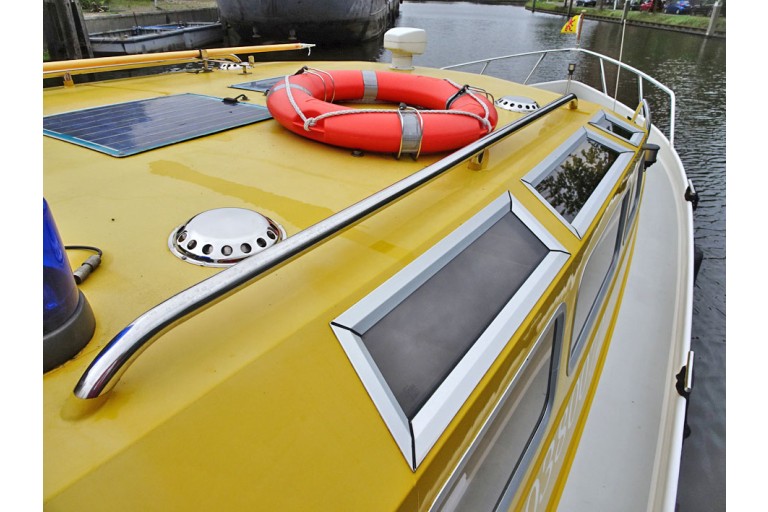

2x solar panel
Fresh water tank (approx.):
430 litre
2 plastic tank(s)
2 plastic tank(s)
Water pressure system:
hydrophore pump
Hot water system:
boiler/water calorifier via 230 Volt and engine cooling system
Holding tank (approx.):
50 litre
1 plastic tank(s)
1 plastic tank(s)
Bilge pump:
2 present
12 Volt
12 Volt
Gas system:
no gas on board
Accommodation

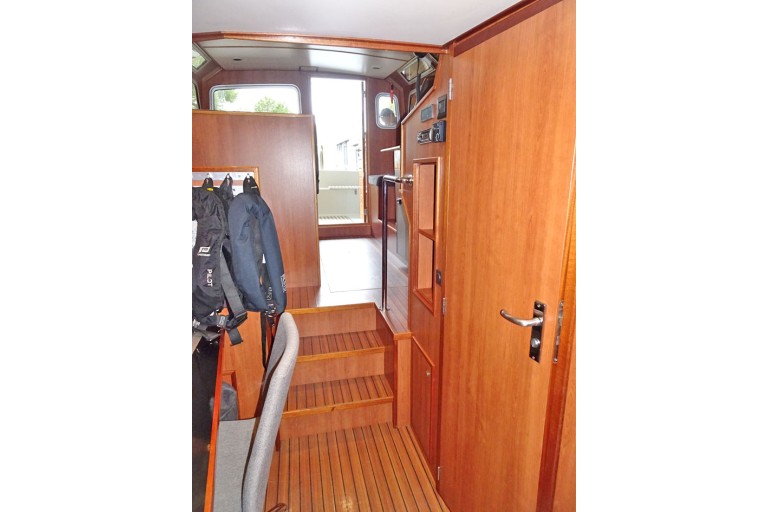

Interior:
mahogany interior
various materials have been used
see photographs
various materials have been used
see photographs
Insulation:
yes

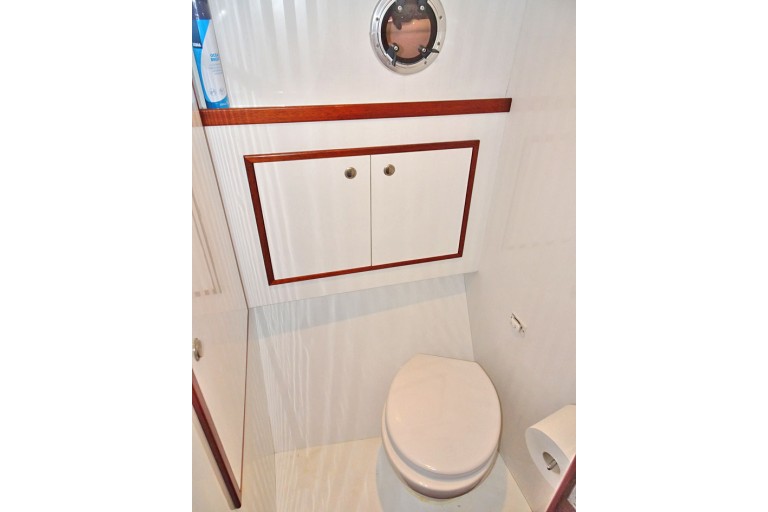

Toilet / Heads:
electric toilet

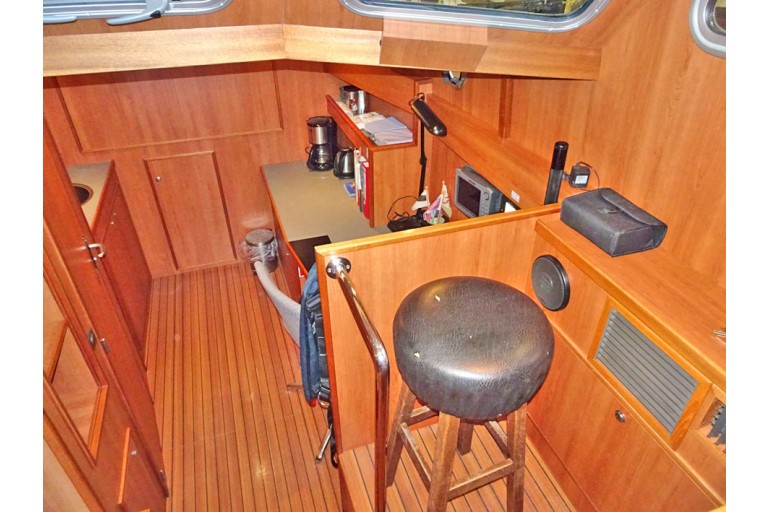

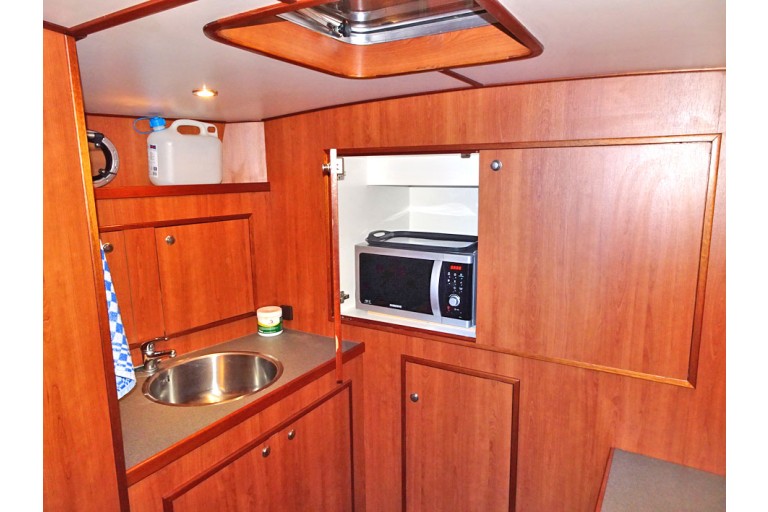

Galley:
along ships
Microwave:
present
Fridge / Refrigerator:
Isotherm fridge / refrigerator
Freezer:
small ice compartment
Worktop:
plastic worktop
Washbasin:
stainless steel sink
Water tap:
mixer tap with hot & cold running water
Entertainment:
radio/CD player
Headroom (approx.):
forward (approx.) 1,86 m
toilet (approx.) 1,84 m
wheelhouse (approx.) 1,97 m
toilet (approx.) 1,84 m
wheelhouse (approx.) 1,97 m
Equipment
Anchor equipment:
anchor with rope
Boarding ladder:
stainless steel

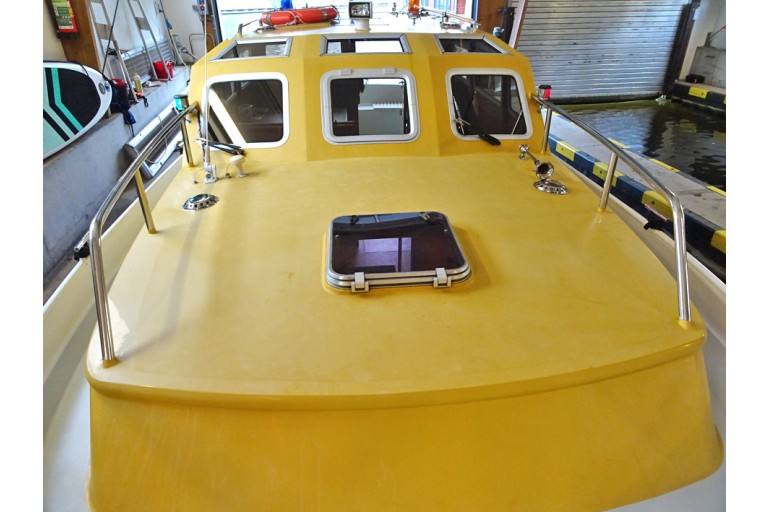

Searail / Pulpit:

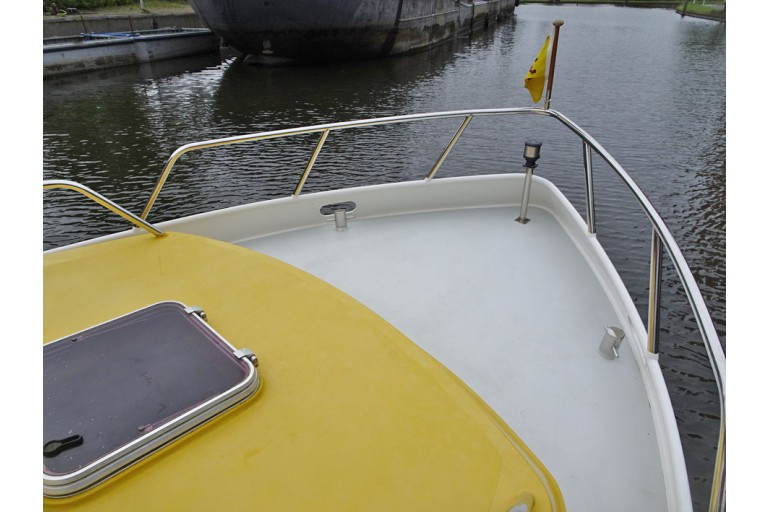

stainless steel bow pulpit
grab rail
grab rail
Safety:
fire extinguishers
life buoys
life jackets
according to the certification requirements
bilge alarm
fire blanket
life buoys
life jackets
according to the certification requirements
bilge alarm
fire blanket
Additional information:
Survey report of the underwatership is available (12-2017)

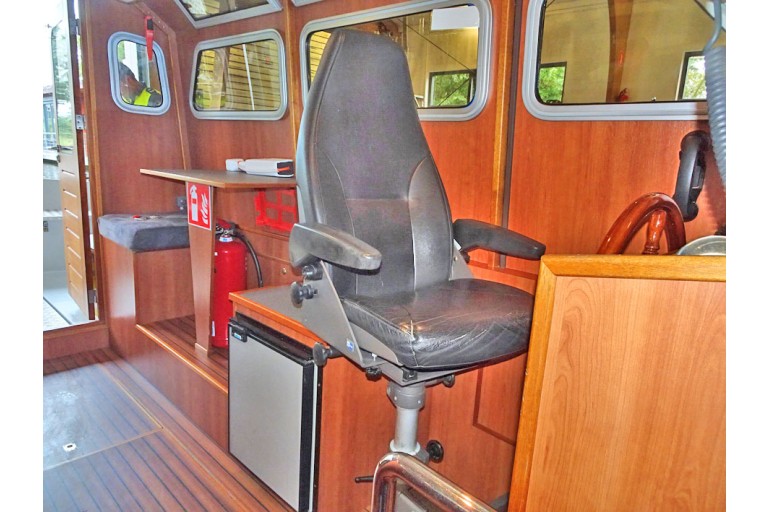

steering chair
steering chair
