Passenger vessel 200 pax, Rhine certificate Sold
Dimensions (m):
36.63 x 7.62 x 1.40
Ref. no.:
220701
Mooring:
Near Roermond, Netherlands
Construction year:
2010
Material:
steel
Vision Doeve Brokers

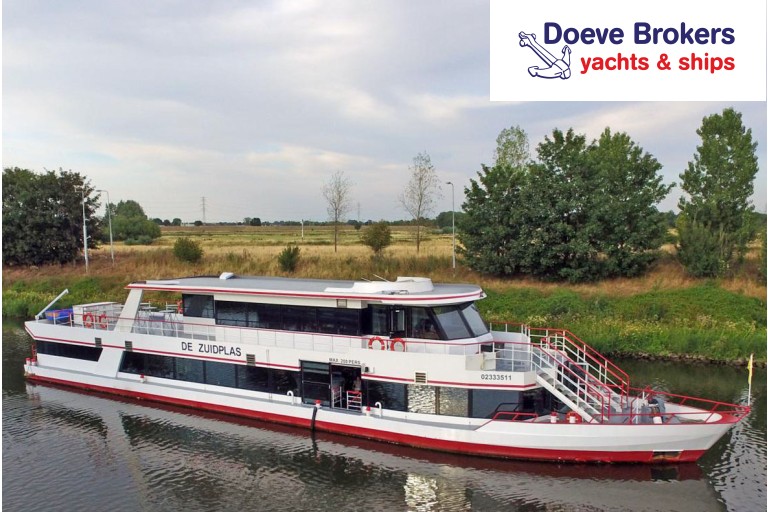

Passenger ship that was built in 2010 according to the very latest requirements for Rhine navigation. She is immediately available. On deck level there are the spacious salon with panoramic view that is accessible through 2 side doors, the main bar, the galley, the toilet area and the stairs to the upper deck where a 2nd salon with bar and the wheelhouse are located. From here you can also go outside. It is an unique boat that allows guests to walk safely to the main salon via the upper deck and foredeck. Tinted double glazing has been installed all around. It is a very good manoeuvrable ship with a 360° rotatable powerful bow thruster. There are 2 generators installed and a modern John Deere diesel for the propulsion. She is certified for Rhine navigation, which gives her a very large sailing area. With some additional ballast, she can also be sailed to the Danube where she can then be used again.
More information
General information
| Yard: | Shipyard Gebr. Jooren, NL- Werkendam |
| Hull shape: | hard chine |
| Hull material: | steel |
| Deck material: | steel |
| Superstructure material: | steel |
| Construction method: | 9 watertight bulkhead(s) rubbing strake closed bollard cabinets |
| Steering system: | hydraulic power steering follow up steering & joystick = emergency steering |
| Windows: | double glazing toned glass aluminium outside doors |
| Displacement (approx.): | maximum allowable displacement 293,087 m³ displacement in empty condition 247,008 m³ displacement 46,079 m³ |
| Ballast (approx.): | 1 ballast tank(s) |
| Airdraft (approx.): | 6,25 m everything down |
| Owner: | Dutch owner |
| Registration: | Dutch registered B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |
| Colour / Paint System: | white superstructure two component basic system one component finish some overdue maintenance see photographs 11-2019 last underwatership treatment |
| Certificates: | Rhine certificated (ROSR) open sea to Basel Is equal to: EU zone 3 & 4 valid until: 01-2025 200 Passengers |
| Suitable for / as: | passengers vessel restaurant gastronomy pancake restaurant commercial shipping |
| Additional information: | 200 day guests The techniques used on board are commercial shipping quality. Great vessel for cruising on the European canals and rivers. forepeak |
Technical information
| Enginepower: | 305 Hp 224 kW |
| Engine brand: | John Deere |
| Revolutions: | 2100 RPM |
| Engine model: | 6081AFM75 |
| Number of cylinders: | 6 |
| Construction year engine: | 2010 into operation |
| Running hours (approx.): | 4000 (07-2022) |
| Fuel: | diesel |
| Fuel tank (approx.): | 9000 litre 1 steel tank(s) BOBS overflowing fuel safety system |
| Cooling system: | closed box cooler |
| Propulsion: | 5 blade propeller De Waal Stuwa oil bath propeller stern tube |
| Gearbox: | Dong-I DMT 140H hydraulic reduction/ratio 3,46:1 |
| Speed (approx.): | 12 km/hour cruising speed at 1800 RPM 14,5 km/hour top speed |
| Heating: | ACV central heating (11-2021) combi boiler on diesel |
| Bow thruster: | Van Wijk electric bow thruster 400 Volt 360 degrees turnable |
| Electricity system: | 24 / 230 / 400 Volt 400 Volt shore power connection professionally installed system |
| Batteries: | 2x 230 Ah emergency batterie(s) 1x 105 Ah starter batterie(s) generator 2x 155 Ah starter batterie(s) 1x 105 Ah starter batterie(s) generator |
| Battery charger: | LBC412-B battery charger 12/10 |
| Genny: | 1x John Deere 159 kVA 230/400 Volt, 1500 RPM 1x John Deere 50 kVA 230/400 Volt, 1500 RPM diesel 2x closed cooling system box cooler |
| Fresh water tank (approx.): | 10000 litre 1 steel tank(s) |
| Water pressure system: | hydrophore pump |
| Fresh water filter system: | Wyclomar fresh water filter system |
| Hot water system: | through the central heating |
| Holding tank (approx.): | 10000 litre 1 steel tank(s) |
| Diesel waterseparator: | present |
| Engineroom: | insulated engineroom very well maintained see photographs |
| Bilge pump: | 2x general service pump electric pump with manifold also deckwash pump |
| Gas system: | no gas on board |
| Additional information: | LED lightning air compressor Hobalt electric engine control system |
Accommodation
| Interior: | various materials have been used modern interior carpet on the floor(s) ceiling systems see photographs |
| Insulation: | yes |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | shower thermostat tap washbasin with mixer tap and hot & cold running water |
| Toilet / Heads: | lady's room: toilet washbasin cold running water men's room: 2x urinal disabled toilet room: = men's room toilet washbasin cold running water |
| Galley: | along ships professionally equipped galley |
| Cooker: | 2-burner hob induction cooker cookerhood stainless steel |
| Oven: | Rational combi steamer oven stainless steel |
| Fridge / Refrigerator: | 1 walk-in cold room with 230 volt refrigerator compressor 1 beer fridge 5x fridge / refrigerator 2x bottles cooler 1 refrigerated counter |
| Freezer: | 1 freezer 230 Volt |
| Worktop: | stainless steel worktop |
| Washbasin: | stainless steel sink |
| Water tap: | mixer tap with hot & cold running water |
| Dishwasher: | 1 Winterhalter pass-through dishwasher |
| Entertainment: | intercom/music system |
| Headroom (approx.): | wheelhouse (approx.) 2,31 m bathroom (approx.) 2,29 m above (approx.) 2,38 m bar (approx.) 2,08 m salon (approx.) 2,35 m bar (approx.) 2,14 m corridor / walkthrough (approx.) 2,13 m toilet (approx.) 2,22 m galley (approx.) 2,11 m |
| Additional information: | 2x stainless steel deep fat fryer 2x coffee machine 4x beer tap |
Navigation equipment
| Navigation equipment: | Radio Zeeland Sigma 500 river autopilot (follow-up steering ) Radio Zeeland Sigma 100 rudder indicator Radio Zeeland Sigma 300 rate-of-turn indicator 2x Radio Ocean RO4700 VHF with DSC Heftronic HT120 intercom Cruiser depth / echosounder ComNav Voyager X3 Automatic Identification System (AIS) window wiper blue board with oscillating light horn navigation lights camera system |
Rigging and sails
| Mast: | lantern mast aluminium |
| Lowerable: | yes electric |
Equipment
| Anchor equipment: | electric anchor winch (400 Volt) Pool anchor 47 m anchor cable in hawse-hole specified length(s) is/are approximate |
| Searail / Pulpit: | guardrail around upperdeck |
| Dinghy: | Plastic |
| Davits: | present |
| Safety: | 200 life jackets 7 inflatable life jackets 7 life buoys 9 fire extinguishers 2x automatic fire extinguishing system in engine room fire blanket fire alarm system according to the certification requirements |
| Additional information: | 2x aluminium gangway deck lights steering chair sundeck Survey report of the underwatership is available (11-2019) |
