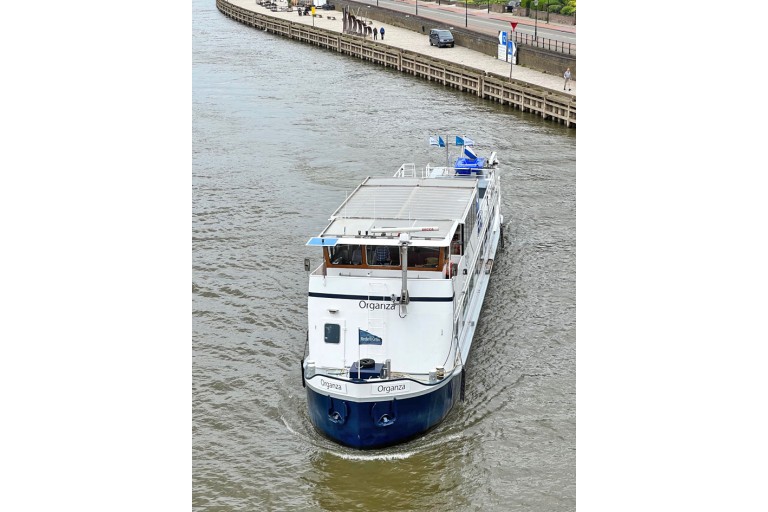

Day Passengership 150 pax zone 2 Sold
Vision Doeve Brokers

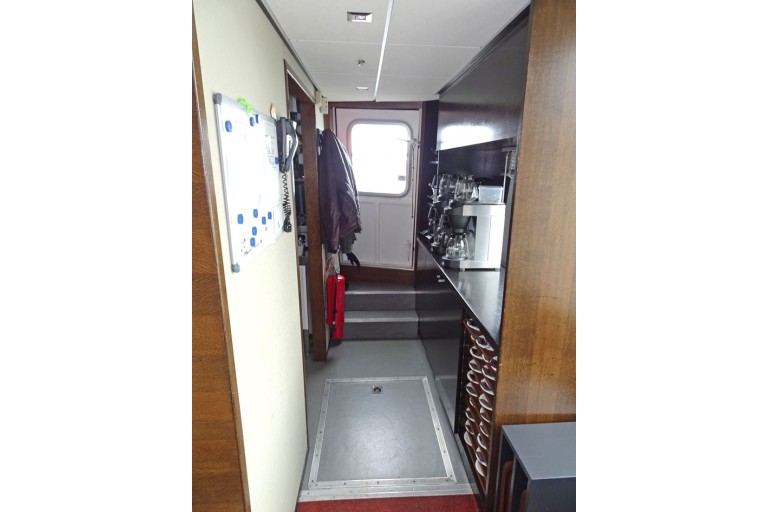

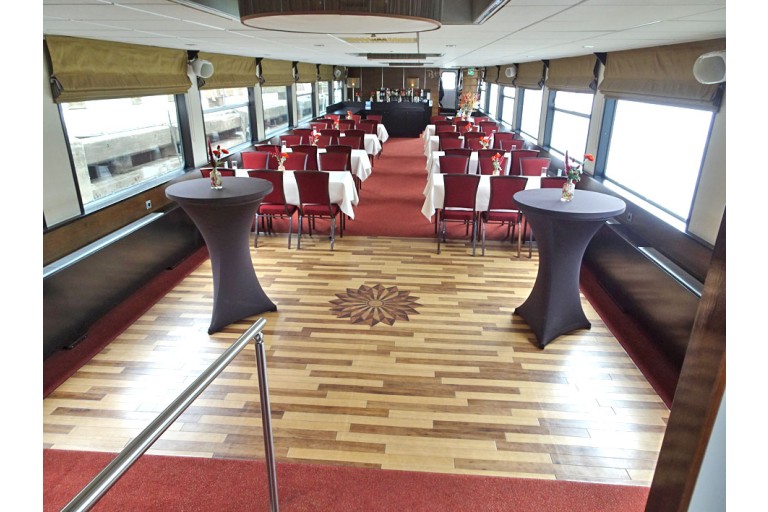

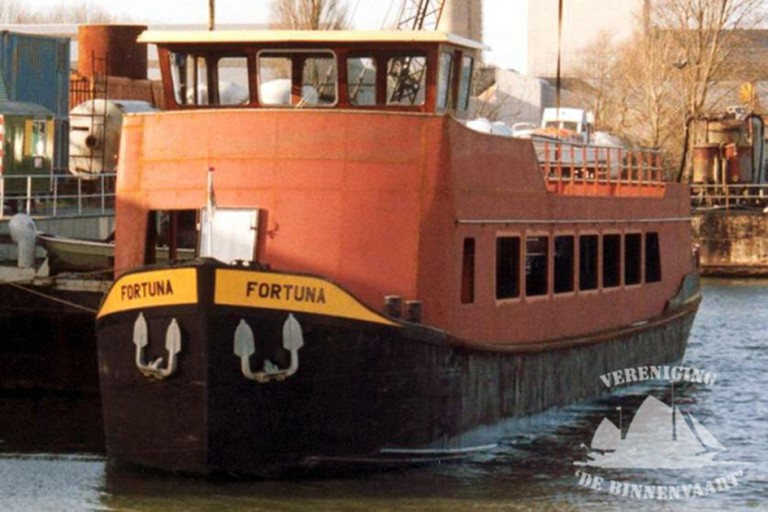

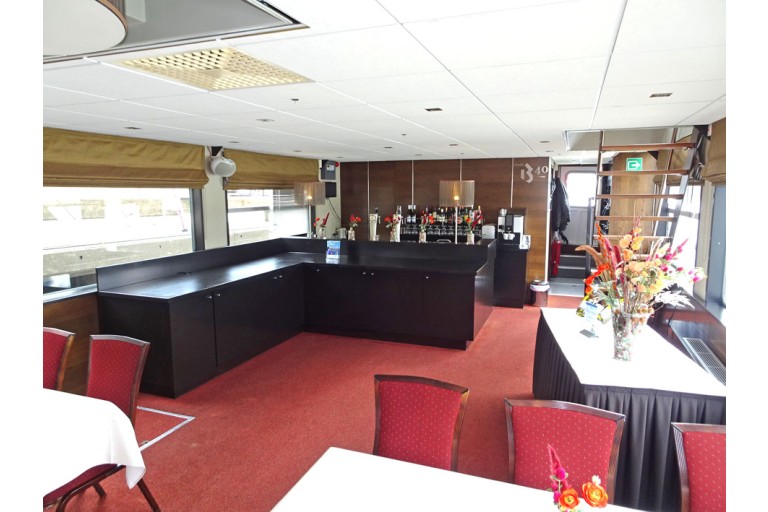

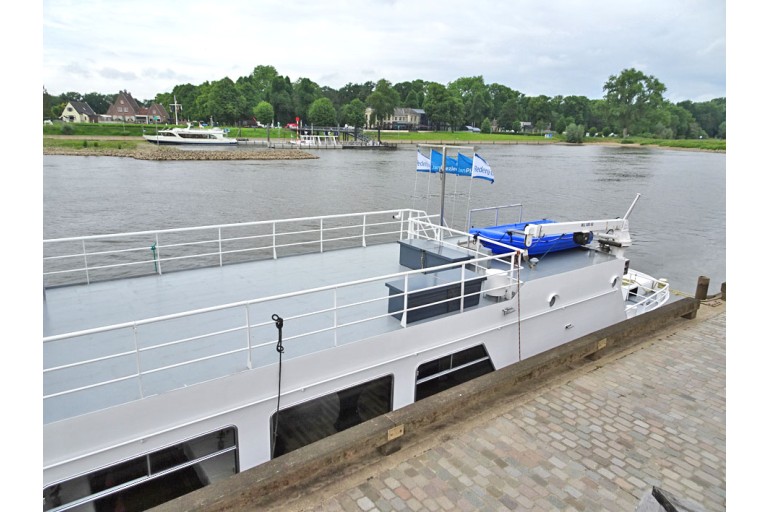

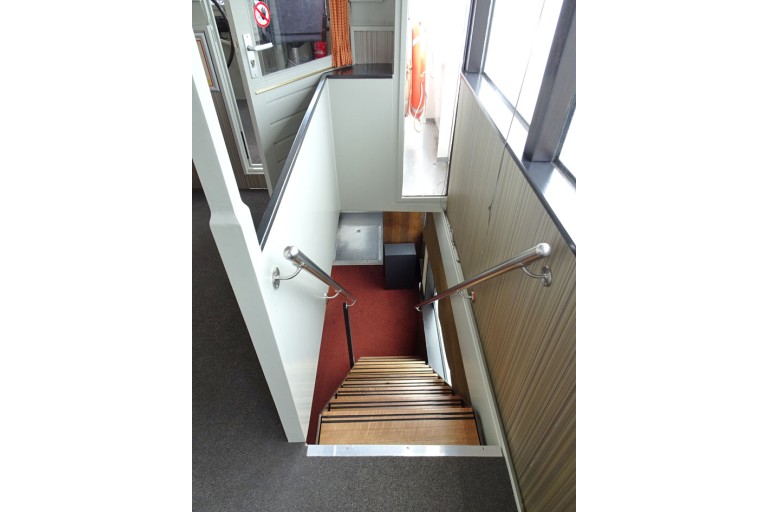

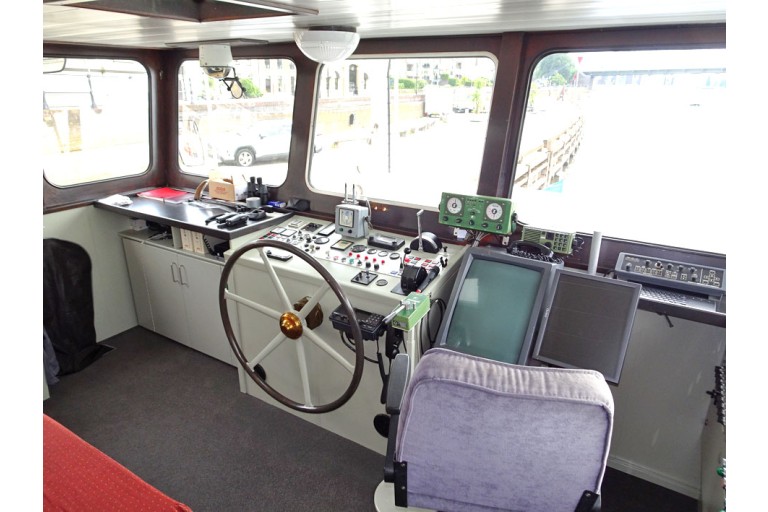

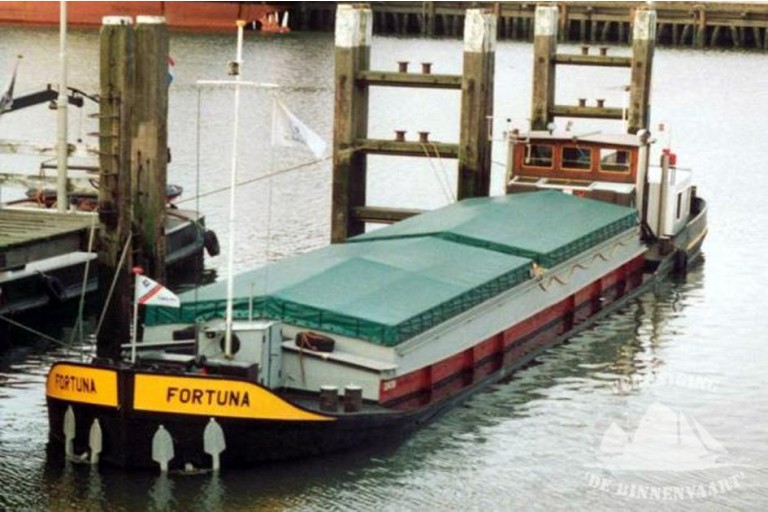

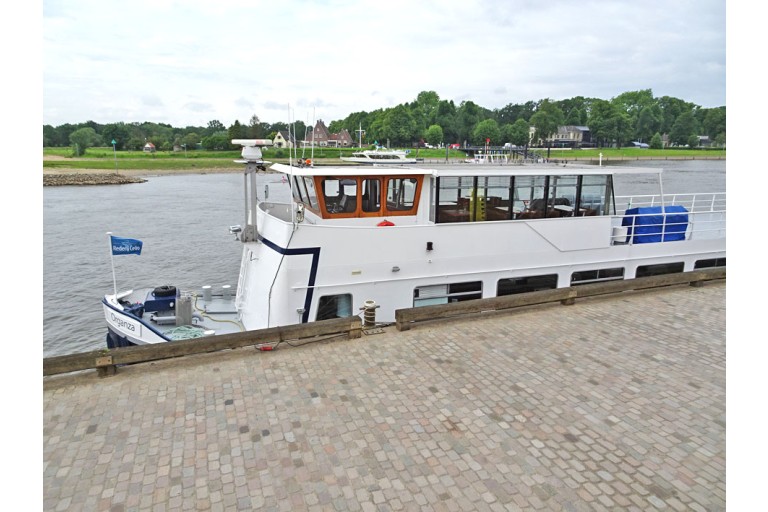

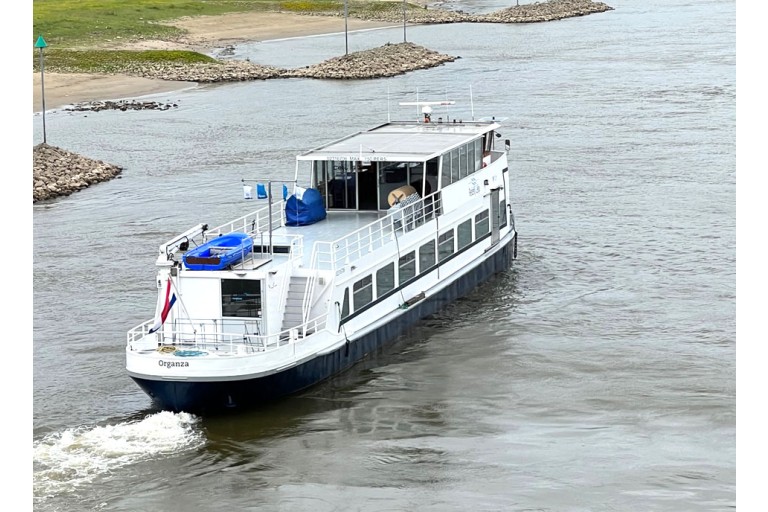

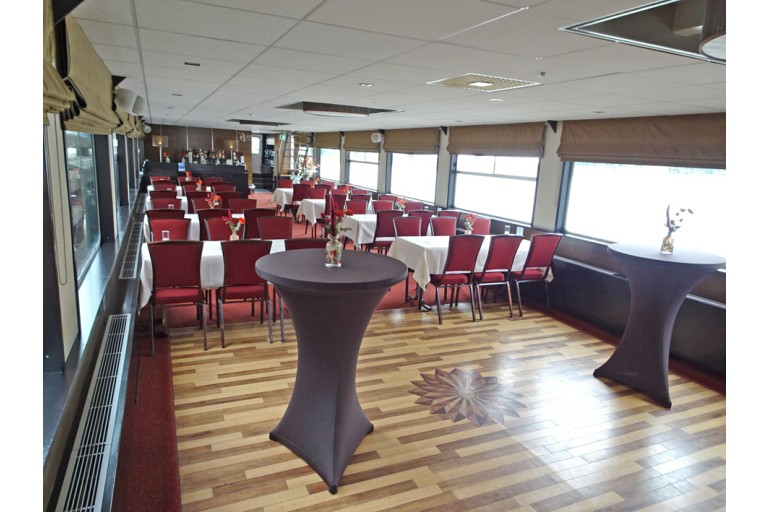

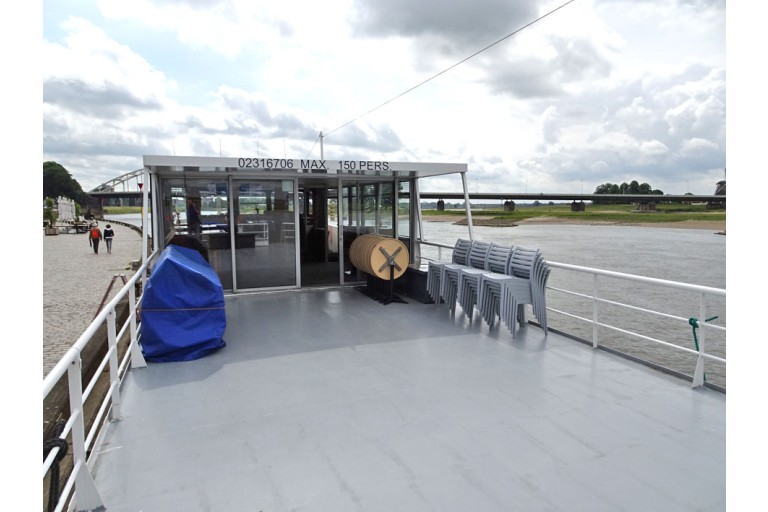

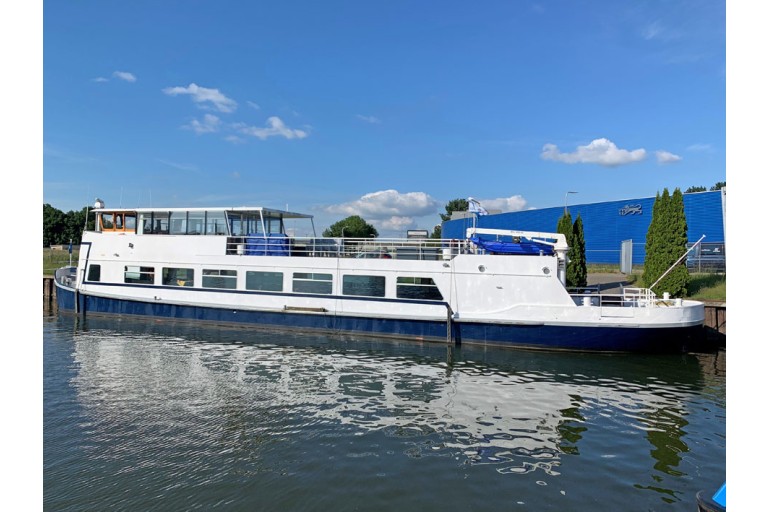

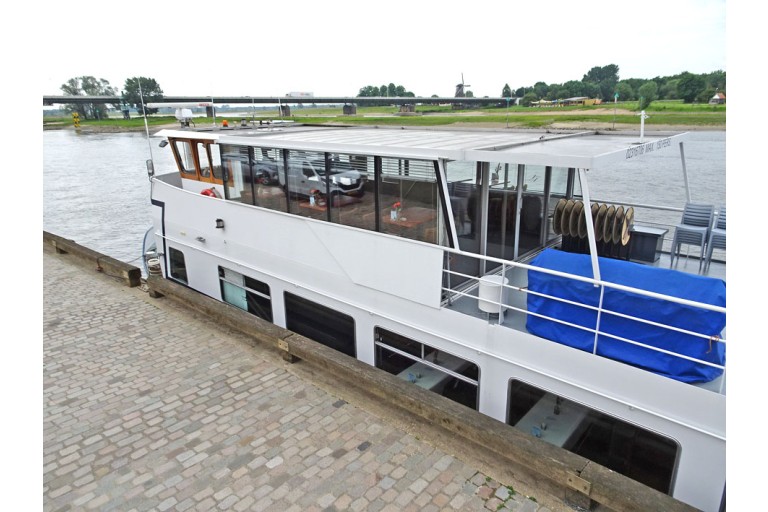

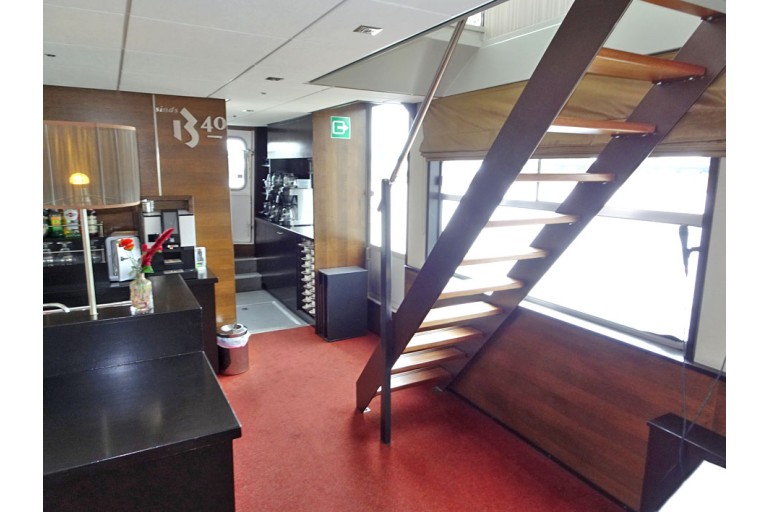

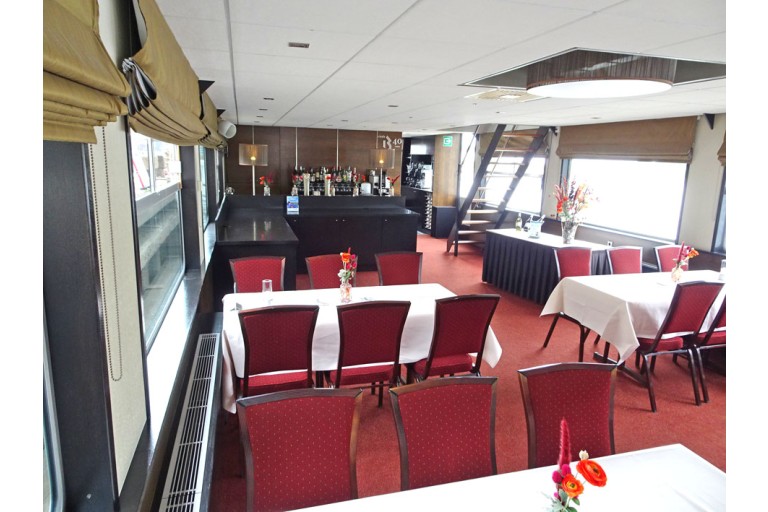

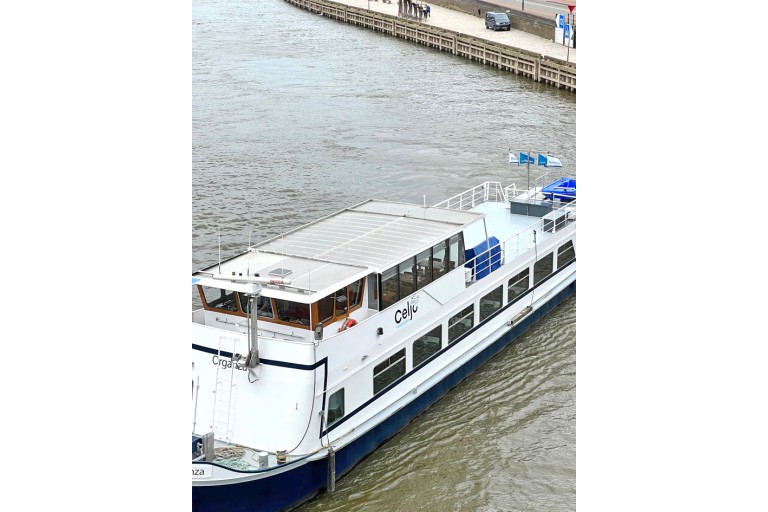

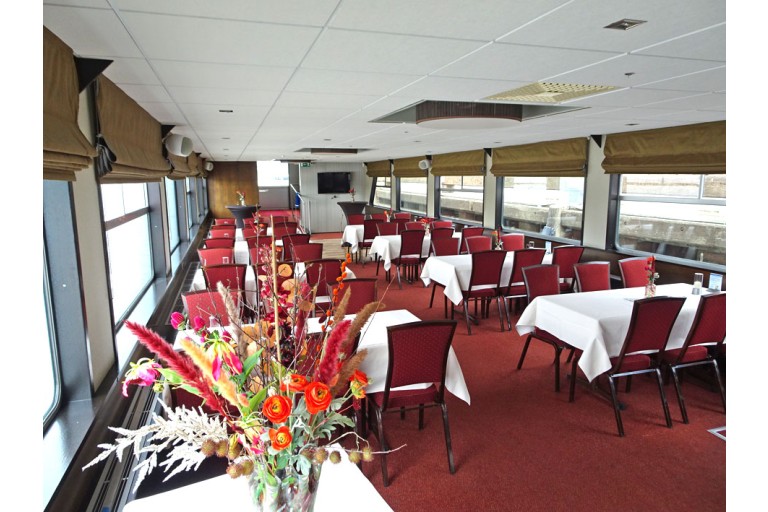

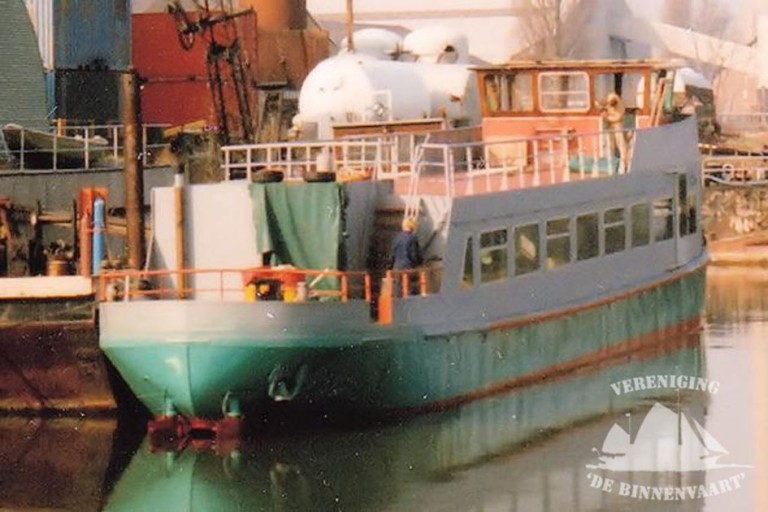

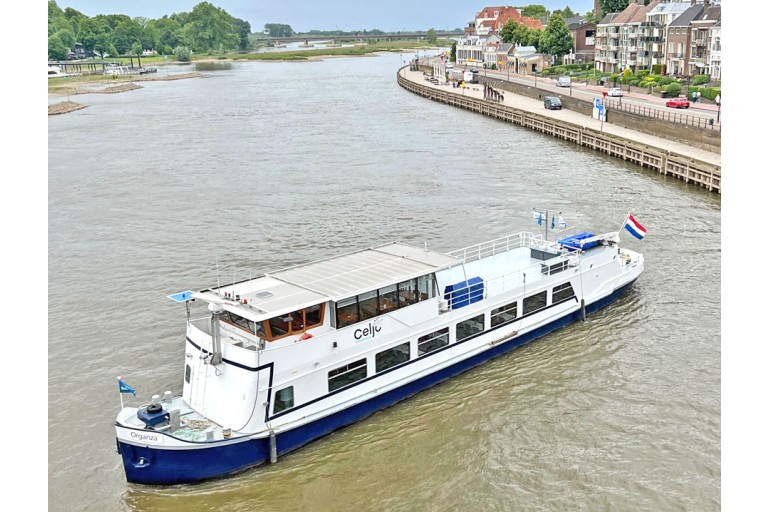

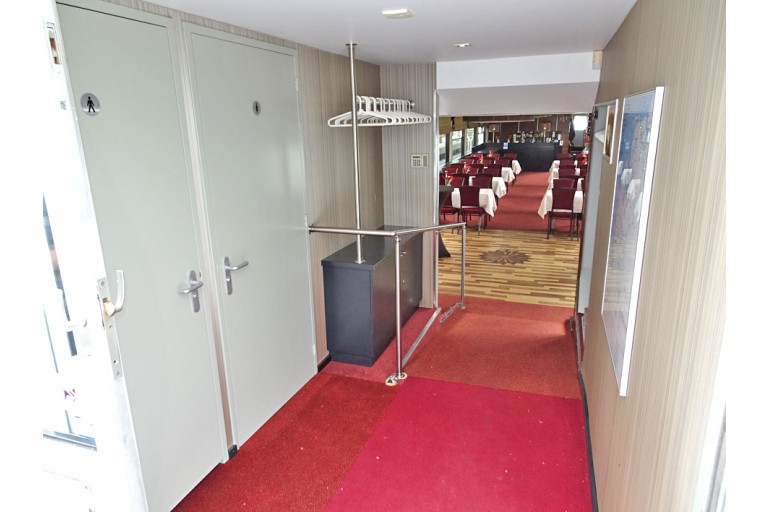

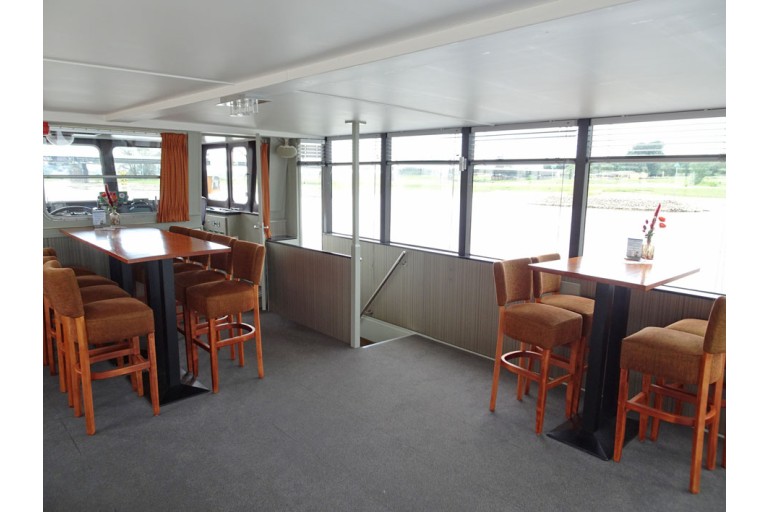

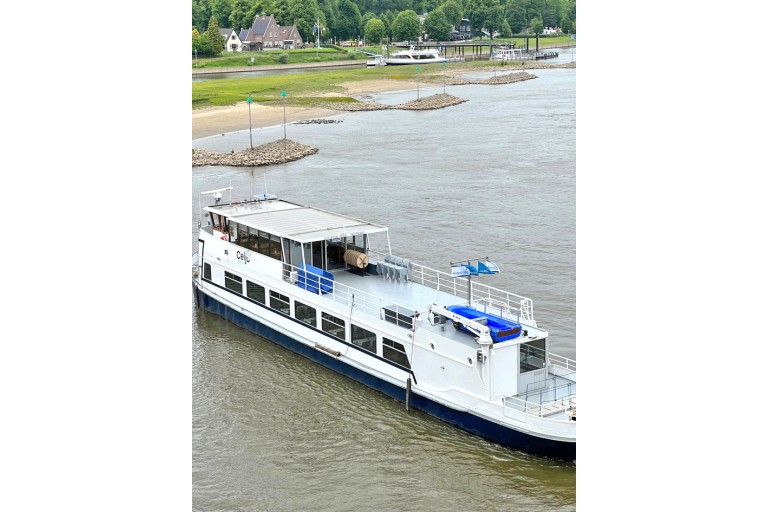

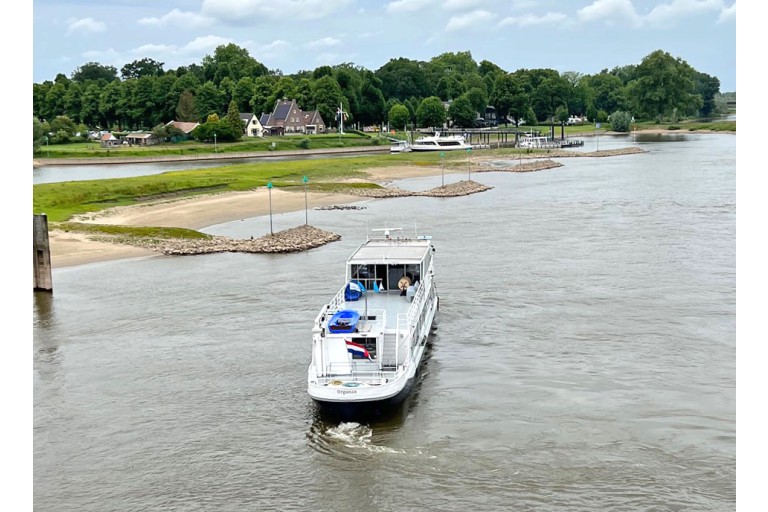

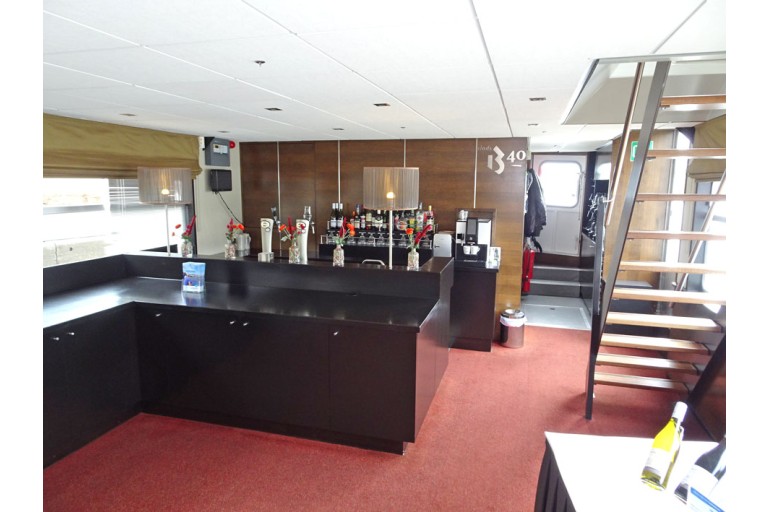

An inland barge built as a freighter for the rivers Rhine and Lahn, which was converted in 1992 into a passenger ship / party boat / tour boat for 150 day passengers. The current owners take good care of the vessel and that is reflected in the state of maintenance. In 2003, for example, a new engine was installed. There are 2 toilets, one is also suitable for the disabled, a spacious lounge with bar and further forward is the kitchen which is equipped with all necessary equipment. Under the salon there is a lot of storage space and there is even a spacious walk-in cooling. The upper salon is accessible from the salon, from where the sundeck can be reached through the sliding doors. This can also be reached from the aft deck. The wheelhouse, with professional equipment, is accessible via the upper salon. In our view, a ship that can compete with much younger ships in terms of equipment, state of maintenance and capabilities, since her air draft is just under 6.00 meters.
More information
General information
Yard: | Shipyard Christoph Ruthof, D-Mainz Kastel |
Rebuilt year: | 1992 complete 2008 interior |
Hull shape: | flatbottom |
Hull material: | steel |
Deck material: | steel |
Superstructure material: | steel teak top side of the wheelhouse |
Construction method: | riveted and welded rubbing strake around 6 watertight bulkhead(s) |
Steering system: | hydraulic wheel power steering & electric steering |
Windows: | aluminium windows frames double glazing |
Displacement (approx.): | maximum allowable displacement 146,776 m³ displacement in empty condition 104,081 m³ displacement 42,695 m³ |
Ballast (approx.): | concrete blocks |
Airdraft (approx.): | 5,95 m everything down |
Owner: | Dutch owner |
Registration: | Dutch registered B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |

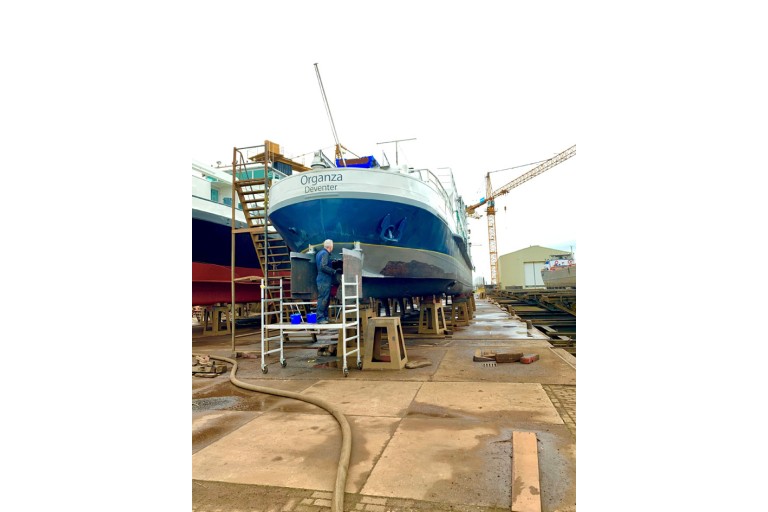

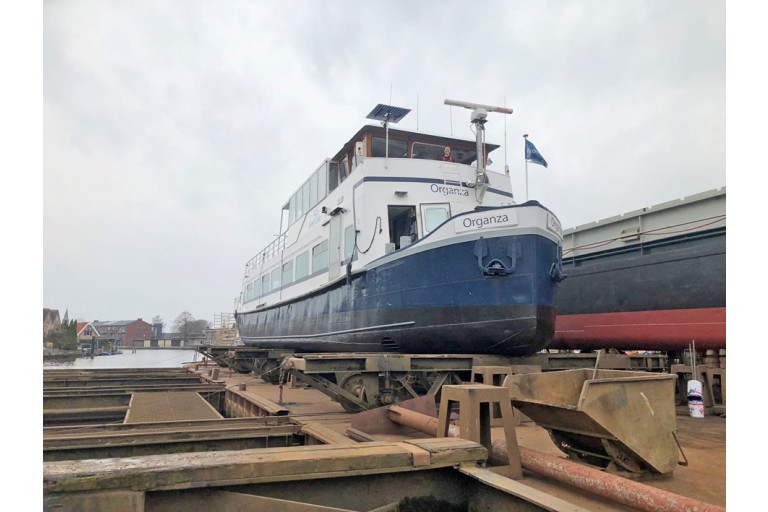

Colour / Paint System: | blue hull white superstructure very well maintained last underwatership treatment 03-2021 |
Certificates: | inland waterways certificated (TRIWV / ES-TRIN) zone 2 Netherlands zone 3 zone 4 Waal, Lek & NL Rhine valid until: 03-2026 |
Suitable for / as: | passengers vessel inland waterways |
General information: | Hand over in consultation. |
Additional information: | 150 day guests Hull shape is suitable for drying out. Great vessel for cruising on the European canals and rivers. |
Technical information

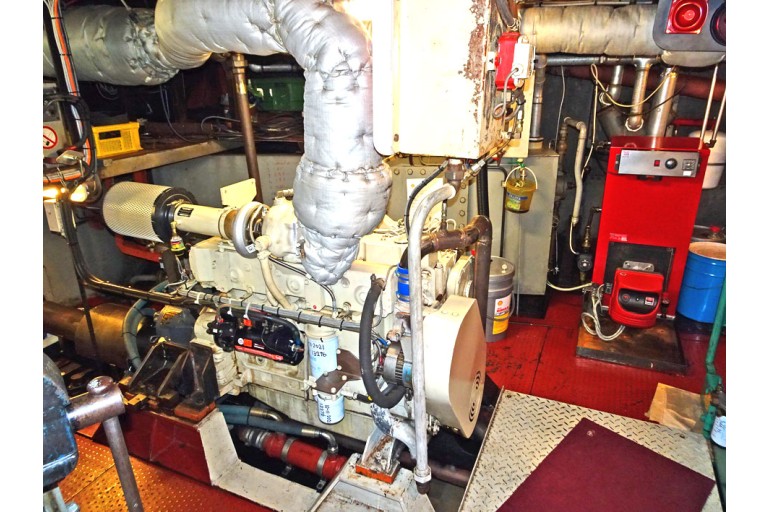

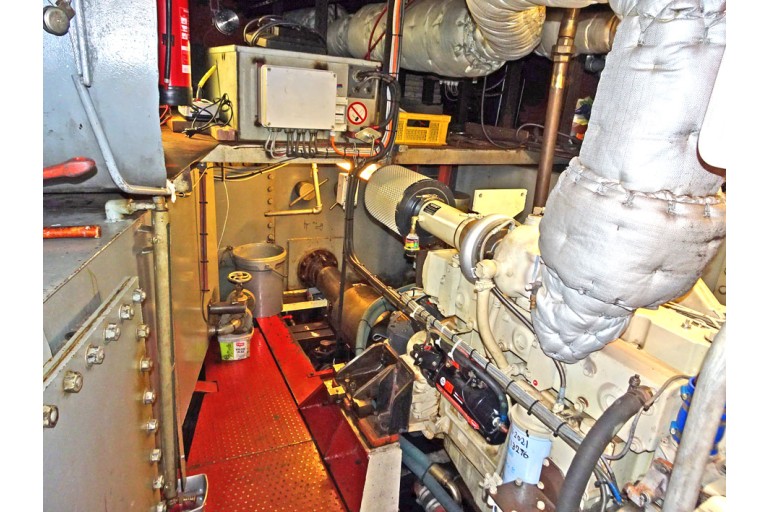

Enginepower: | 255 Hp 190 kW |
Engine brand: | Cummins |
Revolutions: | 1800 RPM |
Engine model: | 6CTA8.3M1 |
Number of cylinders: | 6 |
Construction year engine: | 2003 |
Running hours (approx.): | 13500 on the hour counter |
Fuel: | diesel |
Fuel tank (approx.): | 2x 1500 litre 2x 150 litre steel tank(s) |
Cooling system: | closed box cooler |

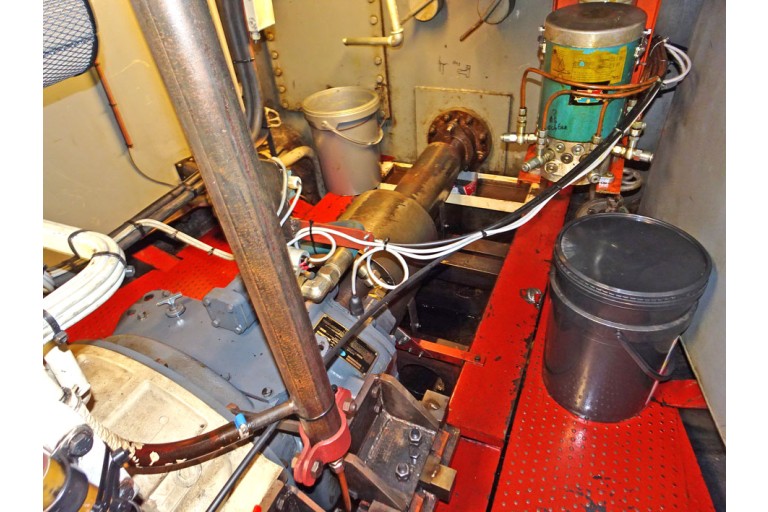

Propulsion: | 4 blade propeller greased lubrication of propeller shaft greasing device |
Gearbox: | Twin Disc MG5091SC hydraulic (2003) reduction/ratio 3,38:1 |
Speed (approx.): | 16,5 km/hour top speed 15 km/hour cruising speed at 1500 RPM |
Heating: | Kabola B25 central heating on diesel |
Bow thruster: | bow thruster with dieselengine 105 Hp DAF 575 |
Electricity system: | 24 / 230 / 400 Volt 400 Volt shore power connection |
Batteries: | 2x 240 Ah starter batterie(s) 1x 100 Ah starter batterie(s) generator 1x 100 Ah starter batterie(s) generator 2x 240 Ah bow thruster batterie(s) |
Battery charger: | Victron Skylla-TG battery charger 24-50 |

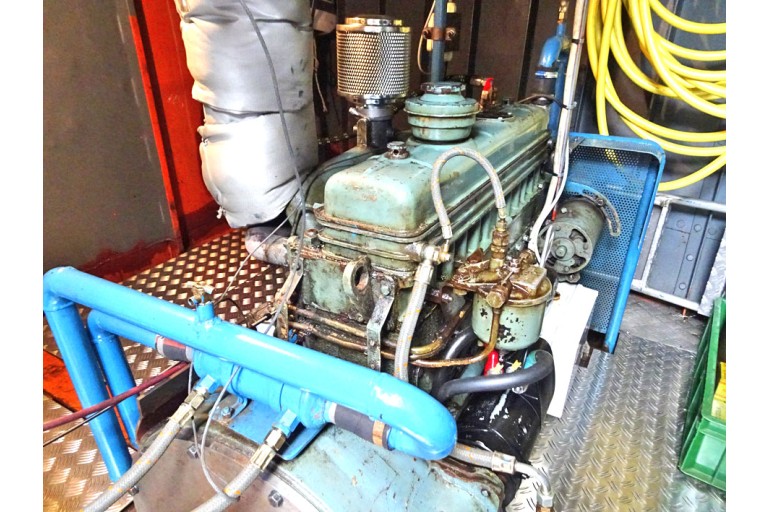

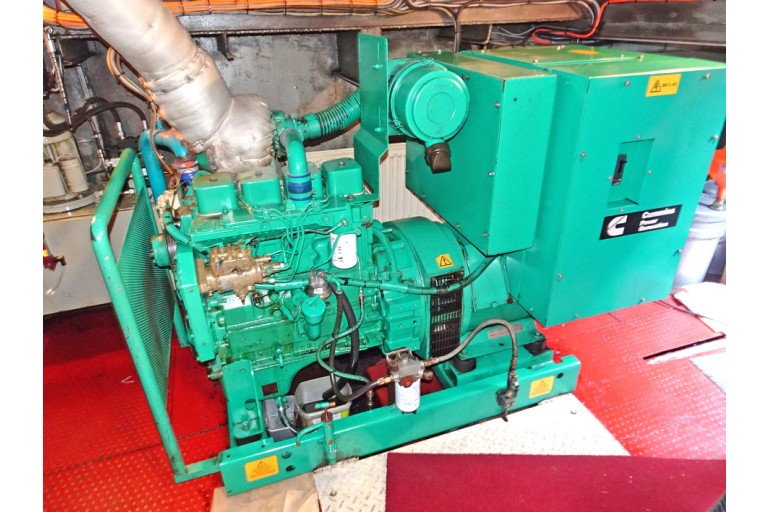

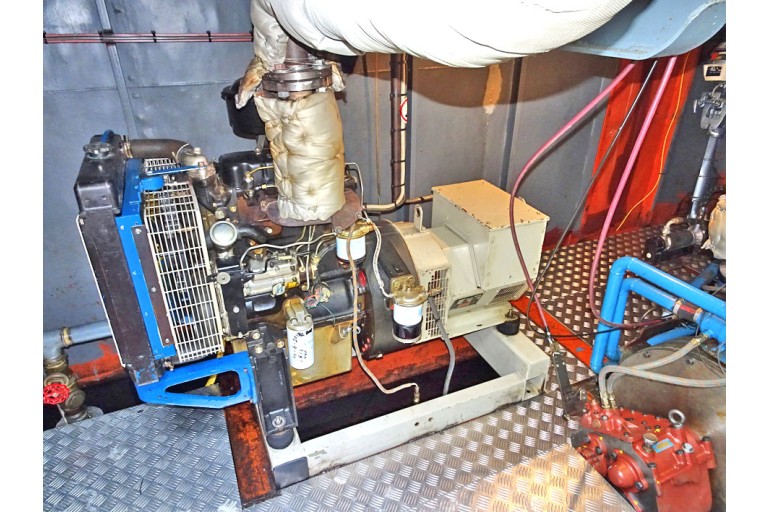

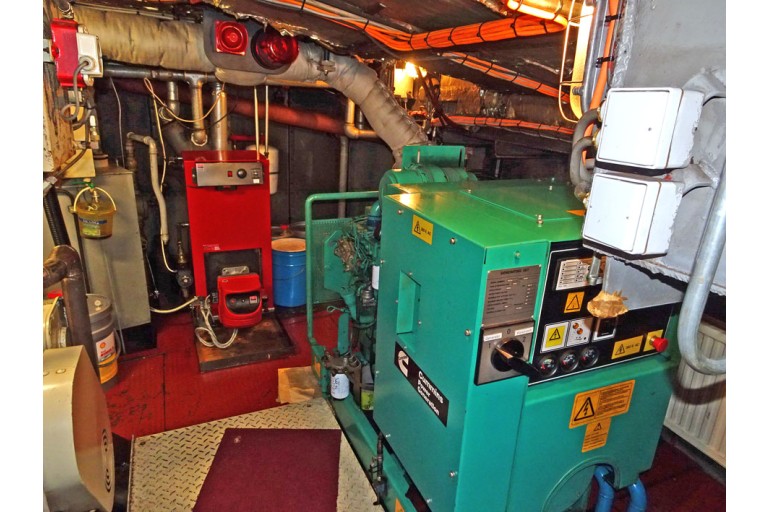

Genny: | 10/10 kVA 230 Volt Perkins diesel 1500 RPM 30500 running hours (approx.) 42,5 kVA 230/400 Volt Cummins diesel 1500 RPM 37500 running hours (approx.) |
Fresh water tank (approx.): | 1x 12000 litre steel tank(s) cemented tank(s) |
Water pressure system: | hydrophore pump |
Hot water system: | boiler/water calorifier (230 Volt) |
Holding tank (approx.): | 2x 1750 litre plastic tank(s) |
Diesel waterseparator: | present |

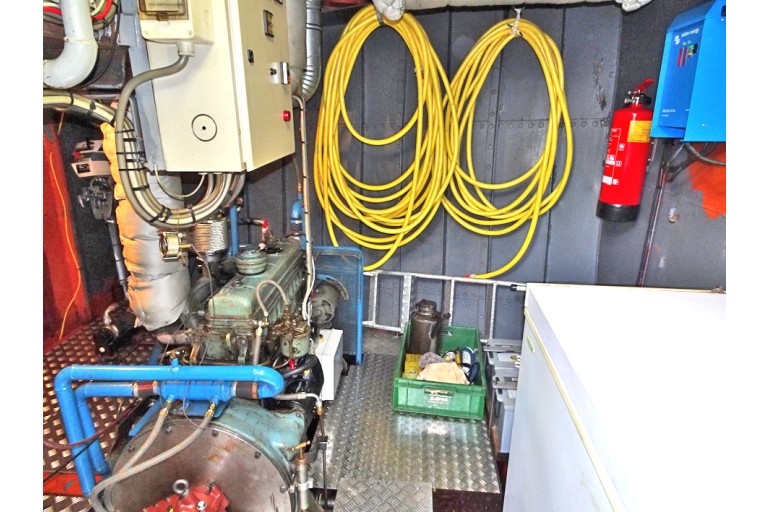

Engineroom: | very well maintained |
Bilge pump: | present 230 Volt with manifold & with auxiliary engine |
Deck wash pump: | present 230 Volt |
Gas system: | no gas on board |
Additional information: | spare propeller electric engine control system |
Accommodation
Interior: | various materials have been used very well maintained see photographs |
Insulation: | yes |

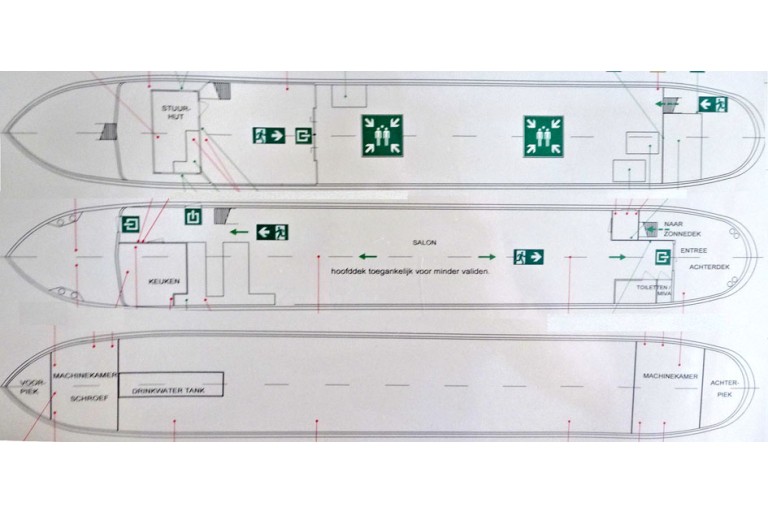

Lay-out plan (not to scale): | see attachment |

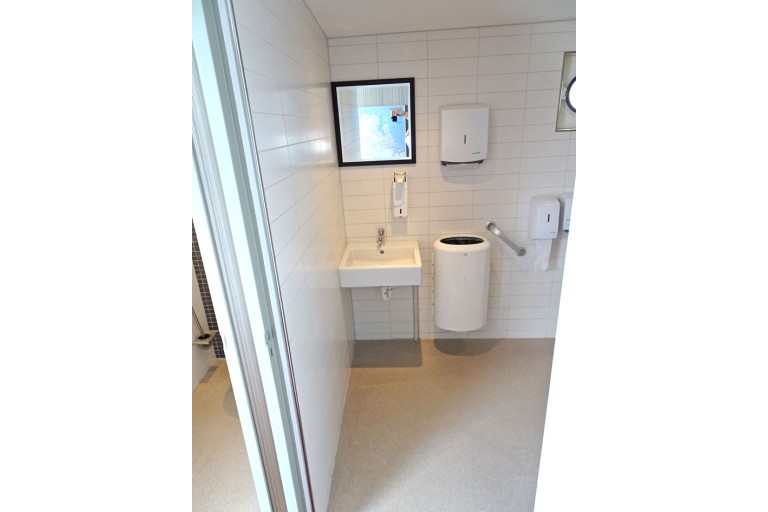

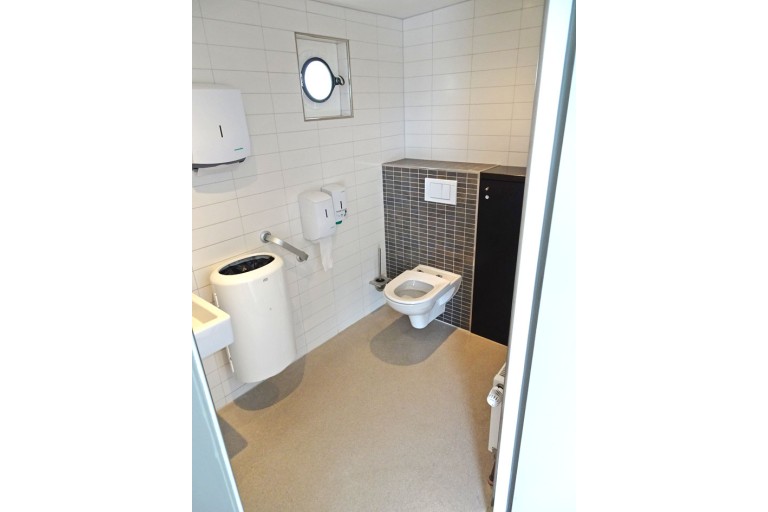

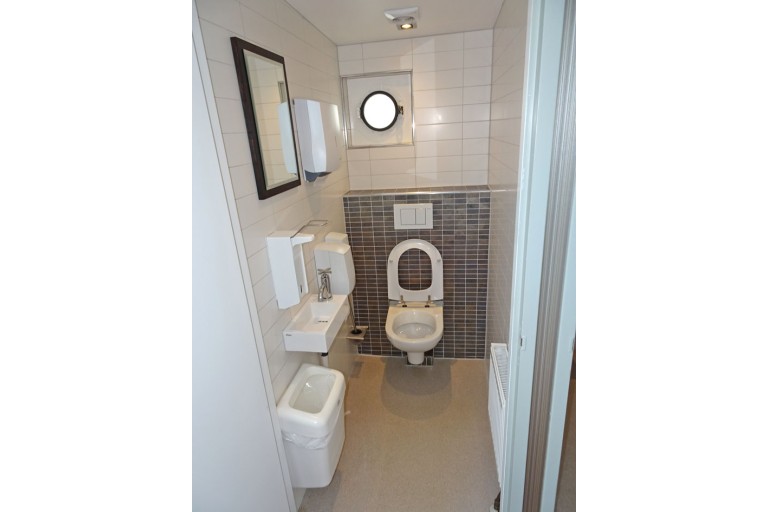

Toilet / Heads: | lady's room: suitable for disabled toilet washbasin cold running water men's room: toilet washbasin cold running water |

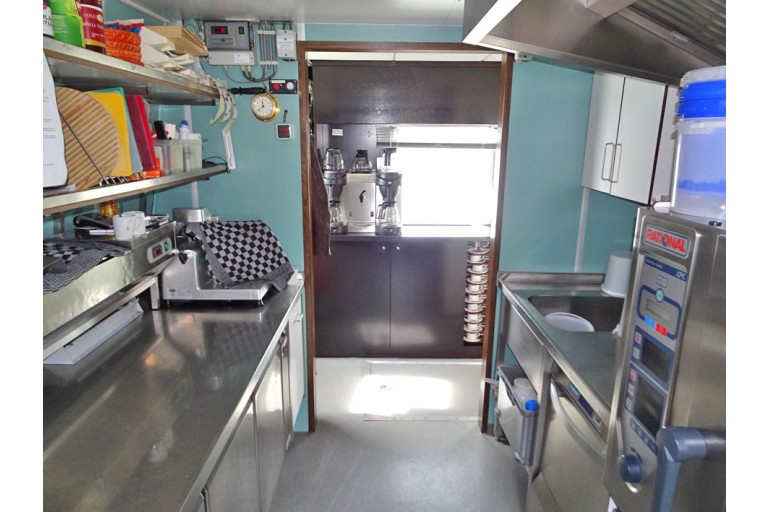

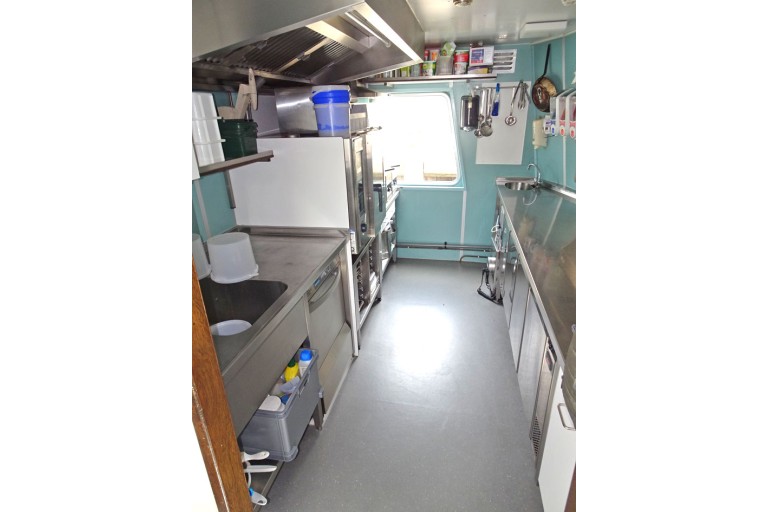

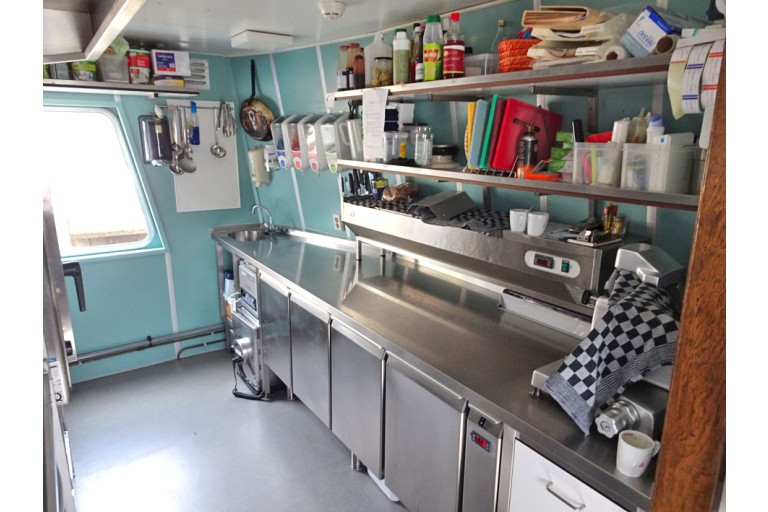

Galley: | sideways |
Cooker: | Modular 2-burner hob electric cooker stainless steel |
Oven: | Rational combi steamer oven |

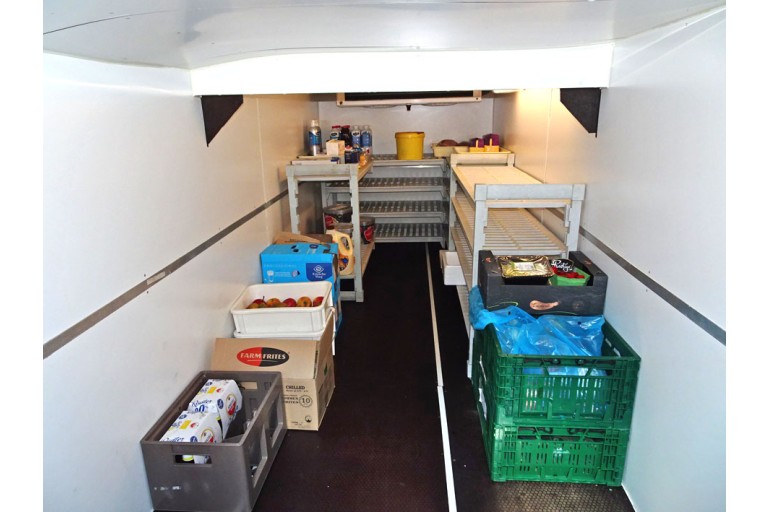

Fridge / Refrigerator: | refrigerated counter walk-in cold room with 230 volt refrigerator compressor 3x bottles cooler |
Freezer: | 2x freezer 230 Volt |
Worktop: | stainless steel worktop |
Washbasin: | stainless steel sink |
Water tap: | mixer tap with hot & cold running water |
Dishwasher: | Winterhalter dishwasher |

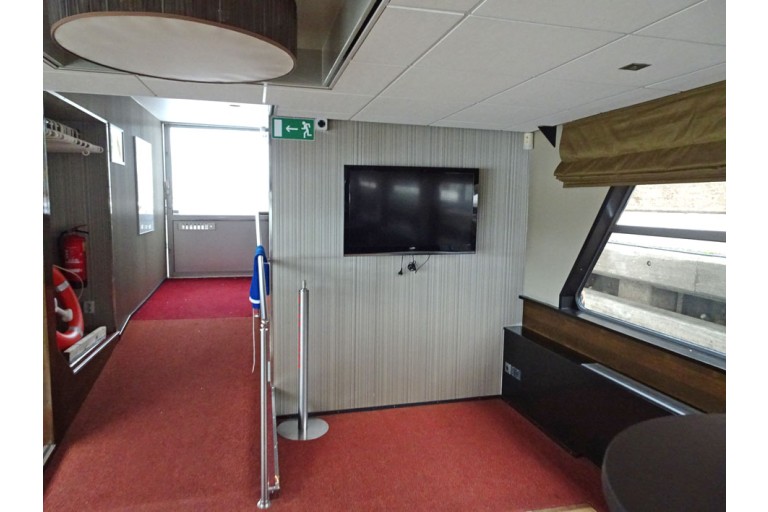

Entertainment: | flatscreen TV intercom/music system |
Headroom (approx.): | wheelhouse (approx.) 2,01 m salon (approx.) 2,22 m corridor / walkthrough (approx.) 2,16 m toilet (approx.) 2,16 m bar (approx.) 2,22 m galley (approx.) 2,22 m above (approx.) 2,14 m |
Additional information: | 2x stainless steel deep fat fryer Henkelman vacuum packaging machine Hot cupboard slicer cooling top Full charter inventory is present. lots of storage space Winterhalter ice-cube maker beer tap coffee machine |
Navigation equipment
Navigation equipment: | Radio Zeeland Euro 500 rate-of-turn indicator Radio Zeeland Euro 500 rudder indicator Stuurboord techniek rudder indicator Radio Zeeland Euro 500 / 600 river autopilot (follow-up steering ) Radio Zeeland Euro 500 / 600 follow up steering Em-Trak A100 Automatic Identification System (AIS) Sailor 6248 VHF Sailor RT2048 VHF Racal Decca RiverMaster daylight radar blue board with oscillating light horn 2x portofoon search light window wiper navigation lights Tresco chartplotter depth / echosounder intercom compass tachograph |
Rigging and sails
Mast: | apparatus wing radarmast |
Equipment

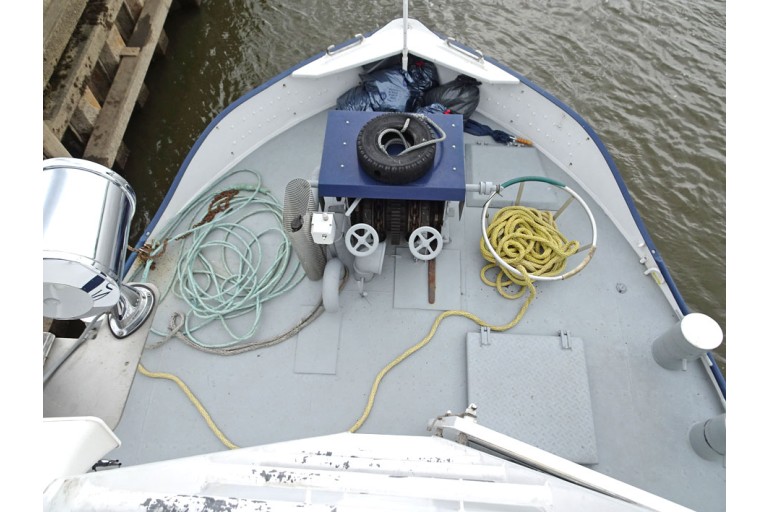

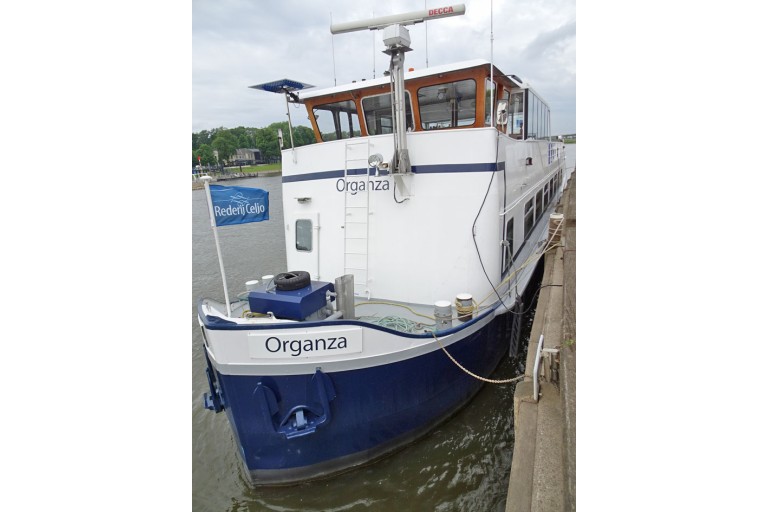

Anchor equipment: | manual anchor winch with electric motor 2x Klipp anchor 2x 44 m anchor chain in hawse-hole specified length(s) is/are approximate |

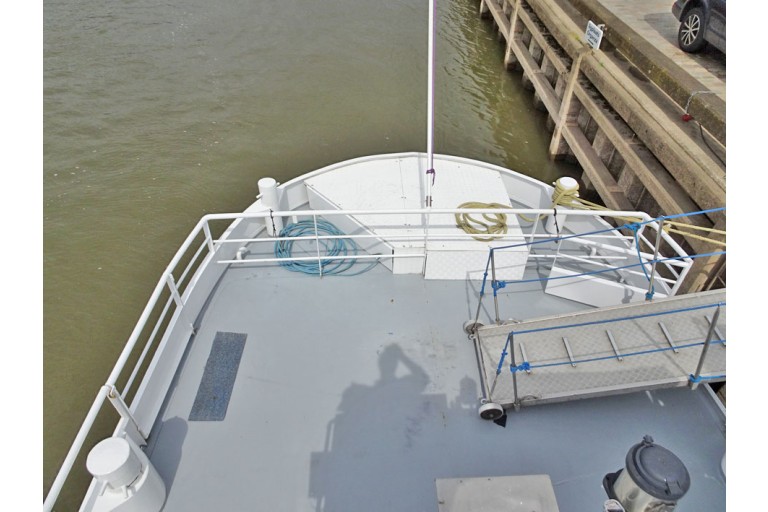

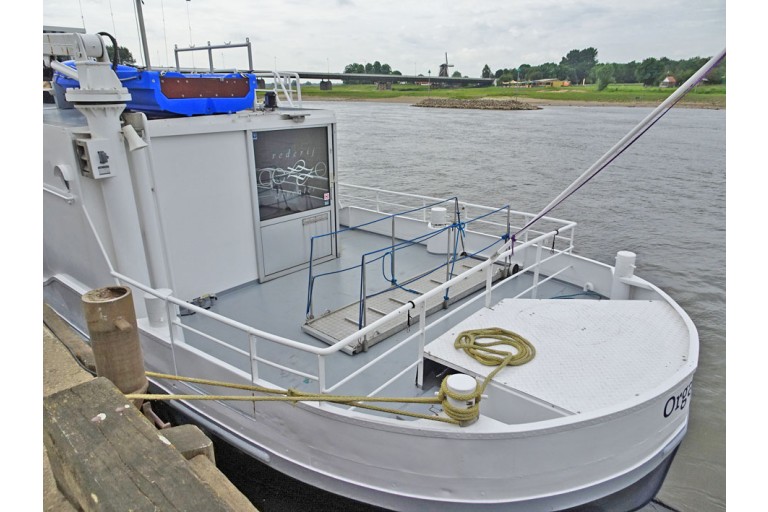

Searail / Pulpit: | guardrail around upperdeck guardrail around aftdeck |

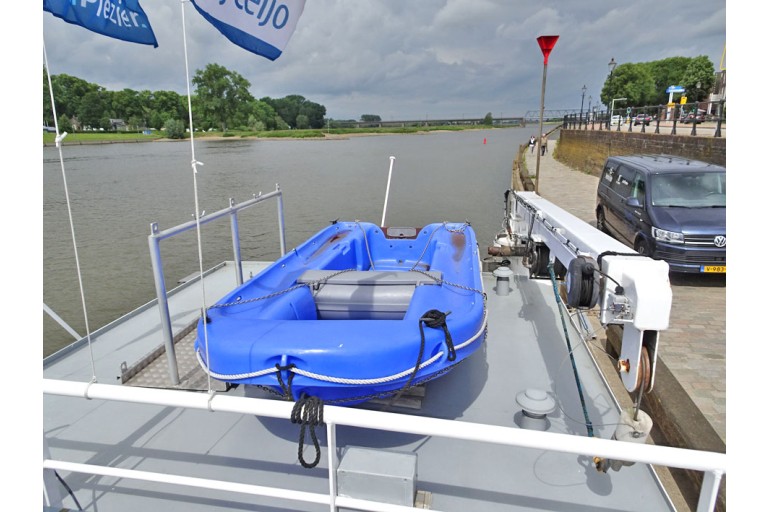

Dinghy: | Fun Yak Secu 12 dinghy Plastic outboard engine |
Davits: | hydraulic |
Safety: | fire extinguishers life buoys life jackets automatic fire extinguishing system AED fire alarm system |

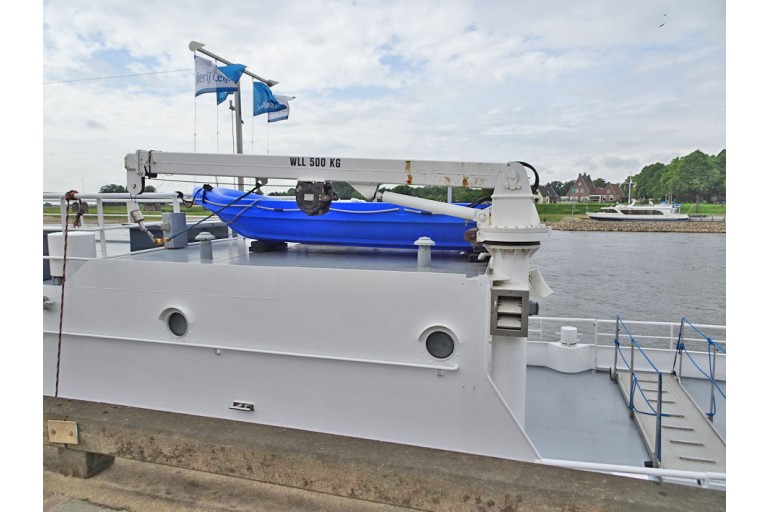

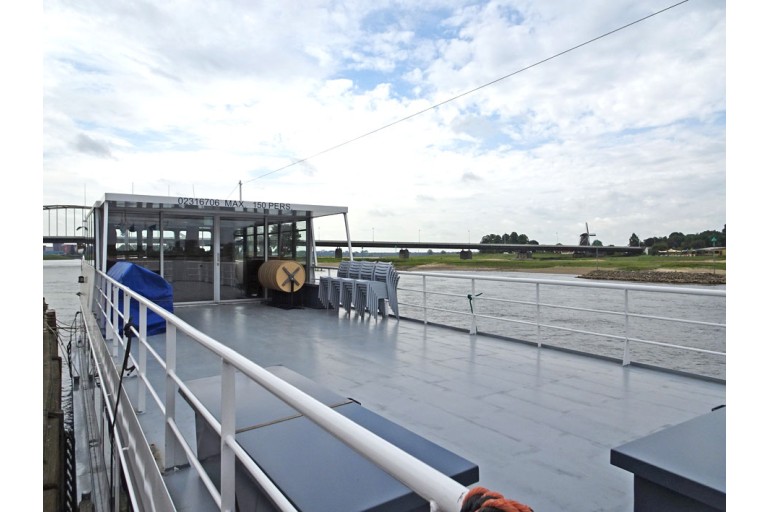

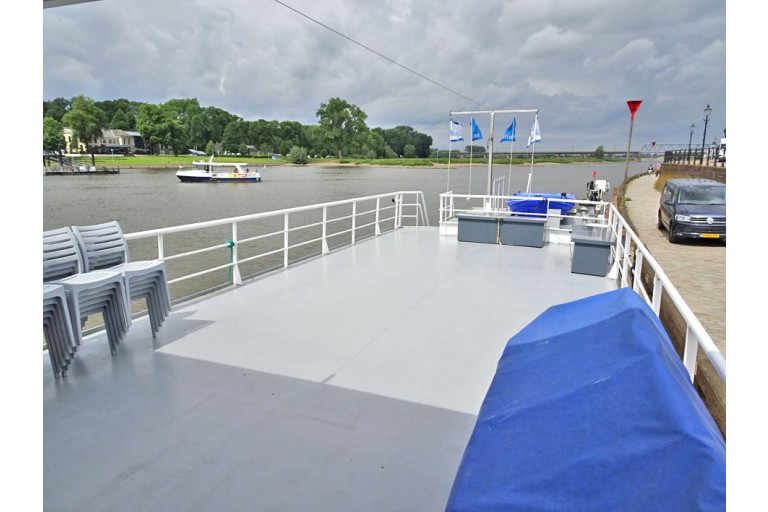

Additional information: | hydraulic crane 500 kg @ 6,25 m aluminium gangway set deck furniture deck lights Survey report of the underwatership is available (03-2021) sundeck |
