Ex German Navyvessel 24.13 Sold
Dimensions (m):
24.13 x 4.60 x 1.27
Ref. no.:
220303
Mooring:
Near Leiden, Netherlands
Construction year:
1940
Material:
wood
Vision Doeve Brokers

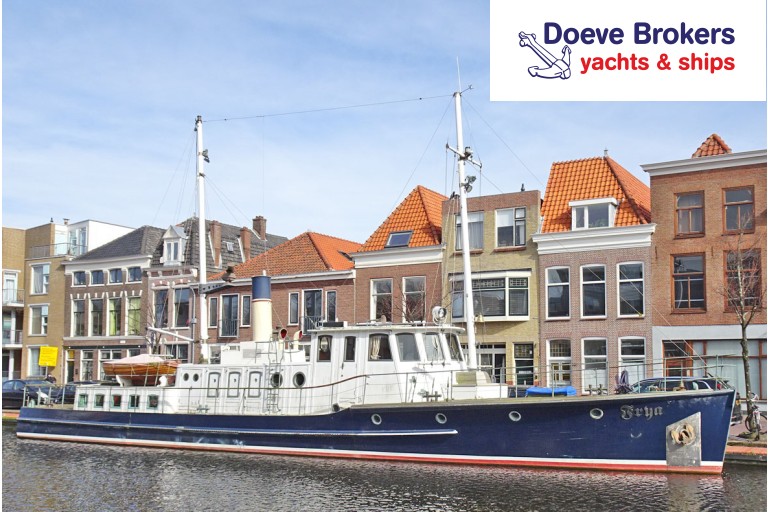

Former German naval ship (Torpedofangboot) that in the mid-80s was completely converted with the use of good and solid materials into a seagoing motor yacht / cruising Live aboard yacht. A beautiful interior is installed. In recent years the current owner has the vessel further prepared to start a journey to the south of Europe. We also think she is a great ship to use in the northern waters. For example, think of beautiful trips to Scandinavia. The vessel is not certified for inland waterways. There is some overdue maintenance on the outside, such as the paintwork of the superstructure and the wheelhouse roof where some wood needs to be replaced.
More information
General information
| Yard: | Shipyard Burmeister, D-Bremen |
| Rebuilt year: | 1989 |
| Hull shape: | deep-V |
| Hull material: | mahogany |
| Deck material: | teak |
| Superstructure material: | marine plywood & teak |
| Construction method: | diagonal (double) aftcabin forecabin deckhouse watertight bulkhead(s) transom stern rubbing strake around wooden ribs |
| Steering system: | hydraulic wheel & joystick |
| Windows: | brass window frames portholes hardwood outside doors |
| Airdraft (approx.): | 10,00 m mast installed estimated |
| Owner: | German owner |
| Registration: | German registered |
| Colour / Paint System: | blue hull white superstructure overdue maintenance see photographs last underwatership treatment 2020 |
| Certificates: | not certified |
| Suitable for / as: | suitable as a year round live- aboard coastal waters recreational vessel |
| Additional information: | classic motor yacht roomy foredeck forepeak with chain locker Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the coastal waters. |
Technical information
| Enginepower: | 342 Hp 251 kW |
| Engine brand: | MWM |
| Revolutions: | 1500 RPM |
| Engine model: | TRHS 518 A air started |
| Number of cylinders: | 8 |
| Construction year engine: | 1966 |
| Fuel: | diesel |
| Fuel tank (approx.): | 10000 litre 4 tank(s) |
| Cooling system: | intercooling dry exhaust insulated exhaust |
| Propulsion: | 3 blade propeller greased lubrication of propeller shaft greasing device |
| Gearbox: | Reintjes hydraulic WAV 281 |
| Heating: | Eberspächer Hydronic L-II central heating on diesel |
| Air conditioning: | present |
| Engine instruments: | present alarm system |
| Bow thruster: | hydraulic bow thruster 25 kW proportional |
| Electricity system: | 12 / 24 / 230 / 400 Volt 230 Volt shore power connection 400 Volt shore power connection with automatic changeover professionally installed system |
| Batteries: | 6x 230 Ah domestic batterie(s) 2x 60 Ah starter batterie(s) generator 1x 60 Ah starter batterie(s) generator 2x 80 Ah |
| Battery charger: | Victron Blue Smart battery charger 12/17 Mastervolt Chargemaster battery charger 24/60-3 Victron MultiPlus combi inverter/charger 24/3000/70 |
| Genny: | Kohler whisper set 33,8 kVA, 230/400 Volt, 1500 RPM Kohler whisper set 8 kVA, 230 Volt, 1500 RPM running hours (approx.) 1150 |
| Inverter: | Victron MultiPlus combi inverter/charger 24/3000/70 Mobitronic inverter 12/207 |
| Fresh water tank (approx.): | 2000 litre 3 stainless steel tank(s) |
| Water pressure system: | hydrophore pump |
| Fresh water filter system: | UV fresh water filter system |
| Hot water system: | Rheinstrom boiler/water calorifier via 230 Volt and engine cooling system & through the central heating |
| Holding tank (approx.): | present not connected |
| Diesel waterseparator: | present |
| Engineroom: | insulated engineroom |
| Bilge pump: | general service pump with manifold also deckwash pump & 4x loose pump |
| Gas system: | yes, bottle(s) in bottle box on deck does not fully meet current safety requirements |
| Additional information: | air compressor air bottle LED lightning |
Accommodation
| Interior: | mahogany finish teak finish teak floor(s) Plywood painted white see photographs |
| Cabins: | 2 cabins |
| Berth: | Forward: 2x 1-pers Midships: 1x 2 pers |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | Forward: shower cubicle mixer tap with hot & cold running water washbasin with mixer tap and hot & cold running water in 1 area together with the toilet Amidship: shower cubicle mixer tap with hot & cold running water washbasin with mixer tap and hot & cold running water in 1 area together with the toilet |
| Toilet / Heads: | 1x Vacuum flush toilet 1x pumptoilet |
| Galley: | U-shape galley |
| Cooker: | 4-burner hob on gas |
| Oven: | Miele electric oven |
| Fridge / Refrigerator: | 2x present |
| Worktop: | hardwooden worktop |
| Washbasin: | stainless steel sink |
| Water tap: | mixer tap with hot & cold running water |
| Headroom (approx.): | salon (approx.) 2,04 m corridor / walkthrough (approx.) 1,98 m galley (approx.) 2,04 m wheelhouse (approx.) 1,95 m guest cabin (approx.) 1,94 m bathroom / toilet aft (approx.) 1,93 m ownerscabin (approx.) 1,90 m bathroom / toilet in the front (approx.) 1,97 m |
| Additional information: | washing machine useful as live-aboard see photographs |
Navigation equipment
| Navigation equipment: | Raytheon Ray430 intercom Raytheon Raypilot 650 autopilot Raytheon Nav398 GPS Sailor RT2047 VHF Raytheon Ray152E SSB transceiver Philips Dantronik GPS Robertson windset Autohelm rudder indicator navigation lights navigation computer ships bell search light |
Rigging and sails
| Rigging type: | ketch rigged |
| Mast: | 2x wooden mast |
| Lowerable: | no |
| Boom: | wooden boom |
| Winches: | 2x halyard winch |
| Sails: | 1 steadysail |
Equipment
| Anchor equipment: | cabestan hydraulic anchor winch Klipp anchor anchor chain in hawse-hole Stainless steel bow plate |
| Searail / Pulpit: | searail |
| Dinghy: | 1 dinghy |
| Davits: | with boom electric |
| Safety: | smoke detector(s) fire extinguishers life jackets liferaft |
| Additional information: | hard wooden skylight hardwooden gangway deck lights steering chair sundeck |
