Motortjalk 17.60 Sold
Dimensions (m):
17.60 x 3.79 x 0.90
Ref. no.:
220302
Mooring:
Near Amsterdam, Netherlands
Construction year:
1906
Material:
steel
Vision Doeve Brokers

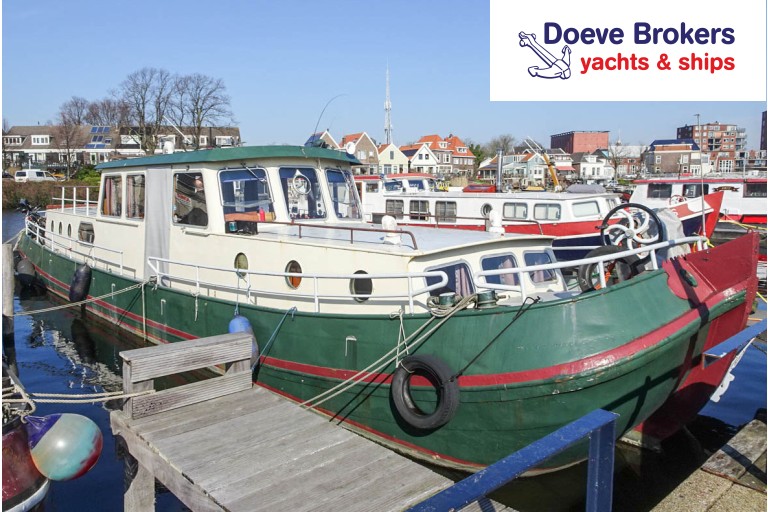

Former inland cargo vessel that has been completely refurbished into a comfortable sailing live aboard Dutch Barge with amidships a spacious helmsman's salon with L-seat. The wheelhous is equipped with side doors which makes mooring very easy. This makes this an excellent barge for solo travel. In the aft cabin is the galley and a (sleeping) sofa with TV. The bathroom and owner's cabin are located in the fore cabin. There is a spacious sun deck that can be accessed via the aft deck. A large part of the underwater hull was replaced and provided with 6 mm steel in 2017. The necessary inverters, battery chargers, generator and navigation equipment are also present on board. A blackwater tank has already been installed. In other words, a complete Dutch Barge with which one can embark on wonderful journeys.
More information
General information
| Yard: | Shipyard Barkmeijer, NL-Zuidhorn |
| Hull shape: | flatbottom |
| Hull material: | iron/steel & steel |
| Deck material: | steel |
| Superstructure material: | steel |
| Construction method: | riveted new steel is welded rubbing strake around bulwark around aftcabin |
| Steering system: | mechanical wheel wooden rudder attached rudder |
| Windows: | aluminium windows frames hardwood outside doors bronze portholes |
| Displacement (approx.): | 30 metric tons estimated |
| Airdraft (approx.): | 2,95 m |
| Owner: | British owner |
| Registration: | British registered (SSR) |
| Colour / Paint System: | green hull red striping white superstructure last underwatership treatment (2017) see photographs |
| Certificates: | no certificate requirement |
| Suitable for / as: | inland waterways recreational vessel suitable as a year round live- aboard |
| Additional information: | Underwatership is partly replaced. (2017) Hull shape is suitable for drying out. classic motor yacht spacious aftdeck forepeak with chain locker Great vessel for cruising on the French canals and rivers. Great vessel for cruising on the European canals and rivers. |
Technical information
| Enginepower: | 195 Hp 143 kW |
| Engine brand: | DAF |
| Engine model: | 1160 M |
| Number of cylinders: | 6 |
| Construction year engine: | 1979 into operation |
| Running hours (approx.): | 7500 on the hour counter |
| Fuel: | diesel |
| Fuel tank (approx.): | 2000 litre 1 steel tank(s) |
| Cooling system: | closed cooling pipes wet exhaust |
| Propulsion: | 3 blade propeller greased lubrication of propeller shaft |
| Gearbox: | Twin Disc 509 hydraulic |
| Heating: | Eberspächer hot air heating on diesel & stove on diesel |
| Bow thruster: | electric bow thruster 24 Volt |
| Electricity system: | 12 / 24 / 230 Volt 230 Volt shore power connection |
| Batteries: | 4x 120 Ah batteries 1x 52 Ah starter batterie(s) generator |
| Battery charger: | Victron Skylla battery charger 24/50 Banner Trac Bull battery charger 24/20 |
| Battery isolator: | battery isolator |
| Genny: | Sailors Silent whisper set 6 Hp |
| Inverter: | Waeco PerfectPower PP2004 inverter 24/2000 Wenchi's sinus inverter 24/600 |
| Solar panels: | 4x solar panel |
| Fresh water tank (approx.): | 2000 litre 2 steel tank(s) |
| Water pressure system: | hydrophore pump |
| Hot water system: | boiler/water calorifier (230 Volt) 50 litre |
| Holding tank (approx.): | 295 litre 1 steel tank(s) |
| Diesel waterseparator: | diesel waterseparator |
| Bilge pump: | 3x electric pump 24 Volt |
| Gas system: | yes, bottle(s) in bottle box on deck does not fully meet current safety requirements |
| Additional information: | partly LED lightning air compressor |
Accommodation
| Interior: | various materials have been used see photographs |
| Insulation: | partly |
| Cabins: | 1 cabin |
| Berth: | cabin: 1x 2-pers Sofa bed: 1x 2-pers |
| Lay-out plan (not to scale): | see attachment |
| Bathroom: | shower thermostat tap washbasin with mixer tap and hot & cold running water in 1 area together with the toilet |
| Toilet / Heads: | electric toilet |
| Galley: | L-shape galley |
| Cooker: | 4-burner hob on gas |
| Oven: | Severin electric oven |
| Microwave: | Sharp microwave |
| Fridge / Refrigerator: | present 230 Volt |
| Freezer: | small ice compartment |
| Worktop: | plastic worktop |
| Washbasin: | stainless steel sink |
| Water tap: | mixer tap with hot & cold running water |
| Entertainment: | flatscreen TV |
| Headroom (approx.): | ownerscabin (approx.) 2,03 m corridor / walkthrough (approx.) 2,02 m bathroom / toilet (approx.) 2,06 m wheelhouse (approx.) 2,08 m galley (approx.) 2,00 m salon (approx.) 2,00 m |
| Additional information: | cutlery and crockery washing machine tumble dryer |
Navigation equipment
| Navigation equipment: | M-Tech MT-500 VHF with DSC Icom IC-M401 VHF Clipper Navtex Garmin 120 XL GPS Furuno GP-31 GPS Entel portable VHF 2x BT Freeway Walkie Talkie / Handheld transceiver / Handfunkgerät / Talkie-walkie 2x Binatone MR 250 Walkie Talkie / Handheld transceiver / Handfunkgerät / Talkie-walkie search light clearviewscreen horn radar reflector navigation lights |
Equipment
| Anchor equipment: | manual anchor winch warping drum anchor with chain in hawse-hole Aft: anchor with rope |
| Searail / Pulpit: | searail on bulwark |
| Dinghy: | present inflatable dinghy |
| Davits: | with boom manual winch |
| Safety: | 4 fire extinguishers 4 life jackets 2 life buoys |
| Additional information: | gangway ladder spare parts 2x Bike(s) steering chair mosquito nets for windows |
