Dutch Barge 16.89 Sold
Dimensions (m):
16.89 x 3.67 x 1.40
Ref. no.:
210301
Mooring:
Near Rotterdam, Netherlands
Construction year:
1910
Material:
steel
Vision Doeve Brokers

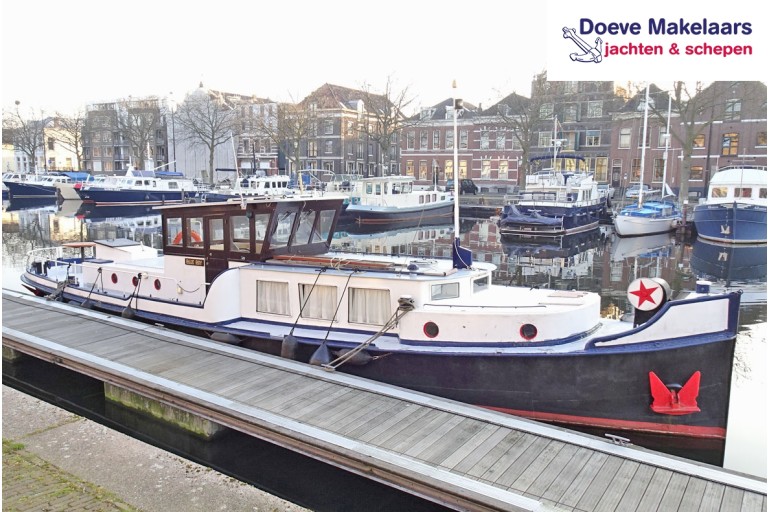

Former inland Amsterdam Tugboat / management vessel that helped, in that capacity, during the 1953 floods in NL-Zeeland and was subsequently converted into a bunker barge for in the port of Rotterdam. Afterwards she has been converted into a pleasant recreational vessel. The dimensions make her very suitable for discovering the European inland waterways including France, Belgium, Germany and the Netherlands. Equipped with 2 cabins, galley, salon, shower / toilet room and a wheelhouse, there is plenty of space on board.
More information
General information
Yard: | Shipyard 't Kromhout, NL-Amsterdam |
Hull shape: | round bottom |
Hull material: | iron/steel |
Deck material: | steel |
Superstructure material: | steel |
Construction method: | riveted new steel is welded rubbing strake around aft cabin below |
Steering system: | mechanical wheel |
Windows: | aluminium windows frames wood window frames |
Displacement (approx.): | 25 ton |
Airdraft (approx.): | 3,20 m |
Owner: | Dutch owner |
Registration: | Dutch registered B-registered Costs for the change of ownership and / eventually deletion are for purchasers amount. |
Colour / Paint System: | black hull white bulwark white superstructure last underwatership treatment 2018 |
Suitable for / as: | inland waterways recreational vessel |
Additional information: | classic motor yacht spacious aftdeck Hull shape is suitable for drying out. Great vessel for cruising on the European canals and rivers. Great vessel for cruising on the French canals and rivers. |
Technical information
Enginepower: | 105 Hp 77 kW |
Engine brand: | DAF |
Revolutions: | 2400 RPM |
Engine model: | DD 575 |
Number of cylinders: | 6 |
Construction year engine: | 1964 |
Overhaul engine: | 1991 reconditioned installed |
Running hours (approx.): | 5000 on the hour counter |
Fuel: | diesel |
Fuel tank (approx.): | 1x 700 litre steel tank(s) |
Cooling system: | intercooling wet exhaust |
Propulsion: | 3 blade propeller greased lubrication of propeller shaft |
Gearbox: | PRM hydraulic |
Speed (approx.): | 7 knots cruising speed at 1800 RPM 9 knots top speed |
Heating: | Webasto Air Top Evo 55 hot air heating on diesel |
Bow thruster: | Drinkwaard electric bow thruster 13 Hp 24 Volt |
Electricity system: | 12 / 24 / 230 Volt 230 Volt shore power connection simple electric system |
Batteries: | 2x 120 Ah starter batterie(s) 2x 140 Ah domestic batterie(s) (02-2021) 2x 180 Ah bow thruster batterie(s) |
Battery charger: | Victron Centaur battery charger 12/40 Mastervolt battery charger 24/12 |
Battery isolator: | Victron Argofet battery isolator |
Earth-leakage breaker: | present |
Inverter: | Victron inverter 12/800 |
Solar panels: | 2x solar panel |
Fresh water tank (approx.): | 1200 litre 4 plastic tank(s) |
Water pressure system: | hydrophore pump |
Hot water system: | boiler/water calorifier via 230 Volt and engine cooling system |
Holding tank (approx.): | present 80 litre not connected |
Bilge pump: | electric pump 230 Volt also deckwash pump |
Gas system: | yes, bottle(s) in bottle box |
Accommodation
Interior: | various materials have been used simple interior see photographs |
Insulation: | partly |
Cabins: | 2 cabins |
Berth: | Forward: 2x 1-pers in V Aft: 2x 1-pers Dinette: 1x 2-pers |
Lay-out plan (not to scale): | see attachment |
Bathroom: | shower thermostat tap in 1 area together with the toilet washbasin with mixer tap and hot & cold running water |
Toilet / Heads: | electric toilet |
Cooker: | 3-burner hob on gas stainless steel |
Oven: | electric oven |
Fridge / Refrigerator: | Indel fridge / refrigerator 12 Volt |
Freezer: | small ice compartment |
Worktop: | stainless steel worktop |
Washbasin: | stainless steel sink |
Water tap: | mixer tap with hot & cold running water |
Entertainment: | flatscreen TV radio/CD player |
Headroom (approx.): | forward (approx.) 1,85 m galley (approx.) 1,90 m salon (approx.) 1,87 m wheelhouse (approx.) 1,92 m aftcabin (approx.) 1,65 m |
Additional information: | The vessel will be delivered as without the private goods like furniture, clothing, artwork and tools. |
Navigation equipment
Navigation equipment: | ICOM VHF rudder indicator Clipper depth / echosounder AdvanSea T.50 chartplotter / GPS compass Cobra MR HH325 portable VHF 2x window wiper horn navigation lights |
Rigging and sails
Mast: | lantern mast steel |
Lowerable: | yes manual |
Equipment
Anchor equipment: | manual anchor winch Pool anchor anchor chain anchor cable & stern anchor |
Boarding ladder: | present |
